Rotary Premade Pouch Machine for Gummy Snacks: Scaling Multi-Format Yields via Dimpled Combination Weighing

1.How Do We Choose the Right Pouch Machine for Different Bag Sizes?

Executing multi-format packaging runs on legacy equipment standardly mandates intensive manual changeover cycles and redundant tooling inventory, creating significant line downtime.

To optimize production flexibility, the Model 200 Rotary Premade Pouch Packaging Machine System was deployed. This automated framework encompasses a versatile physical envelope capable of managing both 2.5 oz (70g) and 20 oz (560g) premade zipper pouch specifications seamlessly.

Format transitions do not require dedicated changeover components; instead, gripper width adjustments are executed via integrated servo-driven software parameters and manual indexing controls.

APKRL200-G Rotary Premade Pouch Machine adjustment

Initial technical consultations were initiated following an international procurement inquiry regarding high-speed gelatin confection handling. Rather than executing standard commercial price quotations, a comprehensive application engineering audit was conducted.

Crucial operational variables, including exact pouch material laminations, target volumetric fill weights, precise dimensional drawings, and target linear line velocities, were systematically documented to engineer an optimal turnkey line integration strategy.

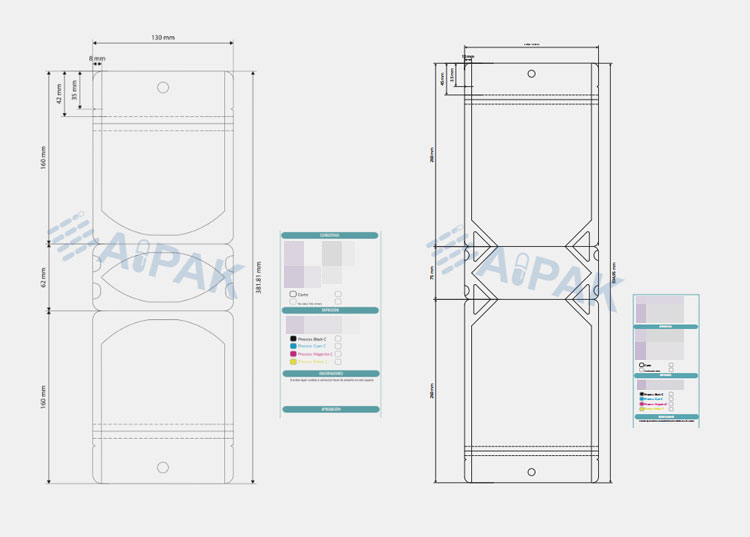

Gummy size and pouch size from customer

The client sent me their pouch drawings. They use two sizes of bags. One bag holds 2.5 oz. The other bag holds 20 oz. Both bags are premade zipper pouches. The client wants a speed of about 30 bags per minute.

Choosing the Model 200

I looked at their bag sizes. I recommended the Model 200 Rotary Premade Pouch Machine. This machine fits their needs perfectly.

No Extra Parts Needed

Many machines need extra parts to change bag sizes. Our Model 200 does not need extra parts. Both bag sizes fit inside the normal range of the machine. You only need to turn a handle on the machine. This changes the gripper width. It is very easy to adjust.

This flexibility makes the machine perfect for growing snack brands.

2.Why Do Sticky Gummies Need a Special Weighing System?

Do your gummies stick to the metal parts? Sticky products cause bad weights and clogs. We use a special design to fix this bad problem.

We use a 10-head multi-head weigher with dimpled plates for gummy snacks. The dimpled surface works like a honeycomb. It reduces the contact area between the candy and the metal. This completely stops the gummies from sticking together.

Dimpled plate multi-head weigher for sticky gummies

Gelatin and pectin-based confections possess high surface energy and moisture levels, rendering them highly susceptible to interfacial adhesion when in contact with smooth materials.

Standard smooth-wall stainless steel weighers provoke systemic material accumulation, forming dense agglomerations along the chute walls that induce severe weight variations and line stoppages.

To mitigate this surface drag, a specialized 10-head electronic combination weigher featuring custom-milled dimpled plates was integrated. By introducing a rigid, textured surface profile, the contact surface area between the adhesive product and the metal substrate is reduced significantly.

How It Works

The microscopic geometric protrusions of the dimpled pattern establish continuous micro-air pockets beneath the moving product bed.

Consequently, the moving gummy candies only interact with the elevated apex points of the textured surface rather than experiencing full interfacial contact with a flat plane. This mechanical friction reduction prevents kinetic energy loss, ensuring a rapid, uniform downward sliding velocity into the terminal discharge hoppers.

This simple change makes a huge difference in daily work. The client can run the machine all day long. They do not need to stop the machine to clean sticky messes. This keeps their production speed very high.

3.What Does a Complete Gummy Packing Line Include?

Are you tired of buying machines from different places? Connecting them is a real nightmare. A full system from one supplier is the best choice.

A complete gummy packaging line includes four main parts. It has a Z-type bucket elevator to lift the product. It has a 10-head weigher to measure the gummies. It has a working platform. Finally, it has the rotary premade pouch machine.

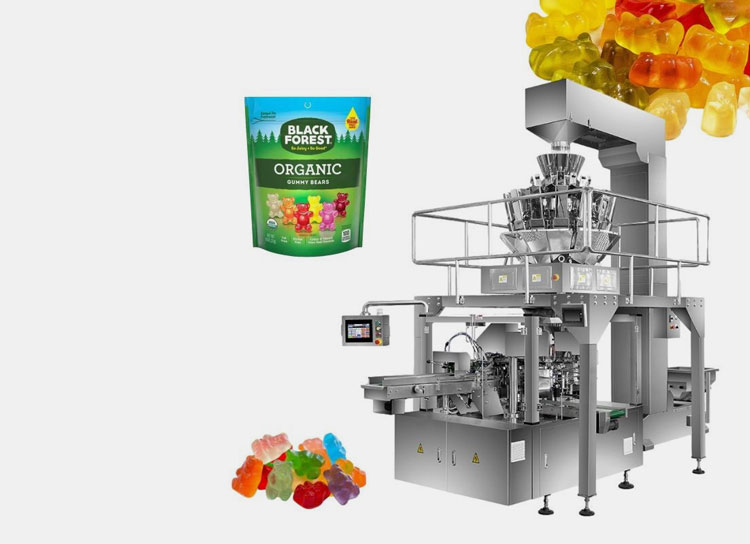

Complete gummy packaging line layout

Sourcing fragmented packaging components from disparate equipment vendors poses substantial operational risks, frequently resulting in electrical synchronization errors, structural misalignment, and protocol communication failures during field installation.

To ensure seamless turnkey execution, a fully unified line layout was engineered, guaranteeing complete mechanical, electrical, and pneumatic integration across all primary system vectors.

Z-Type Bucket Elevator

First, we need to move the heavy gummies up high. We use a Z-type bucket elevator for this job. It lifts the snacks very gently. It does not crush or damage the soft gummies.

The Working Platform

The multi-head weigher needs to sit high above the pouch machine. We build a strong platform for this. The platform holds the heavy weigher safely. It gives workers a safe place to stand. Workers can easily clean the weigher on this platform.

Full Line Layout

Here is what the full system includes:

This complete setup ensures a smooth process. The client gets a fully tested line. We test all these parts together in our factory. The client can start packing gummies on the very first day.

4.How Do We Plan the Factory Layout for Tall Packaging Machines?

Is your factory ceiling too low for big machines? Buying equipment that does not fit is a costly mistake. We always check your room space first.

We send a detailed layout drawing before making the machine. A standard gummy packing line needs a ceiling height of 3.8 meters. We can change the design to fit your room if your roof is lower.

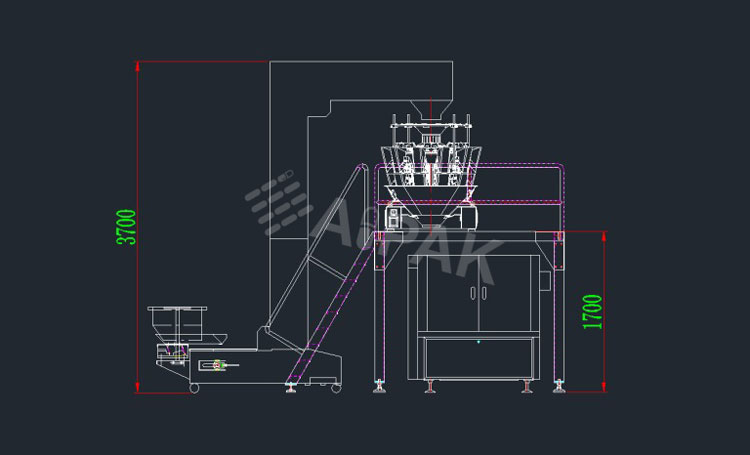

Packaging line factory layout drawing

Space is a very important detail in a factory. Many buyers forget to check their ceiling height. A packaging line with a multi-head weigher sits very high up. I sent the machine layout drawing to the client right away. I wanted to avoid any size problems later.

The 3.8 Meters Rule

I told the client about the height rule. This complete line needs a factory height of at least 3.8 meters. The Z-elevator needs this tall space. It must drop the gummies down into the top of the weigher.

Custom Solutions for Low Ceilings

To accommodate restrictive facility architecture and low ceiling clearance limitations, custom structural configurations can be engineered by the technical division.

In environments where standard vertical Z-type bucket elevators exceed available vertical space, an alternative horizontal incline cleated conveyor belt system can be integrated, optimizing floor layout configurations without compromising linear product feed velocity.

The client checked their factory space. They told me their ceiling was very high. The standard machine would fit perfectly inside their room. Checking this size early stops very big problems. It saves time and money.

5.Why Do Project Videos Help You Make the Right Choice?

Do you worry if a supplier can really do the job? Talk is cheap. Seeing a real working machine is the only way to trust them.

We always share videos of similar successful projects with our clients. Seeing a rotary pouch machine packing sticky gummies in real life proves our experience. This visual proof helps you feel safe about your investment.

Customer product sample manufacured by our machine

Buying large industrial equipment is a big decision. You need to know you are working with real experts. We agreed on all the technical details first. Then I wanted to prove our skill. I wanted to give the client total peace of mind.

Sharing Real Experience

I sent the client several videos. These videos showed similar gummy packaging lines we built before. The videos showed the dimpled weigher working smoothly. They showed the rotary pouch machine opening and sealing zipper bags perfectly.

Building Trust

The client watched all the videos. They saw our clear understanding of their exact needs. They saw real proof of our high quality. They felt very satisfied with our professional service.

We showed real experience. The client placed the order right away. We solved every problem quickly. We do not just sell standard machines. We deliver proven and customized packaging solutions. We build long-term trust with our global clients.

Conclusion

A rotary premade pouch machine with a dimpled weigher is perfect for sticky gummies. We provide complete and custom lines to ensure your packaging process is fast and reliable.
