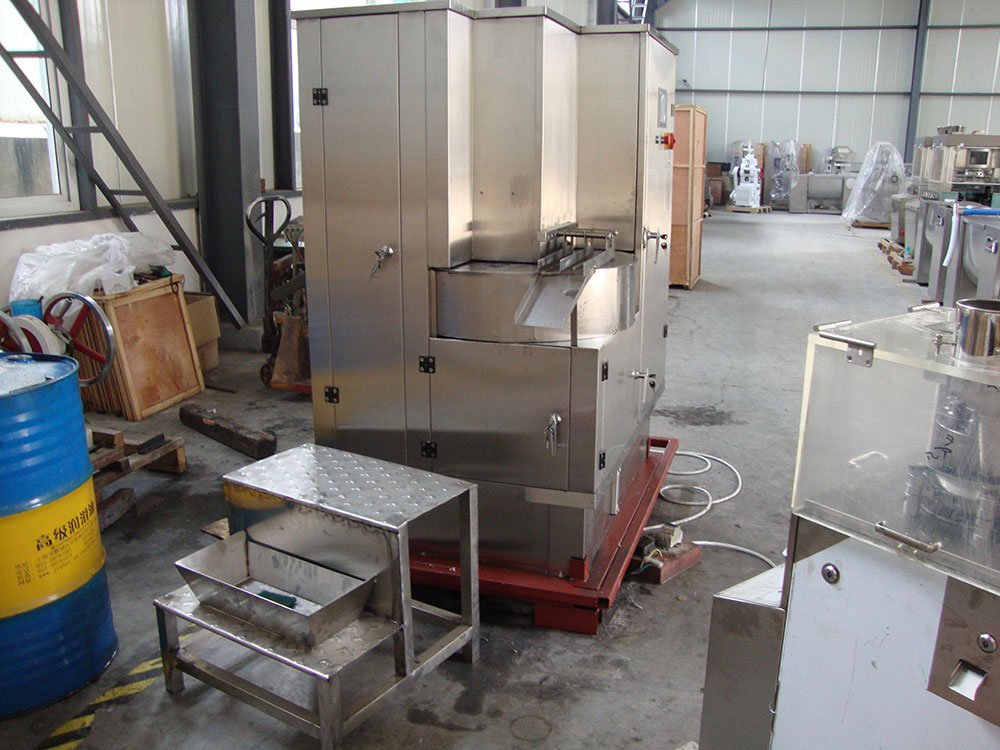

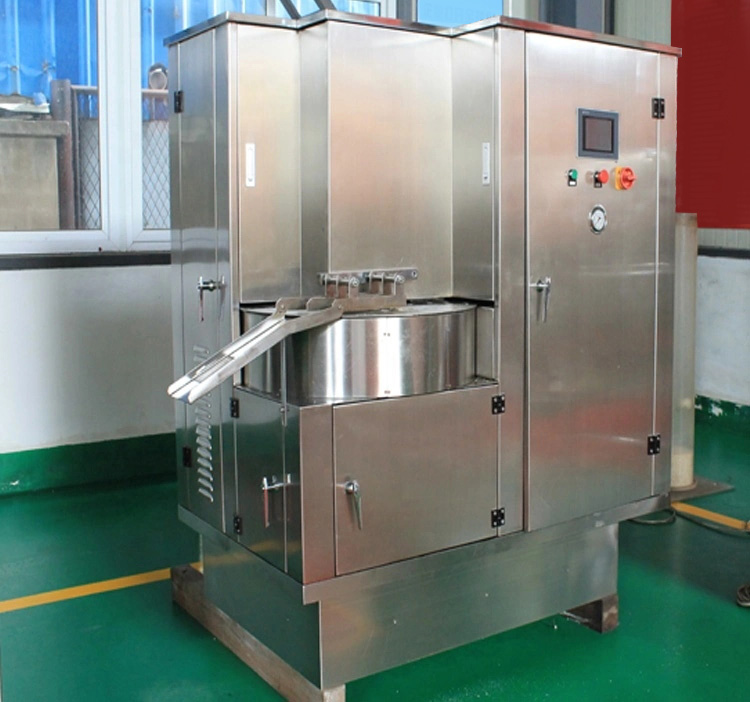

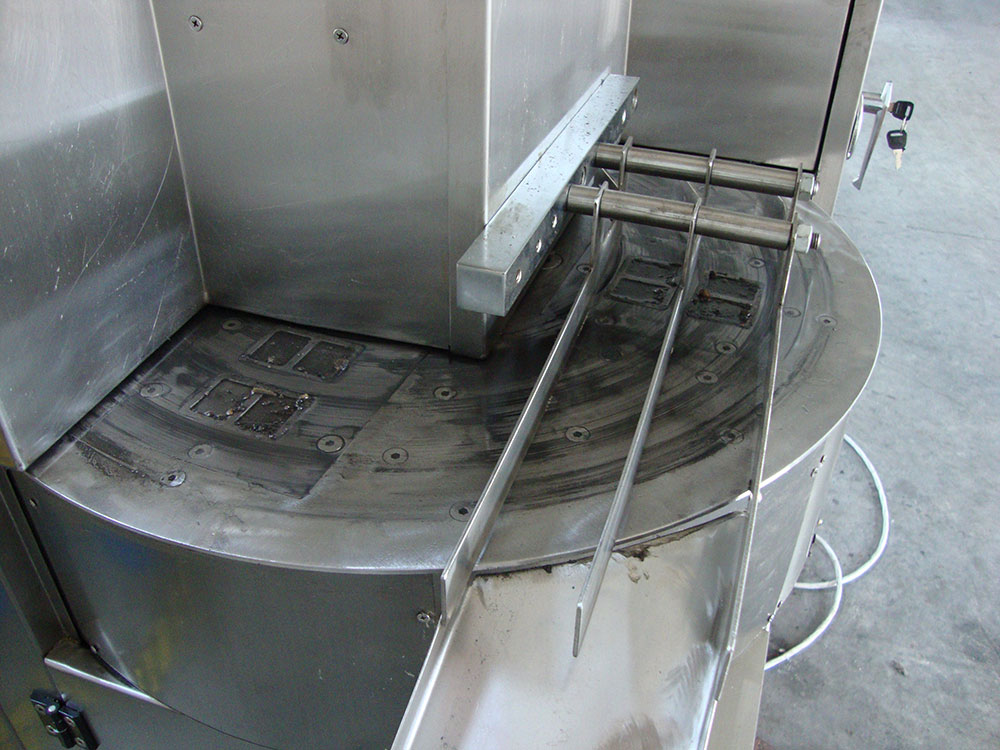

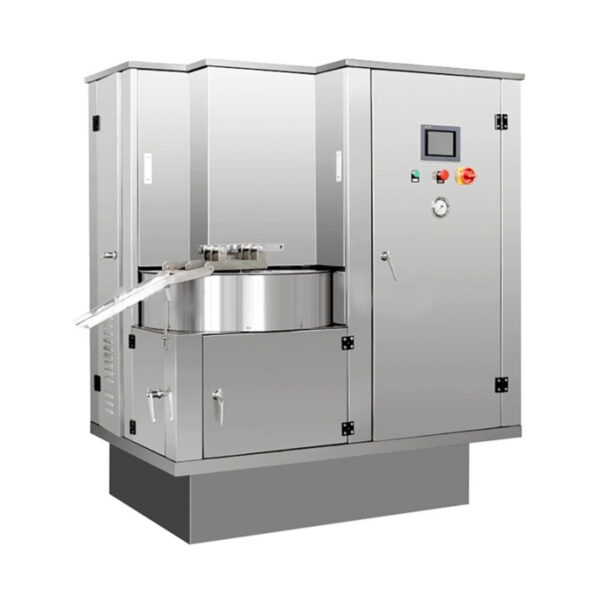

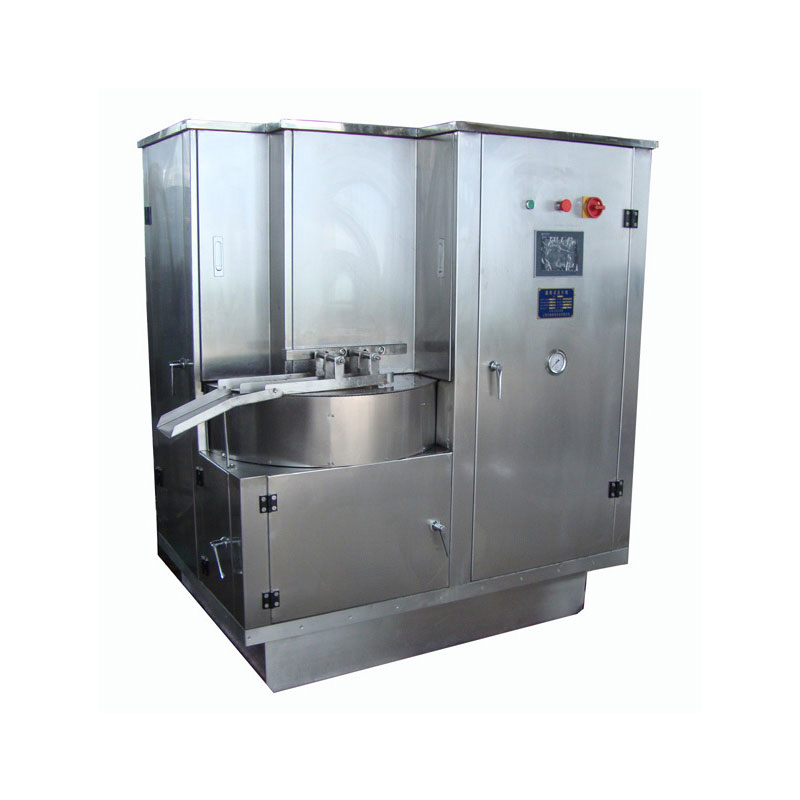

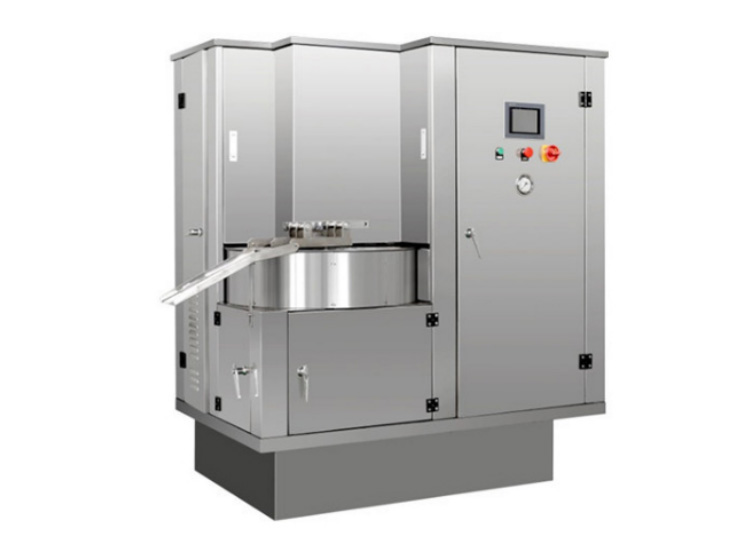

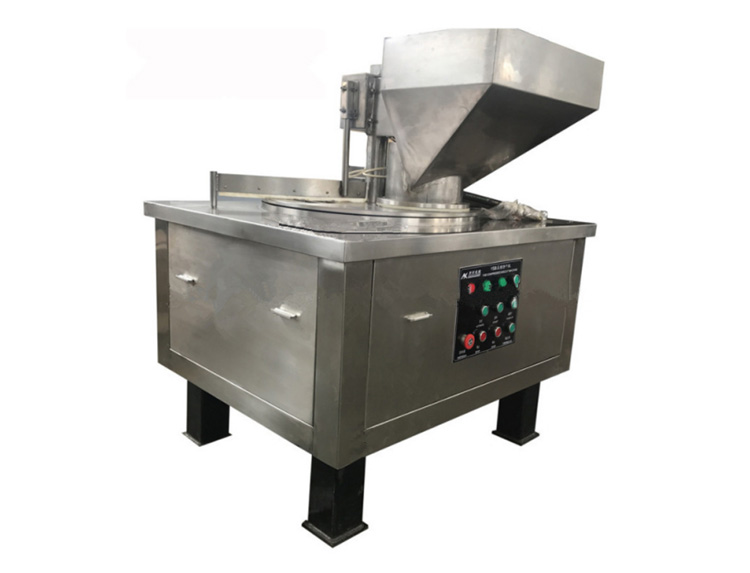

China unique ZPW-4-4 Rotary Block Press (compressed biscuit making machine)

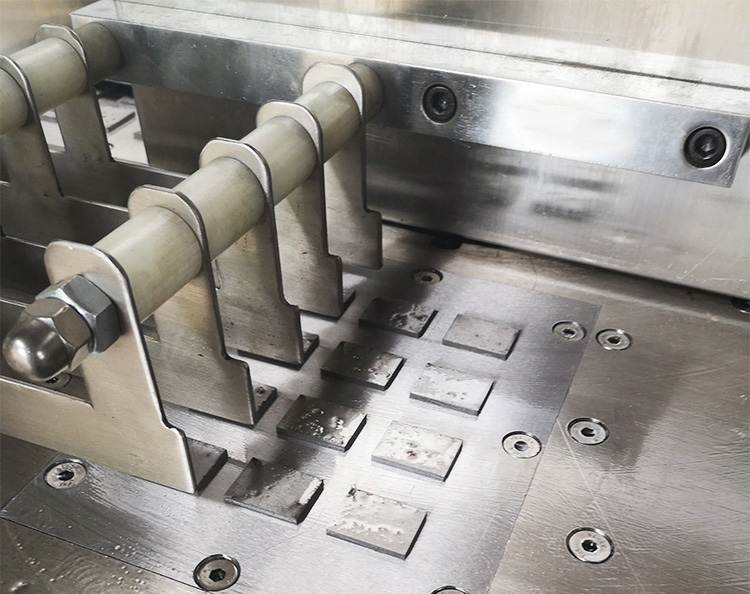

This rotary tablet press is a type of food machinery, which is used to produce compressed biscuits for military and civilian use. Compressed biscuit production involves five main processes, that is, biscuit baking, powderizing, mixing, compressing and packaging. The rotary tablet press plays an important role in making compressed biscuits.

FEATURE

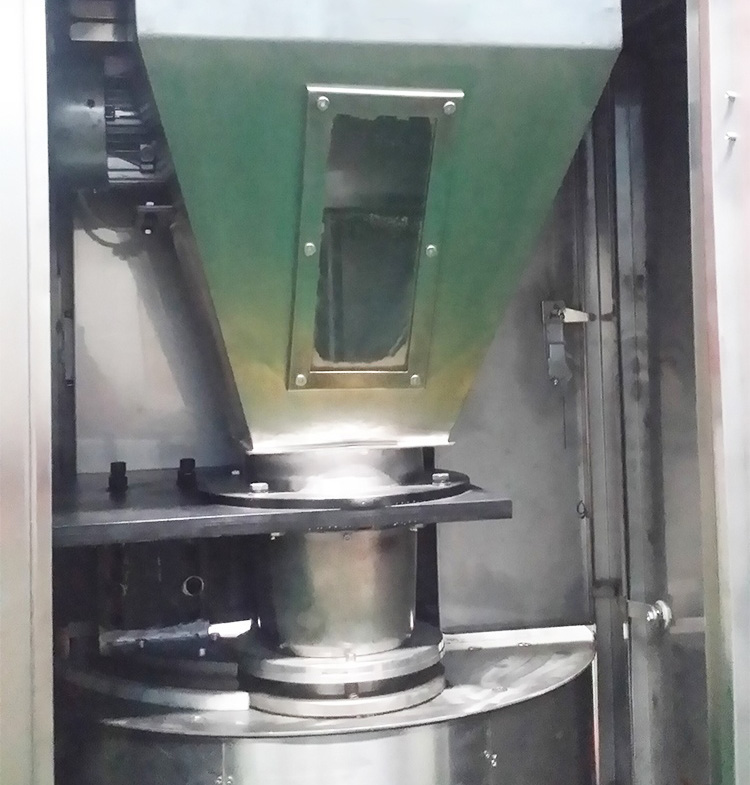

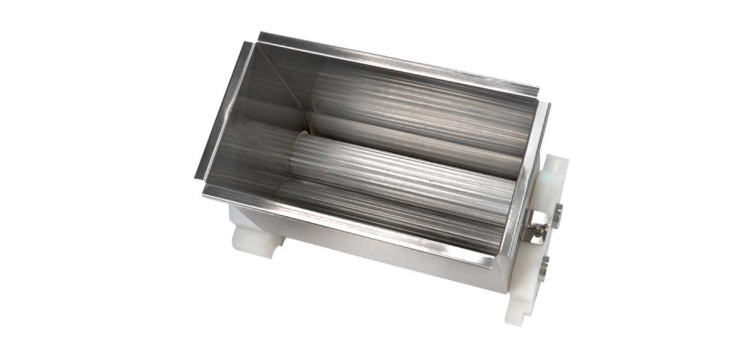

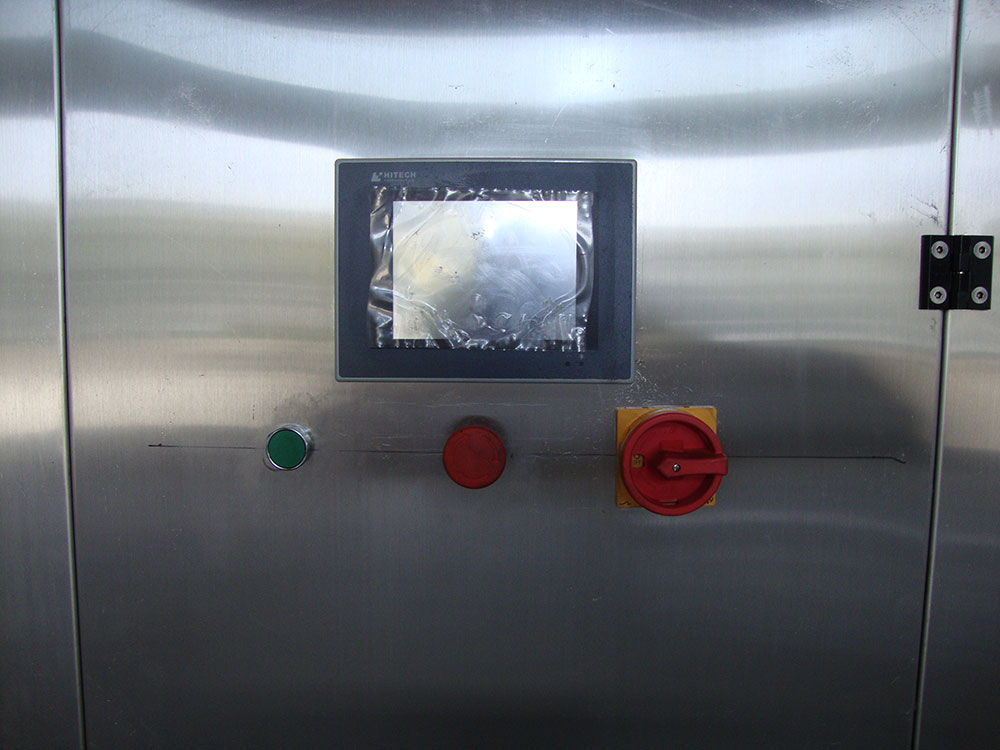

This rotary tablet press is primarily composed of mechanical structure, hydraulic system, electric drive unit and electronic control unit. In addition, it is equipped with stainless steel hopper and other devices. Except material feeding, the machine performs other operations automatically. So, it can realize full automation if equipped with an automatic feeding device.

DATA SHEET

TYPE ZPW4-4 ZPW4-2
Max. Compression Pressure 180-250 180-250
Max. Dia. of Tablet(mm) According to customer’s requirement According to customer’s requirement
Max. Filling Depth (mm) 40 (Adjustable) 40 (Adjustable)
Max. Thickness of Tablet(mm) 10-30 10-30
Maximum Working Diameter (mm) 1030 750
Turret Speed(r/min) 7 8
Production Capacity(pc/h) 6720 3840
Motor(Kw) 7.5-11KW 7KW
Overall Size(mm) 1750*1200*1810 1240*920*1710
Net Weight(Kg) 3000 200
