Custom Confectionery Compression: Multi-Cavity Tooling Design and Alignment Solutions for Dual-Shape Confectionery Lines

1.How Do You Design Custom Tooling for Dual-Shape Candies?

Are you struggling to get exact candy shapes? Poor design leads to broken tablets. We solved this problem through careful custom tooling design.

Designing custom tooling requires precise 3D modeling and multiple design revisions. For dual shapes, the punch and die must hold two distinct cavities in a single press cycle. This design ensures equal powder distribution and uniform compression force.

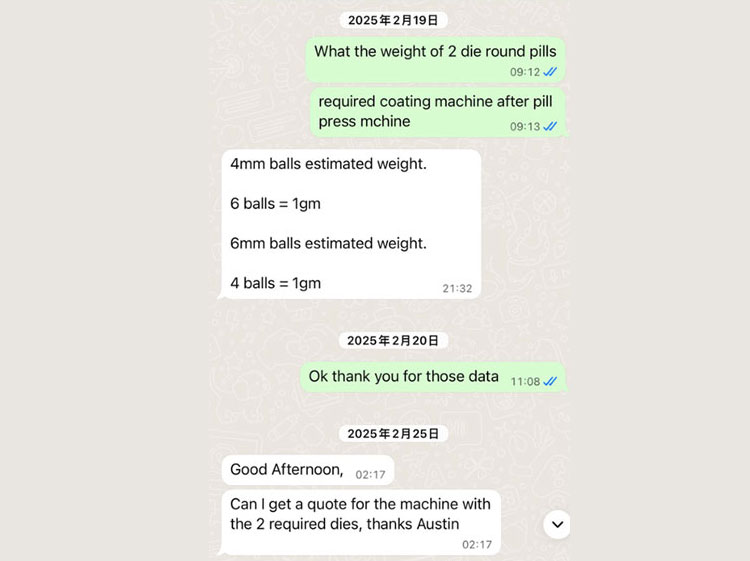

Custom tooling design for tablet press

Scaling output capacities for heterogeneous dessert components demands transitioning from standard single-tip setups to high-density multi-cavity rotary toolsets.

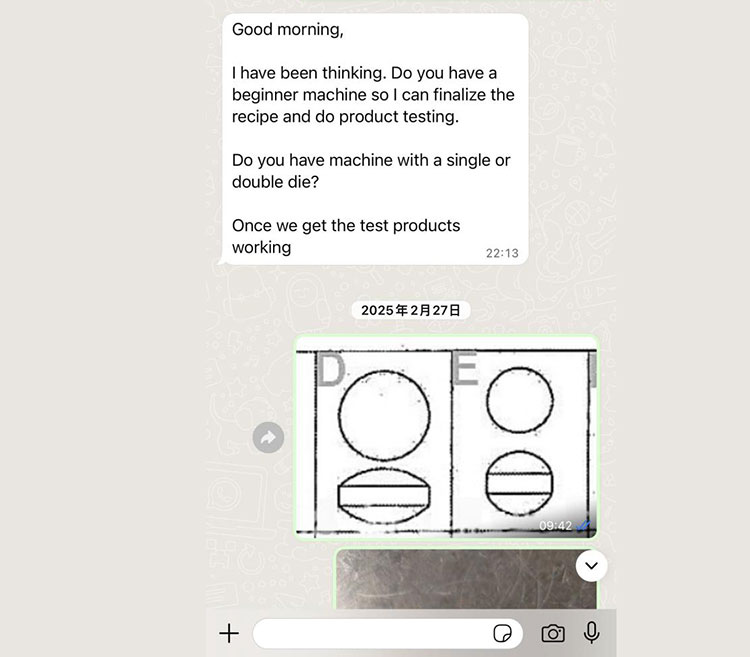

Customer requirements

When deploying complex geometric arrays—such as synchronized star and heart matrices within a singular compression cycle—maintaining mechanical alignment under high tonnage becomes critical.

To support international manufacturing operations with limited legacy hardware exposure, structural engineering protocols prioritize iterative volumetric simulations to determine exact filling depths, eliminating trial-and-error latency and securing absolute process control during simultaneous multi-shape compression runs.

Specific mold design

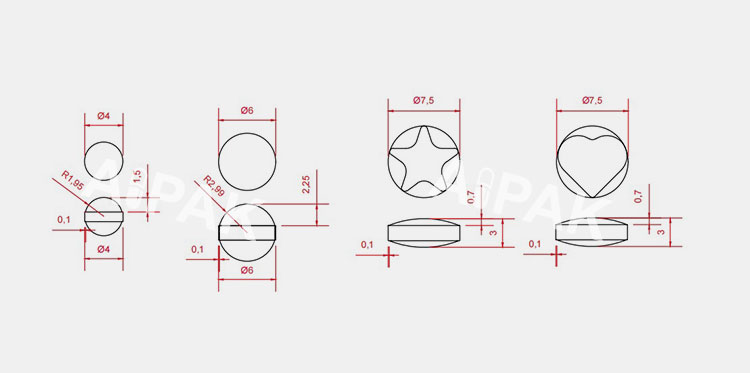

Optimizing customized tooling profiles requires precise micro-dimensional engineering adjustments to eliminate localized stress concentration points along complex edge profiles. AIPAK’s technical group executed multiple engineering design reviews to calibrate the critical taper angles and radial tolerances of the forming cavities. This intensive structural evaluation ensures that complex geometries, such as sharp-edged star parameters, demold cleanly without product chipping or edge erosion.

I always tell my clients that solid processing solutions require exact uniform particle size control and precise powder homogeneity. This custom tooling was the perfect example of our B2B customization service. We do not engage in retail business. We focus on complete product process and package services.

2.Why Are Machine Testing Videos Crucial for Client Confidence?

Buying machines overseas feels risky. You worry the machine will not work. Factory testing videos remove this fear completely and show real results.

Machine testing videos provide visual proof of equipment stability and product consistency. By recording the actual production of custom candies, clients can verify the tablet press speed, shape accuracy, and overall machine performance before shipping.

Tablet press machine testing video

Validating line functionality requires rigorous pre-shipment testing sequences to document kinetic behavior under active compression loads. Upon completing the multi-cavity hardware assembly, industrial platforms run comprehensive performance testing using client-specified powder properties to generate definitive verification data.

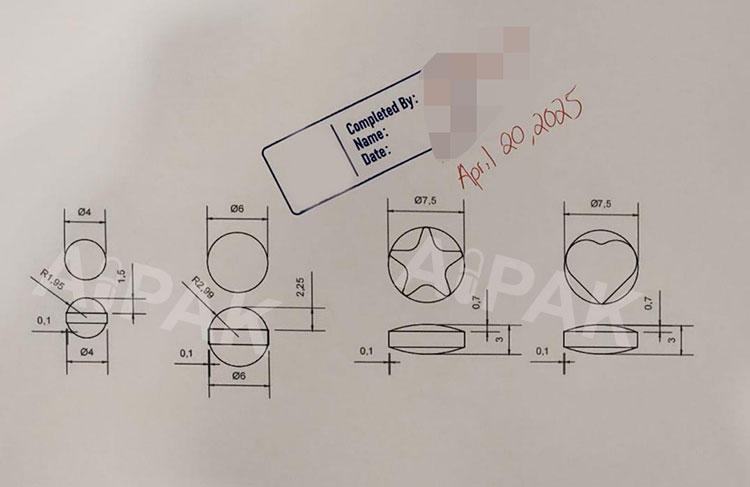

Two different candy shapes

Transmitting detailed continuous run profiles and close-up ejection data allows overseas buyers to verify structural compression stability, demolding efficiency, and shape replication accuracy prior to terminal logistics tracking.

Seeing the machine work perfectly in the video helped the client trust our expertise. They knew we could deliver high-quality pharmaceutical processing and packaging equipment. This step is very important for building long-term business relationships.

3.How Can You Make Tooling Changeovers Easy for New Operators?

Are you worried about complex machine maintenance? Hard-to-change molds cause long downtimes. Step-by-step video tutorials make this process very simple for anyone.

To simplify tooling changeovers, operators need clear video tutorials. These guides show exactly how to remove and install punches and dies. This training ensures safe daily operation and reduces machine downtime for new users.

Tablet press tooling changeover

Addressing post-delivery operational latency involves generating standardized technical alignment tutorials to simplify batch changeovers for plant personnel.

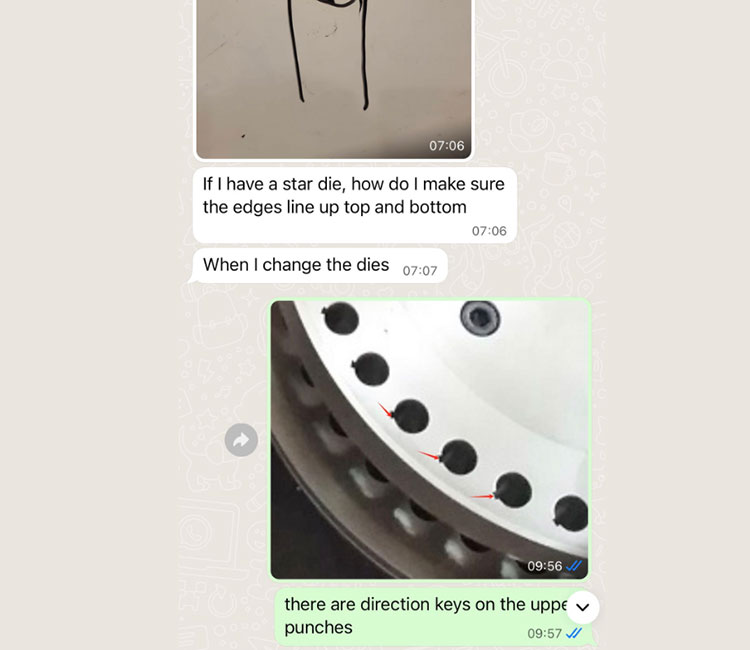

Because multi-cavity punches incorporate custom orientation keys on the upper shafts to guarantee perfect lower-die tracking, precise mechanical pathing is required during tool insertion.

Providing step-by-step visual maintenance sequences ensures local operators execute quick tooling replacement safely, reducing equipment changeover downtime and protecting high-value components from alignment friction.

I also pointed out the key operating steps to keep the machine safe.I sent this video to the client along with a clear explanation of our after-sales support. I told them we offer 24/7 online customer support.

I wanted the client to know that if they met any problems during use, they could get fast technical help from us. This level of reliable service is why global customers choose us. We make sure our clients feel supported at all times.

4.What Are the Results of Upgrading to a Custom Tablet Press?

Are you still using slow candy production methods? You lose orders to faster competitors. A custom tablet press changes everything for your business.

Upgrading to a custom tablet press significantly increases production efficiency. It allows manufacturers to produce multiple shapes smoothly, simplifies the operating process, and ensures rapid technical support, leading to better market competitiveness.

Custom tablet press results

Terminal asset integration concludes with successful site acceptance validation and continuous commercial scaling at the client's manufacturing site in Canada.

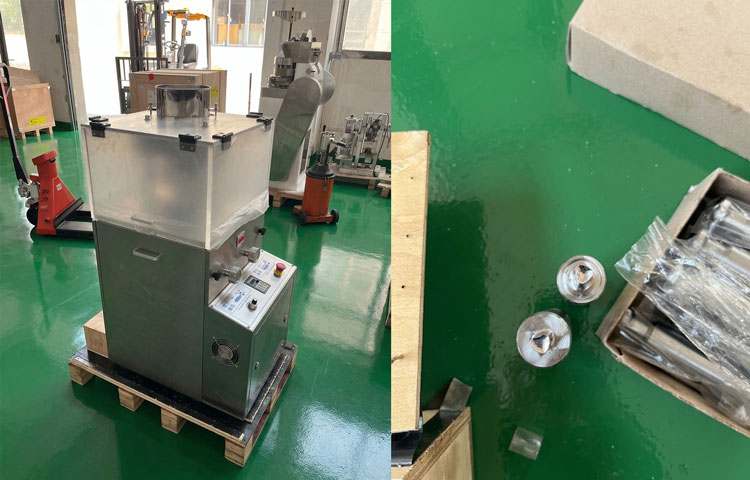

Dual-shaped tablet press machine in this Canadian customer factory

Post-commissioning performance diagnostics confirm that upgrading to customized multi-cavity rotary architectures achieves an immediate throughput expansion while maintaining dimensional repeatabilities across both product shapes.

Securing rapid online technical diagnostic support further dampens operational risk, allowing first-time global buyers to sustain maximum overall equipment effectiveness (OEE) within continuous food-grade confectionery environments.

Conclusion

Custom tablet press tooling solves complex candy shaping needs. Clear communication, testing videos, and strong after-sales support ensure success for international confectionery manufacturers.Need unique shapes for your confectionery or pharma products? Click here to consult AIPAK’s tooling experts for a free design audit and custom compression test today!
