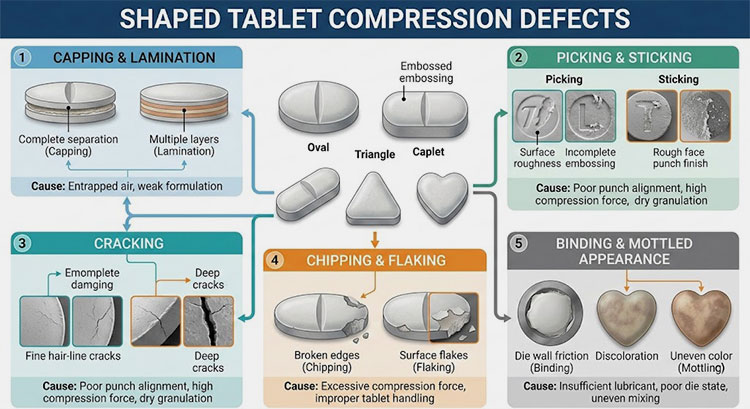

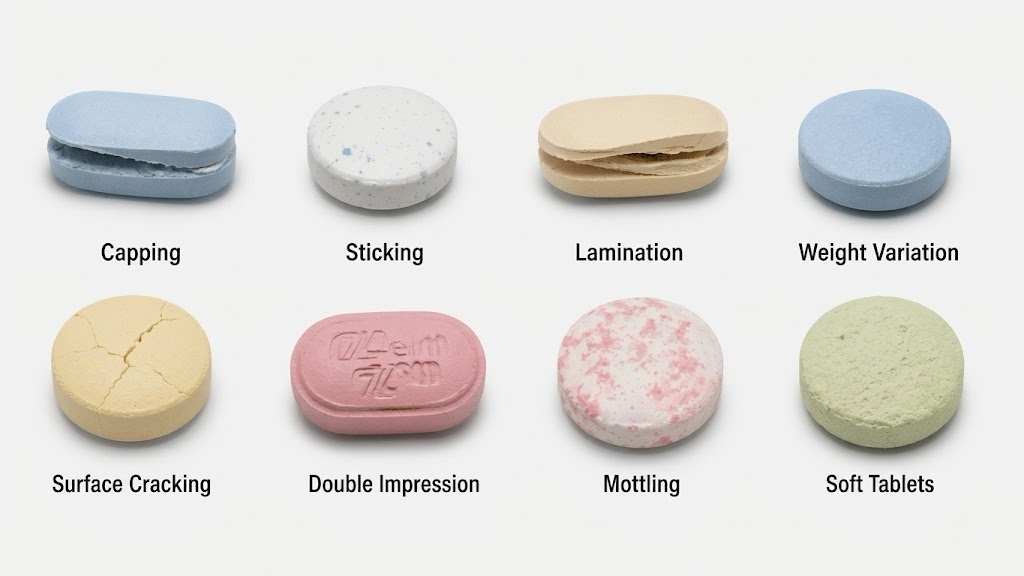

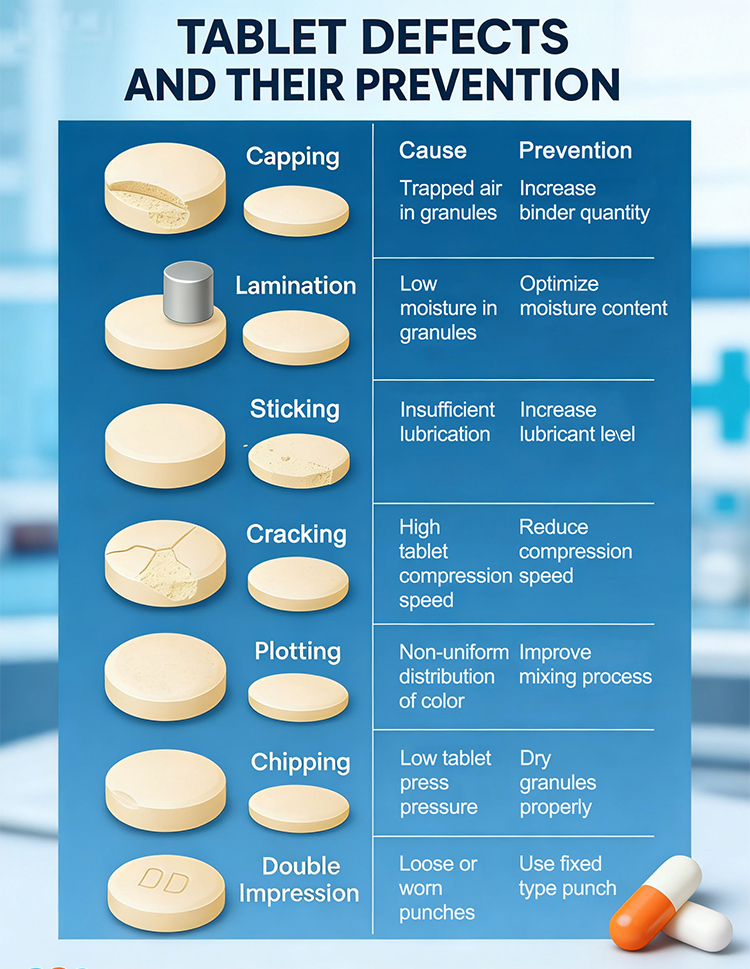

Optimizing Shaped Tablet Compression Tooling: Engineering Solutions for Irregular Solid-Dosage Defects

1.Why Do Shaped Tablets Have High Weight Variation?

Your tablet weights go up and down. This breaks your quality control limits. It is the most common problem in shaped tablets. Let us find out why this happens.

High weight variation happens because irregular shapes have filling dead zones. Poor powder flow stops the material from reaching corners. Also, bad feeder scraping or uneven lower punch movement causes different fill volumes in each die hole.

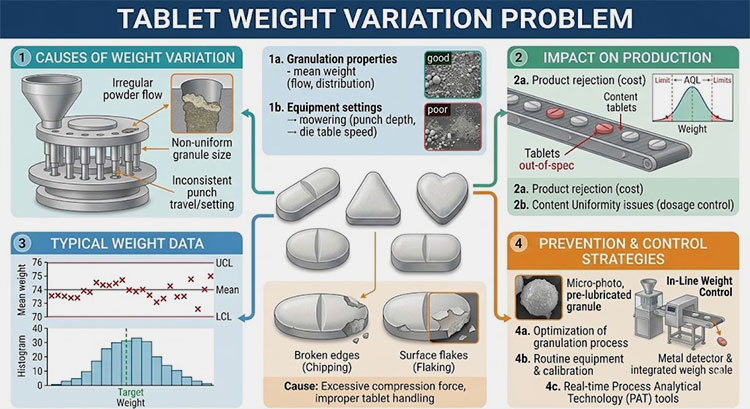

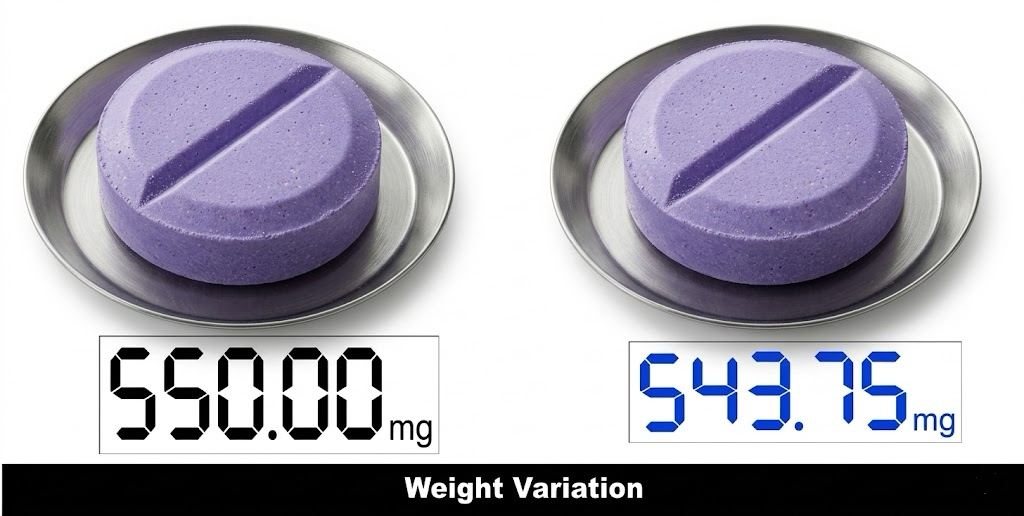

Shaped Tablet Weight Variation

Granular material flow behavior diminishes significantly when interfacing with non-circular die orifices, often provoking high batch rejection rates due to localized volumetric variance.

Because irregular die cavities encompass specific geometric angles, standard gravitational feeding patterns fail to uniformly distribute particle mass into peripheral zones, leading to incomplete die cavity filling and critical tablet weight variation.

We need to break this problem down into three parts. First, we must check the powder. Second, we must check the feeder. Third, we must check the punch.

2.How to Fix Weight Variation？

By fixing these three areas, you make sure every die hole gets the exact same amount of powder. This will keep your tablet weight stable.

3.How Can You Stop Capping and Cracking in Shaped Tablets?

Your tablets break at the top or edges. Sometimes they split completely. This ruins the look and you cannot sell them. You must stop this cracking fast.

Capping and cracking happen because shaped tablets have uneven stress. The sharp corners take too much pressure. Also, trapped air inside the powder expands after pressing. If you do not use enough pre-compression, the main pressure will crack the tablet.

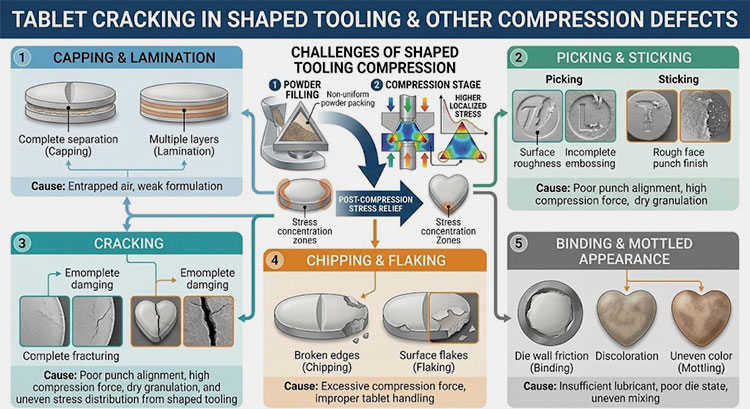

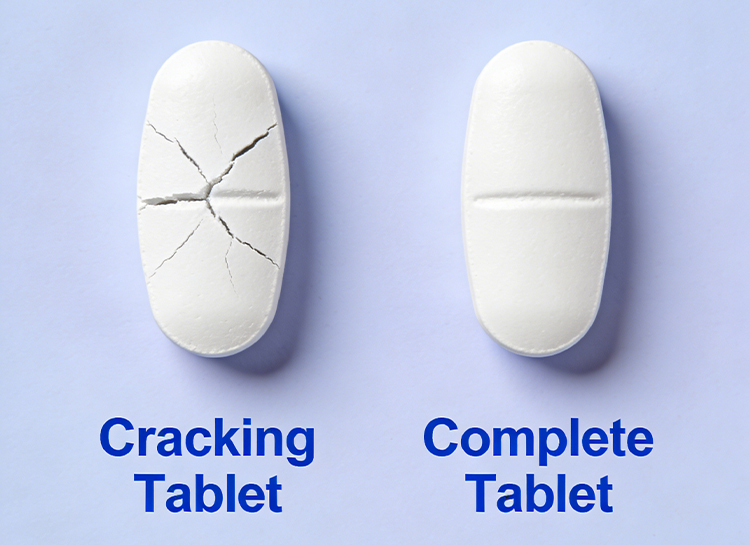

Tablet Cracking in Shaped Tooling

Non-symmetrical tool tips suffer from critical asymmetrical stress distribution during the main compression dwell time. While radial force vector propagation is uniform within circular configurations, irregular profiles project highly concentrated mechanical stresses directly into sharp geometric radiuses, inducing severe capping and structural cracking.

Furthermore, the localized air evacuation pathway is constrained within sharp angles, leading to trapped micro-air pockets that expand rapidly upon punch retraction.

When the main punch hits the powder, the air compresses. When the punch leaves, the air expands and blows the top off the tablet.

4.Steps to Stop Cracking

You must let the air out before the final heavy hit. Pre-compression is your best tool to stop capping and cracking.

5.Why Do Shaped Tablets Get Chipped Edges and Missing Corners?

You look at your triangle or oval tablets. The sharp corners are missing. The narrow edges are broken. This makes your whole batch fail quality checks.

Chipped edges happen because the sharp corners of shaped tablets are weak. When the ejection force pushes the tablet out, the tablet hits the die. If the die is worn or rough, the friction rips the corners off.

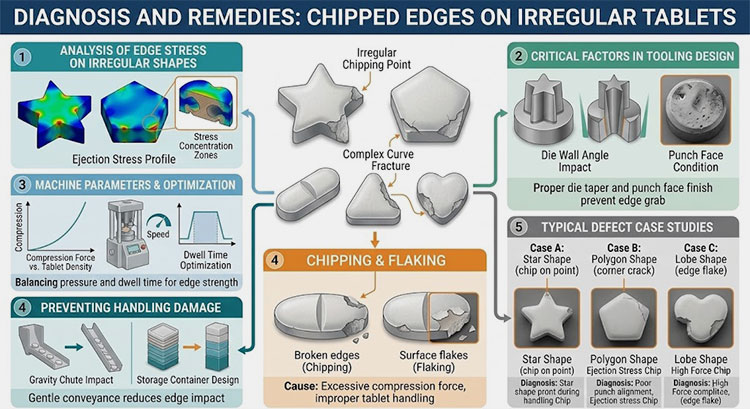

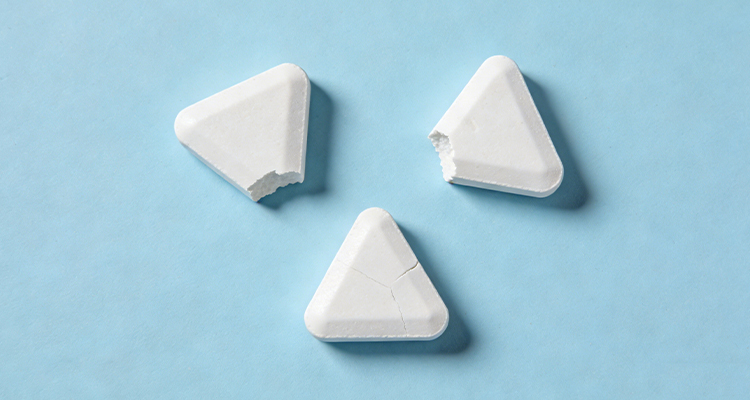

Chipped Edges on Irregular Tablets

Terminal tablet ejection poses elevated operational risks for delicate, sharp-edged profiles due to lower interparticulate binding mass at the extreme geometric boundaries. As the lower punch lifts the compressed matrix, significant friction against the die wall surfaces can cleave weak corners if surface roughness thresholds are uncalibrated.

This structural vulnerability is scaled if the take-off scraper assembly exerts excessive direct impact force during the terminal discharge pass. If the tablet comes out at a bad angle, the blade chips the edge.

6.How to Prevent Missing Corners?

Small changes to your punch design can make the corners much stronger. A smooth die wall is always necessary.

7.How Do You Fix Sticking and Picking in Shaped Tablet Tooling?

Your tablet surface looks rough. Small pieces of powder stick to the punch face. Soon, the machine jams. This hidden problem ruins your production run completely.

Sticking and picking occur because shaped cavities have many dead corners. Powder builds up in these corners. If the punch surface is rough, or if the powder is too wet or sticky, the material will grab the tooling and pull away from the tablet.

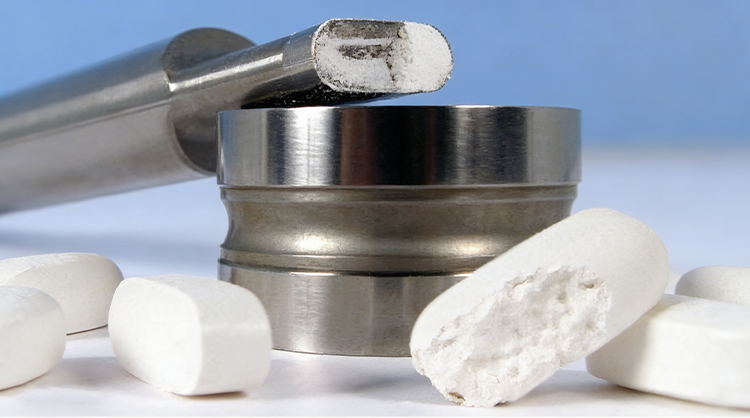

Sticking and Picking in Tablet Press

Sticking and picking phenomena accelerate rapidly within the deep debossing profiles and intricate angles of irregular tooling assemblies. Material accumulation occurs when cohesive powder matrices adhere to localized surface cross-sections or micro-crevices on the punch tip faces that resist standard mechanical polishing.

If surface roughness tolerances exceed target parameters, adhesive granule blends continuously bonding within these zones necessitate recurrent line stoppages for manual tooling clearing.Moisture is another big factor. If your granules have too much water, they act like glue.

8.Checklist for Sticking and Picking

You must keep your punches perfectly clean and polished. You must also control the moisture in your solid processing line.

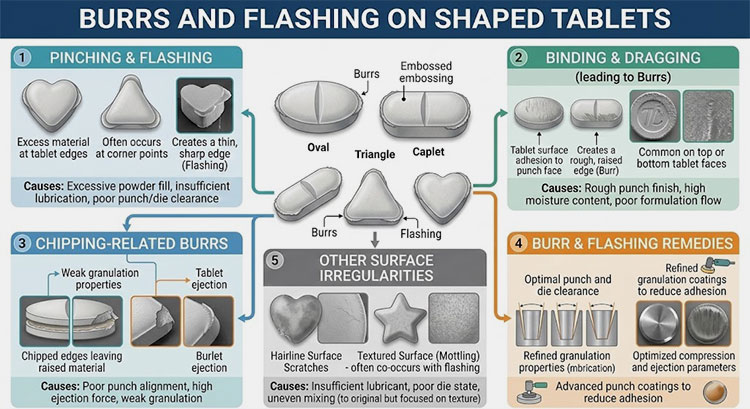

9.What Causes Burrs and Flashing on Shaped Tablets?

You see a ring of extra powder around the edge of your tablet. It looks ugly. It also makes the tablet weigh too much. You need to clean this up.

Burrs and flashing happen when the gap between the punch and the die is too big. High pressure squeezes fine powder out through this gap. This usually means your tooling is worn out or your powder has too many fine dust particles.

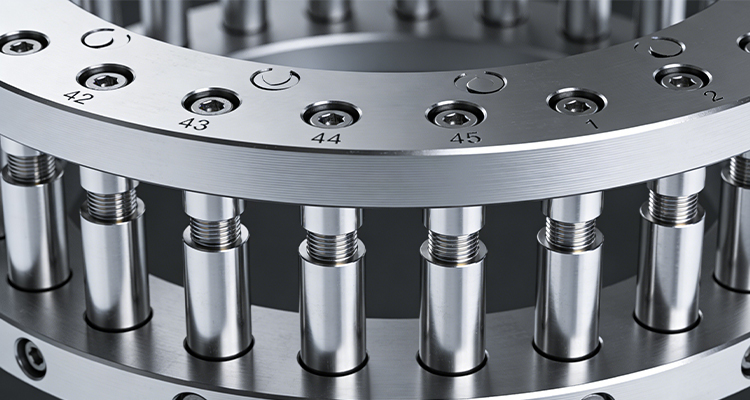

Burrs and Flashing on Shaped Tablets

A factory manager once showed me a batch of heart-shaped tablets. Every tablet had a sharp, thin edge of extra powder around it. We call this a burr or a flash.

This happens because of the clearance space. The punch must fit inside the die hole. There is always a tiny gap. When you use an irregular shape, the tooling wears out unevenly. After a long time, the gap gets wider at the corners.

When the tablet press machine applies high pressure, the powder looks for a place to escape. If the gap is wide, the powder pushes up the sides. If your powder is very fine, it escapes even easier.

10.Stopping Burrs and Flashing

New tooling with tight clearances will stop flashing right away. Good granulation also helps keep the powder inside the die.

11.How Can You Fix Uneven Thickness and Hardness in Shaped Tablets?

One side of your tablet is hard. The other side is soft. The thickness is not the same. These weak tablets will break during shipping and packing.

Uneven thickness and hardness happen because of uneven filling. The powder density is different in different parts of the shaped die. Also, if the punch is not aligned perfectly, the pressure hits one side harder than the other side.

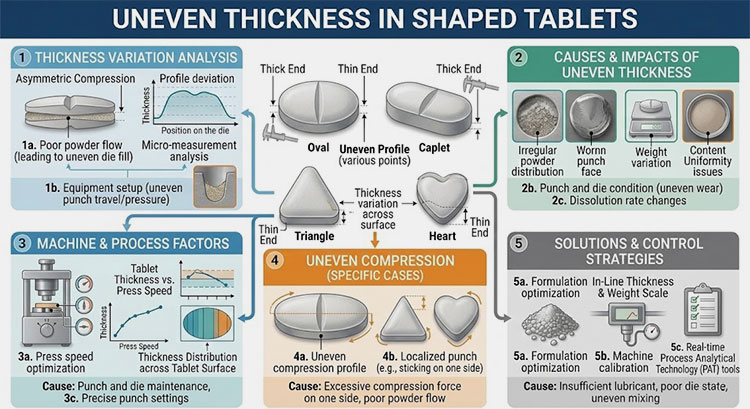

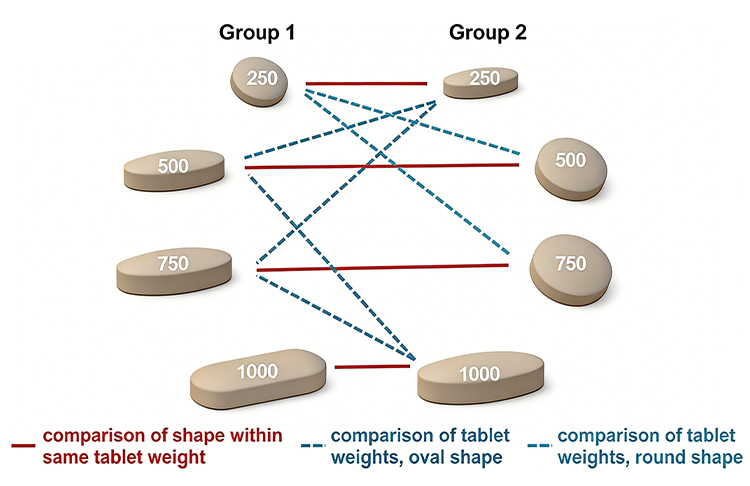

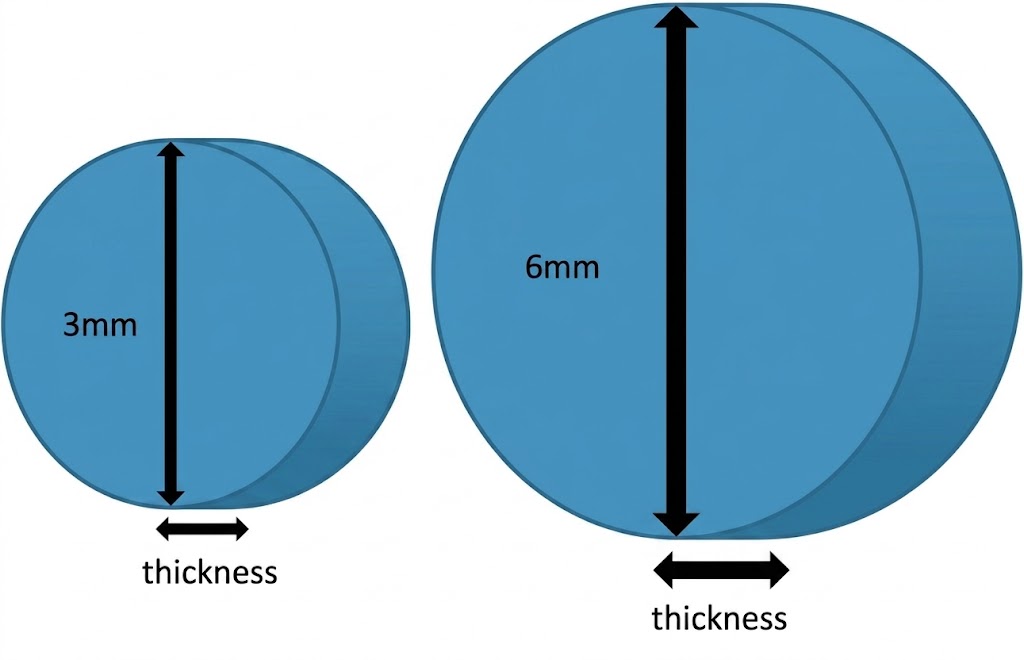

Uneven Thickness in Shaped Tablets

I was testing a new tablet coating machine for a customer. Their tablets kept breaking inside the coating pan. We checked the tablets and found that one end of their oblong tablet was very soft.

This is a hidden danger. You cannot always see uneven hardness. It happens because irregular shapes do not fill evenly. One end of the shape gets heavy, dense powder. The other end gets light, loose powder. When the punch comes down, the dense side gets hard. The loose side stays soft.

Another reason is punch alignment. If the punch is slightly crooked, it presses the powder at an angle.

12.Fixing Uneven Hardness

You must ensure uniform powder distribution. This makes the whole tablet strong and ready for the blister packing machine.

13.How Do You Prevent Double Pressing and Lamination in Shaped Tablets?

Two tablets get pressed together. The machine makes a loud noise. The tooling breaks. This causes terrible machine damage and stops your work for days.

Double pressing happens when the lower punch does not push the first tablet out. The tablet stays in the die. The machine fills more powder on top. Then, the machine presses the old tablet and the new powder together. Irregular shapes jam easily and cause this.

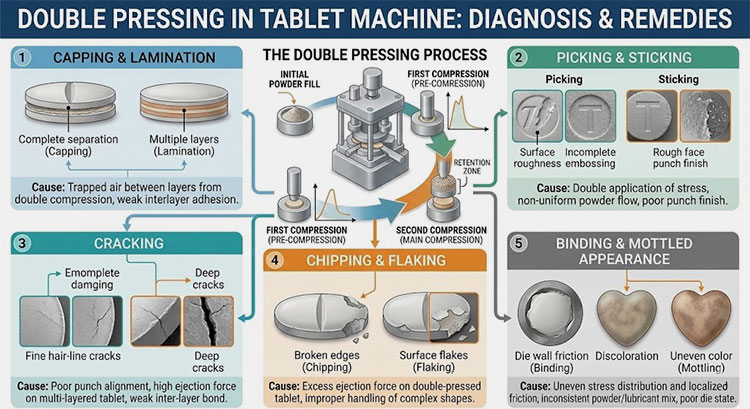

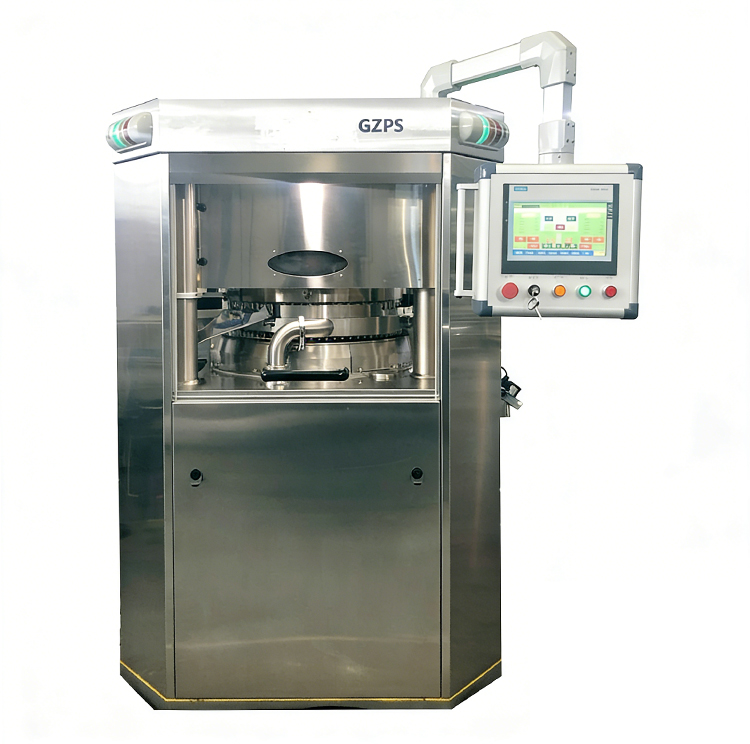

Double Pressing in Tablet Machine

Double compression represents a catastrophic mechanical fault resulting in severe tool tip fractures and turret misalignment due to immediate overloading. Non-circular matrices exhibit non-uniform structural roll behaviors on the die table, scaling the risk of mechanical jamming if the take-off alignment is skewed.

Should an uncalibrated ejection cam fail to lift the completed core entirely flush with the die plate surface, the core remains localized within the cavity, receiving a secondary powder charge and a devastating secondary stroke.The feeder pushes new powder over it. Then the heavy main pressure hits double the material.

Lamination is similar. The tablet splits into layers because air is trapped or the binder is weak.

14.Preventing Double Pressing

Clear the die table completely after every punch. This protects your machine and your tooling from disaster.

15.Why Does Shaped Tablet Tooling Wear Out So Fast?

You buy new punches. They break or wear out very fast. You spend too much money replacing them. This raises your production cost and causes too much downtime.

Shaped tooling wears out fast because irregular punches have asymmetrical stress. The sharp corners take all the heavy pressure and break. Also, if metal dust or hard impurities mix into the powder, they scratch the die and ruin the punch tip quickly.

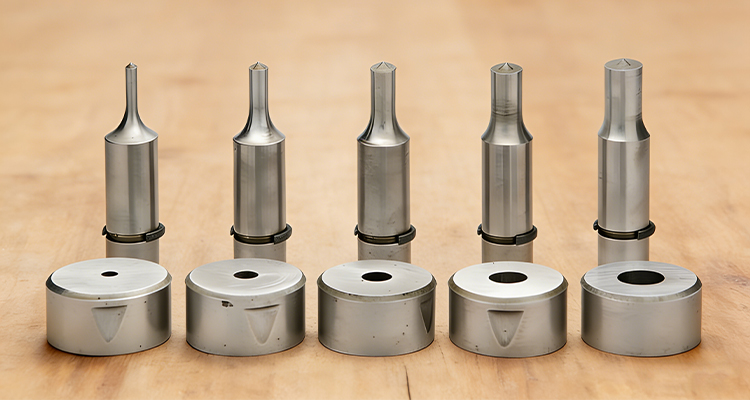

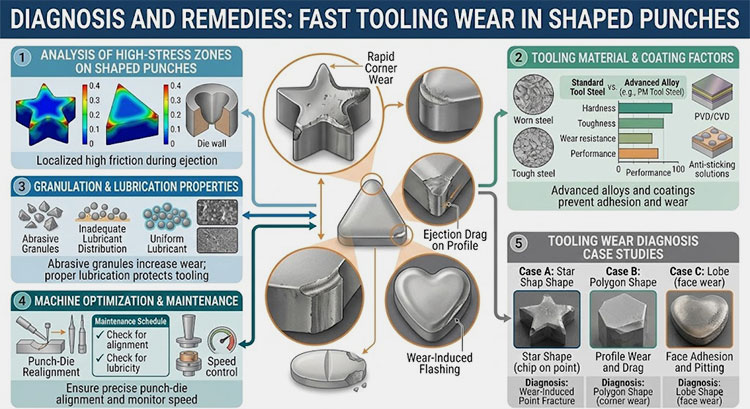

Fast Tooling Wear in Shaped Punches

Premature tooling wear and localized metal fatigue are heavily influenced by the geometric distribution of compressive force vectors rather than basic metallurgy constraints. Non-symmetrical punch profiles undergo profound mechanical stress concentration across sharp perimeter contours, accelerating punch-tip degradation and localized chipping.

Managing these abrasive dynamics demands utilizing high-tier anti-abrasive steel alloys and integrated, verified lubrication delivery loops.The tips chip and break.

Also, some pharmaceutical powders are very abrasive. If you do not use good lubricants, the powder acts like sandpaper on the metal.

16.Extending Tooling Life

You must treat shaped tooling with extra care. Use good lubrication, keep the pressure low, and clean the punches often.

Conclusion

Solving shaped tablet defects requires fixing uneven filling, asymmetrical stress, and poor ejection. Control your powder flow and maintain your tablet press machine to ensure perfect tablets every production run.
