Pharmaceutical Tablet Size Chart: Complete Tooling Guide

1.What is standard pharmaceutical tablet?

Standard round shape tablets-picture courtesy: Holland tableting science

A standard pharmaceutical tablet is defined as a highly compacted, cohesive solid dosage form engineered by compressing a calculated mass of active pharmaceutical ingredients (APIs) alongside functional polymeric excipients (fillers, binders, disintegrants, and glidants).

Mechanically manufactured to achieve specific dissolution kinetics, standard compact profiles typically encompass round, oval, or oblong geometries with precise mechanical diameters or lengths spanning 5 mm to 22 mm.

Their physical surfaces can be explicitly modified via aqueous film coatings or structural scores to accommodate complex delayed or extended-release pharmacokinetic profiles.

2.Understanding basic dimensions in pharmaceutical tablet size chart.

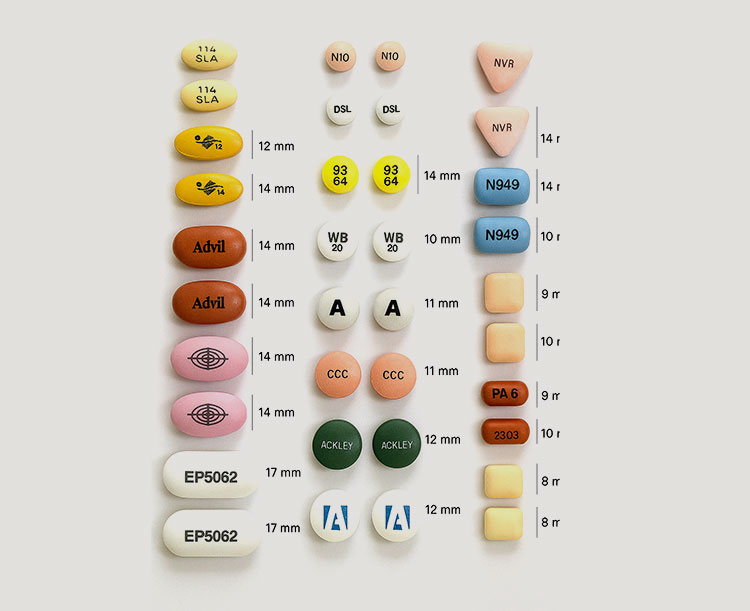

Variety in sizes and shapes of tablets ranging from 8mm to 17mm

A pharmaceutical tablet size chart is a standard guide of tablet sizes used in pharmaceutical manufacturing. This pharmaceutical tablet size chart has various shapes and sizes of tablets which are used in the pharmaceutical manufacturing.

This size chart helps the manufacturer, formulator or dispensers to choose an appropriate tablet size and shape according to the dosage, swallow ability, production tools and regulatory requirements.

Following chart shows the basic dimensions which are considered in tablet with different shapes and included in tablet size chart:

The following image shows the dimensions of tablet which are considered during design and formulation of a drug.

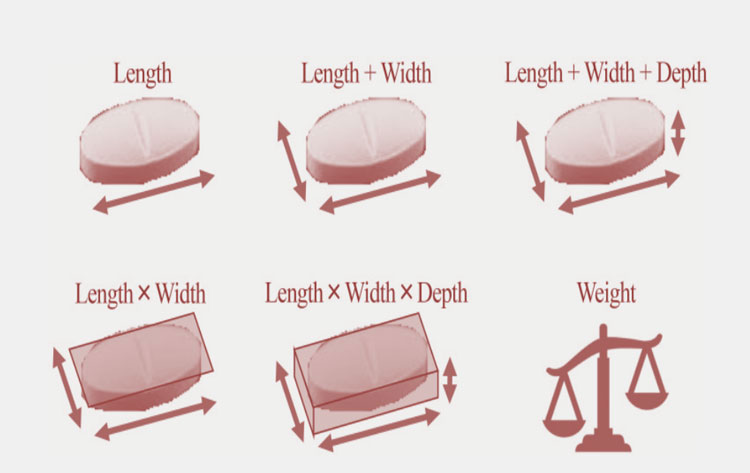

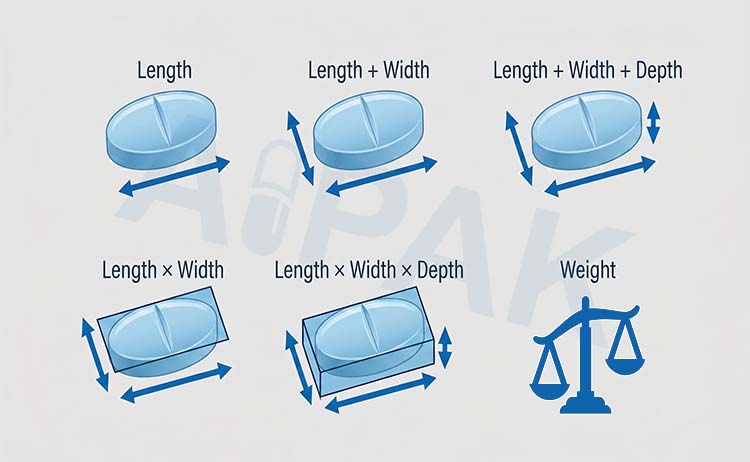

Tablet dimensional measurement geometry

In case of a round shape tablet, the measured dimensions include diameter and thickness. The length and width both are considered as diameter in case of round tablet.  In case of oval, oblong tablet or a caplet the measured dimensions are length, width and thickness.

3.Why does tablet size chart matters in pharmaceuticals?

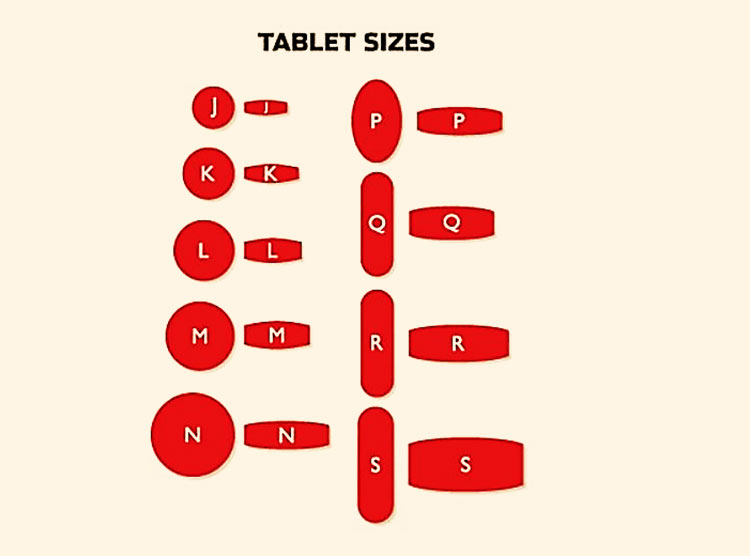

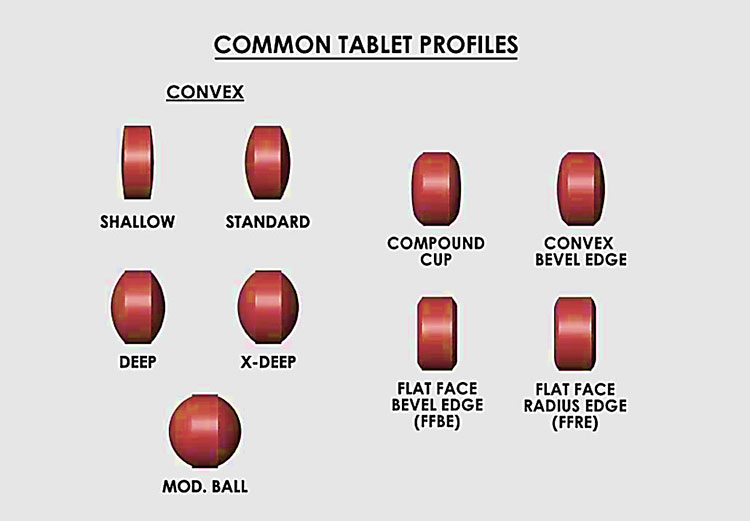

Top view and side profile reference for different tablet size codes

In high-speed rotary compression, the allocation of specific alpha-numeric codes (J, K, L, M, N, P, Q, R, S) within the tablet size chart is a vital layer of mechanical normalization. These standard metrics dictate the boundary volume of the die cavity, ensuring total synchronization between the powder matrix and punch tip topography to prevent localized core fractures.

Standardized configurations allow compounding engineers to select compatible punch and die profiles directly matching B or D tooling classifications, effectively preventing the expensive lead times associated with non-standard custom tooling lines.

Furthermore, referencing an established size matrix safeguards contract packaging alignment, assuring that the tablets' radial dimensions effortlessly fit standard blister packs, sachet fills, or commercial bottling lines.

The pharmaceutical tablet size chart has tooling codes through which it is ensured that correct punch and dies size are selected for tablet compression machines. It ensures the regulatory compliance of FDA is followed, tablet size not more than 22mm is recommended by FDA.

The size chart ensures that the volume of tablet match with the amount of active ingredient of the tablet and excipients. The size chart shows that tablets greater than 17mm in size are difficult to swallow, so we can choose a suitable size on the basis of age group and certain patient conditions like dysphagia.

There are different types of punches like B, D, BB, DB tooling. We can choose a suitable punch code avoiding any unnecessary custom tooling. The packaging of tablet in right size of blister packs, bottles or sachets is ensured.

4.Overview of standard pharmaceutical tablet sizes.

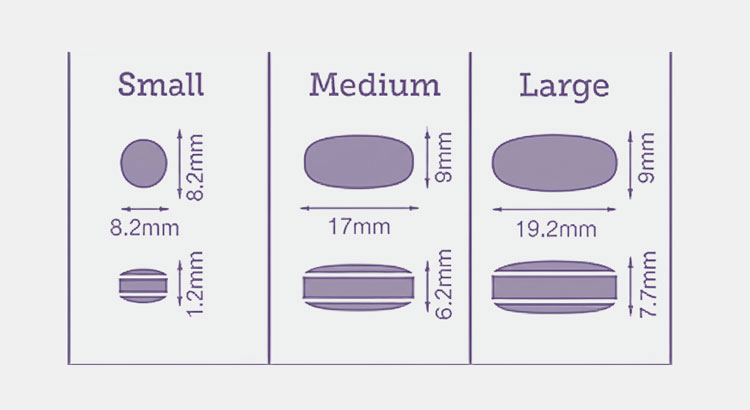

Random dimensions of a tablet in small, medium and large size

There is a large variety in commonly available size of the tablet. The size ranges from 1mm to 22mm. They are divided into three categories based on their dimension, which include small, medium and large.

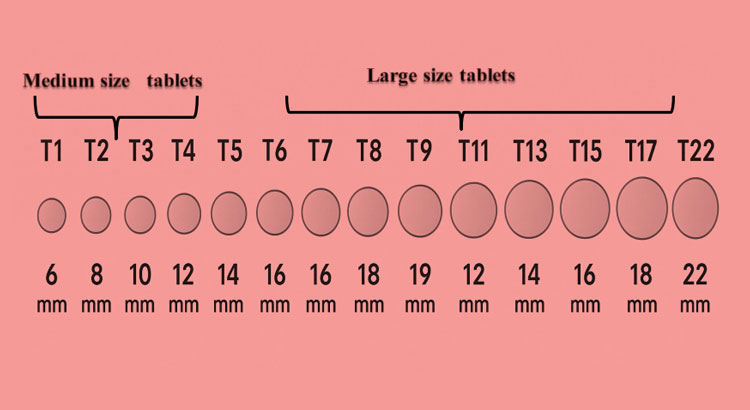

Image showing gradual increase in sizes of round tablets, T1=6mm to T22=22mm

Small sized tablets: they are usually ≤ 6mm.

Standard medium size tablets: The tablets greater than 6mm are usually classified as medium size tablets.  The common range is 9-12mm.

Large sized tablets: The tablets 13-17mm are classified as large size tablets, but tablets greater than 17mm which can be up to 22m are very large tablets, this size is for effervescent tablets or chewable.

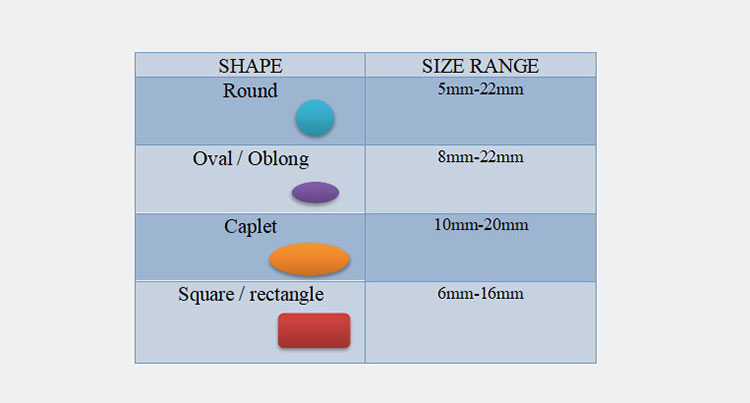

Size ranges of tablets on the basis of their shapes:

If we consider a few examples from our daily life, we can see a standard paracetamol tablet weighing 500mg is a 12-14mm round or oval tablet. A low dose aspirin tablet weighing 81mg is 5-6mm round tablet. Metformin which usually a larger dose tablets with weight range 500-1000mg is 1-mm-21mm oblong or caplet.

Multivitamins is usually 15-22mm oblong or caplets with different doses.

5.Pharmaceutical tablet size chart on the basis of punch codes.

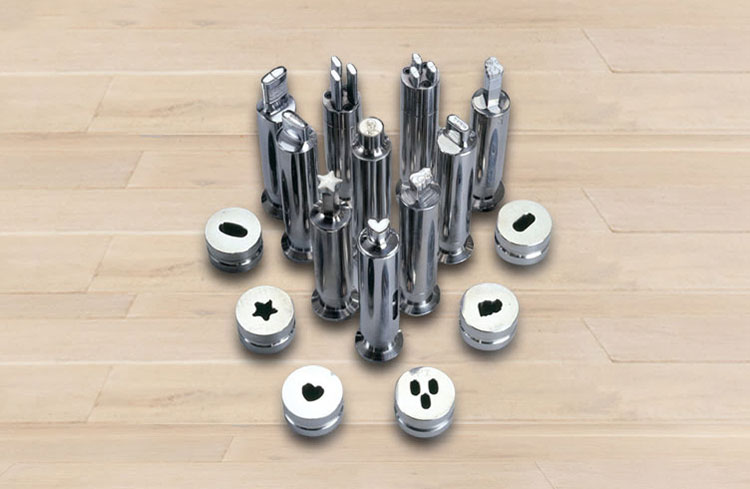

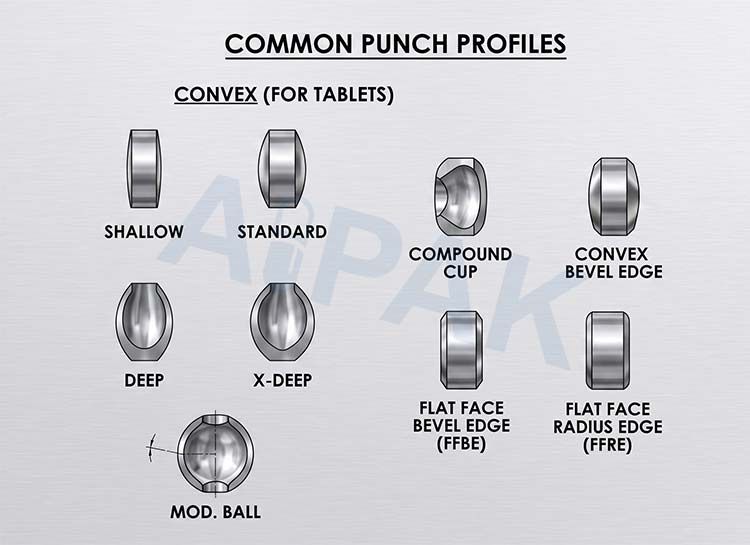

Different punches and dies used in tablet formation

Punch codes in tablet manufacturing refers to the standard tablet tooling system which is used in the rotary tablet press during the production of tablet. The usual tooling system used is B, D, BB, DB and BBS punches. The pharmaceutical tablet size chart based on the tablet punch code system is highly relevant in the compression of tablet and tablet design.

The following tablet gives and overview of pharmaceutical tablet size chart on the basis of punch codes:

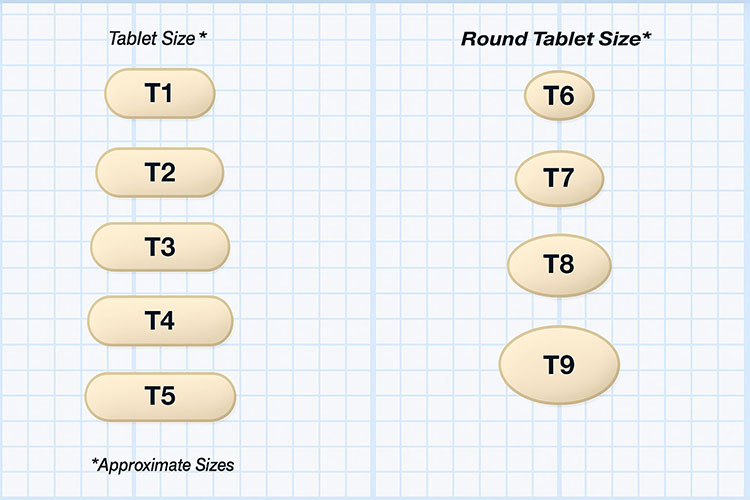

Different sizes of tablet achieved through different type of tooling

6.Pharmaceutical tablet size chart on the basis of dosage forms.

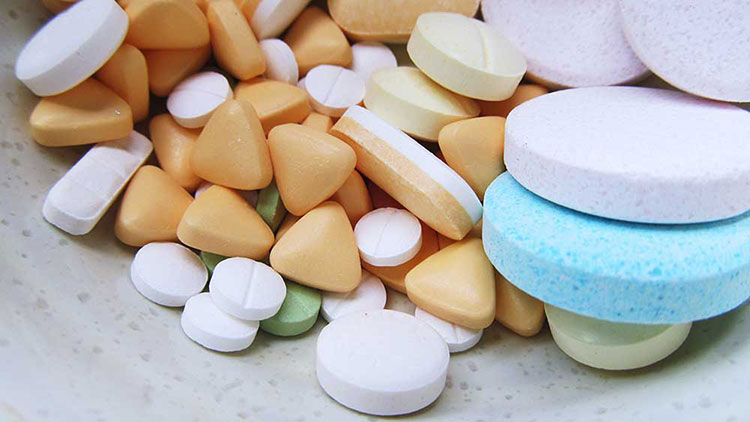

Different types of tablets-picture courtesy: FPA

The following table shows the pharmaceutical tablet size chart on the basis of different types of tablets dosage form available.

This pharmaceutical tablet size chart is important because it allows the manufacturer to prepare and match the tablet according to its function. It helps in improving the patient compliance and appropriate drug release is controlled. It also helps in the decision of right tooling and packaging of the tablet.

7.Why there is no universal pharmaceutical tablet size chart?

Different types of tablets-picture courtesy: pharma excipients

It might sound frustrating to not have a universal size chart for the tablet, but there are reasons that justify the cause. The pharmaceutical tablet is manufactured for a wide range of dosage forms, patients and manufacturing needs. The size of the tablet is related to the weight of tablet. A low weight tablet will be of small size while a high weight tablet will be of larger.

The variation in the potencies and bulk densities of the API has a major impact on the weight and size of tablet. The different type of dosage forms, extended release or immediate release has different types of coatings which leads to difference in the weight and size of tablet.

The companies manufacture different types of shapes and sizes of the tablets depending upon the needs of their target audience, brand identity or patent protection. Therefore, two tablets with same dosage can still be completely different.

In pharmaceutical manufacturing, the weight and shape of the tablet is used as reference. Therefore, the manufacturers are mainly relying on the general tooling standards like B, D, BD, BB punches and tablet size is customized as required.

8.FDA guidelines for pharmaceutical tablet size.

These are the few FDA guidelines that must be followed during the manufacturing of tablets with different sizes, so that they align with the reference listed drug (RLD) as closely as possible:

The largest dimension of the tablet must not exceed 22mm. tablets larger than 22mm can be a problem for patients to swallow. In case the RLD is larger than 22mm than the generic drug is also required to match the RLD.

If the RLD is less than 17mm in its largest dimension, then the generic tablet should not be more than 20% larger than RLD in a single dimension and should not exceed 17mm.f the RLD is equal to larger than 17mm in its largest dimension, then the generic tablet should not be larger than 17mm in any dimension.

Tablets which are equal or less than 8mm are given more flexibility in the size.

To secure unassailable regulatory compliance, generic solid dosage formulations must mirror the physical dimensions of their Reference Listed Drug (RLD) as tightly as possible to mitigate consumer throat-transit variation.

All generic applications targeting compressed configurations must strictly adhere to the geometric mass limits governed by the US FDA Guidance for Industry: Size, Shape, and Other Physical Attributes of Generic Tablets and Capsules. Under this regulatory framework, the maximum allowable dimension of any compressed solid compact is capped at 22 mm, with strict restrictions ensuring that generic variants do not exceed a 20% physical size amplification over their respective RLD thresholds.

Conclusion:

Are generic formulation constraints or non-standard tooling code misalignments delaying your manufacturing deadlines? We invite you to submit your targeted dosage volume specifications to Request a Free Tablet Compressibility & Tooling Configuration Audit, allowing AIPAK’s solid dosage engineering specialists to design compliant, high-speed B and D type punch matrices for your production floor today.
