Advanced TCM Solid Dosage Engineering: Particle Design Strategies and Continuous Rotary Tablet Press Optimization for Herbal Formulations

1.What Are The Main Challenges of Direct Compression in TCM Powders?

Herbal extracts hold too much moisture and fiber. Your tablet press will jam, and your tablets will break. We must understand these flaws before we can fix them.

TCM powders have high viscosity, strong moisture absorption, poor flowability, and complex ingredients. These traits cause capping, sticking, and weight variations during direct compression. You need advanced excipients and particle engineering to overcome these natural material limits before using any tablet press machine.

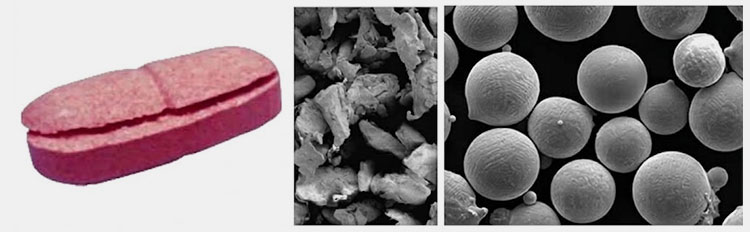

TCM powder tableting challenges

Processing botanical L-ascorbic derivatives or multi-component TCM extract arrays through direct compression continuous arrays targets critical segregation risks due to the powder's wide particle size distribution and variance in bulk density.

Unlike unialloying chemical crystalline matrices that possess high symmetry and uniform fluidic flow, raw herbal solids are heavily loaded with hydrophilic plant fibers, mucilaginous extracts, and natural essential oils that disrupt static mass flow lines.

Operating conventional rotary tableting machinery with raw botanical matrices induces immediate gravimetric percolation within the feed hopper—wherein high-density particulates accelerate downward while light fibrous components aggregate at the upper boundary—severely compromising downstream content uniformity and batch weight consistency unless neutralized via advanced particle design.

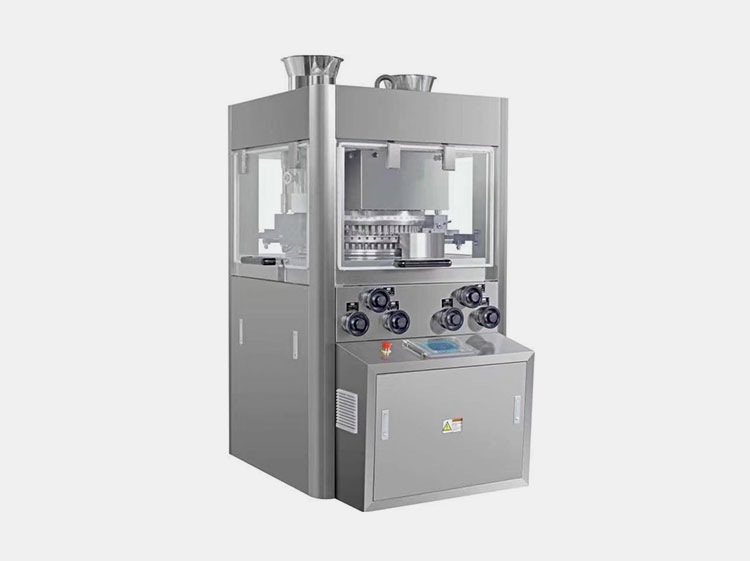

AIPAK’s rotary tablet press machine

When you put them in a standard rotary tablet press machine without preparation, the powder separates in the hopper. The heavy parts fall fast, and the light parts stay on top. This ruins your dose accuracy.

Also, herbal extracts pull water from the air very fast. This makes the powder stick to the machine punches and dies.

We can break down these problems into three main areas.

You cannot just push harder with the machine to fix this. You must change the powder itself. Our engineering team always looks at the material properties first before we recommend any solid processing equipment. You have to fix the flow before you can press the tablet.

2.How Can Excipient Engineering Fix TCM Powder Issues?

Raw herbal powders cannot form tablets alone. If you use cheap, basic binders, your tablets will fail quality tests. Smart excipient choices save your production line.

You can use single modified excipients like spray-dried lactose or microcrystalline cellulose to improve flow and binding. For better results, you should use co-processed excipients.

These combine brittle and plastic materials to stop moisture absorption and increase the drug load capacity of your tablets.

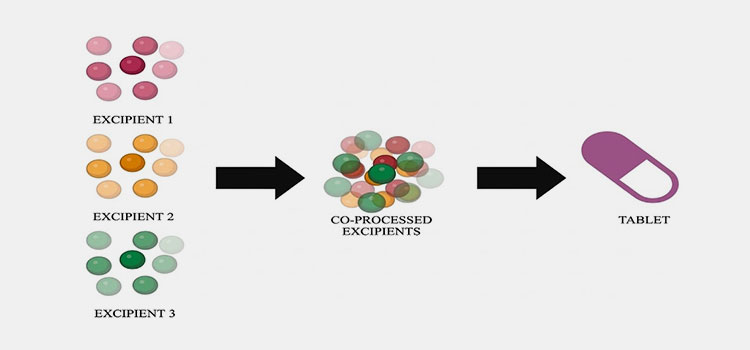

Co-processed excipients for TCM

Mitigating mechanical capping under high-velocity routing relies on the micro-structural configuration of the carrier matrix. Utilizing co-processed functional excipients—rather than simple physical mixtures processed via conventional V-blenders—integrates brittle spray-dried lactose with plastic microcrystalline cellulose (MCC) at a microscopic level, maximizing plastic deformation limits and augmenting the drug load capacity of sticky botanical matrices.

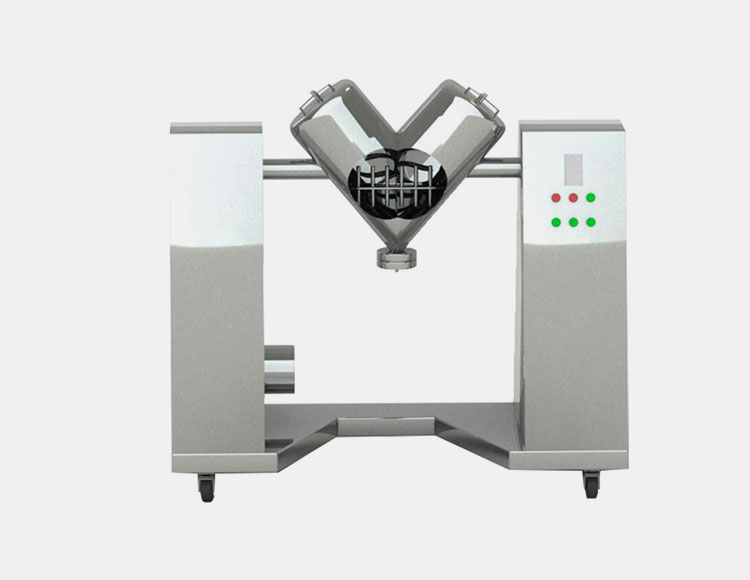

AIPAK’s V-blender machine

We often see clients use a V-blender or ribbon mixer to combine these basic excipients.

But TCM powders are too complex for just one basic excipient. This is why we use co-processed excipients. A co-processed excipient mixes two or more materials at a microscopic level. We use spray drying or hot melting to combine them. This creates a new material that is better than a simple mix.

These advanced mixtures stop the powder from separating in the machine. They allow you to put more herbal extract into a single tablet. This means the patient takes fewer pills.

3.What Are Particle Design Strategies Like Core-Shell and Porous Particles?

Adding too many excipients makes your herbal pills too large to swallow. Patients hate huge pills. Particle design changes the herb itself so you need fewer additives.

Constructing advanced core-shell micro-particle geometries effectively suppresses the erratic interfacial properties of botanical solids. By embedding the highly adhesive, hygroscopic herbal extract as the solid core matrix and engineering a protective boundary shell composed of colloidal silicon dioxide, particle fluidic shear is vastly enhanced, allowing the passivated formulation to flow uniformly through automated tablet press die-cavities.

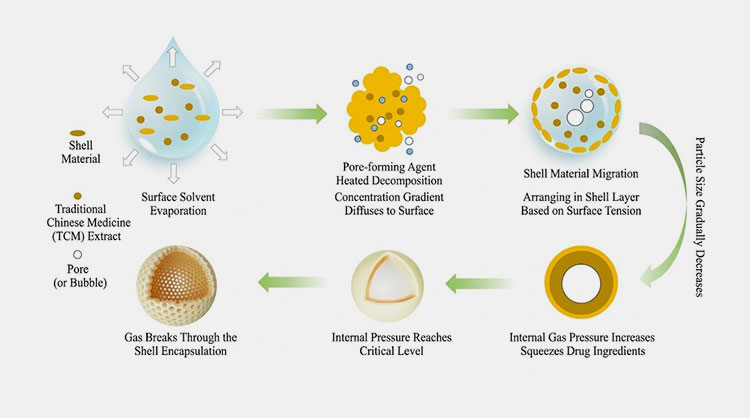

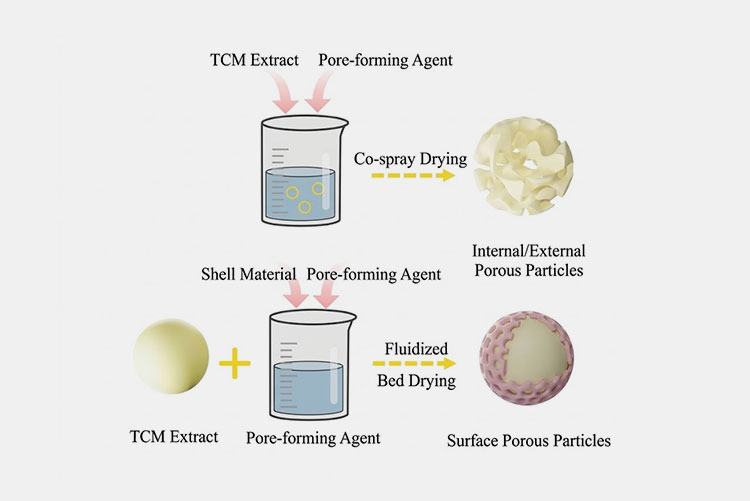

Core-shell and porous particle design

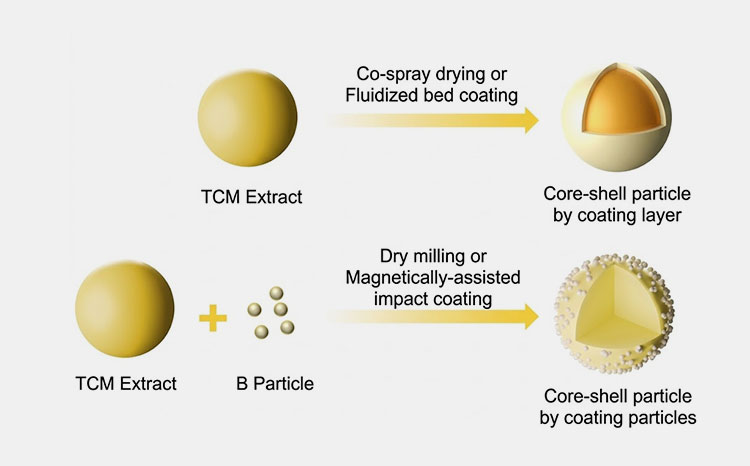

Particle design is a brilliant way to solve TCM direct compression problems. Instead of mixing the herb with other powders, we change the shape of the herb particle itself. Core-shell design is very popular right now.

We take the sticky, bad-flowing herbal extract and make it the "core". Then we coat it with a "shell" made of a smooth material like silicon dioxide. This hides the bad properties of the herb. The powder flows smoothly into the tablet press machine.

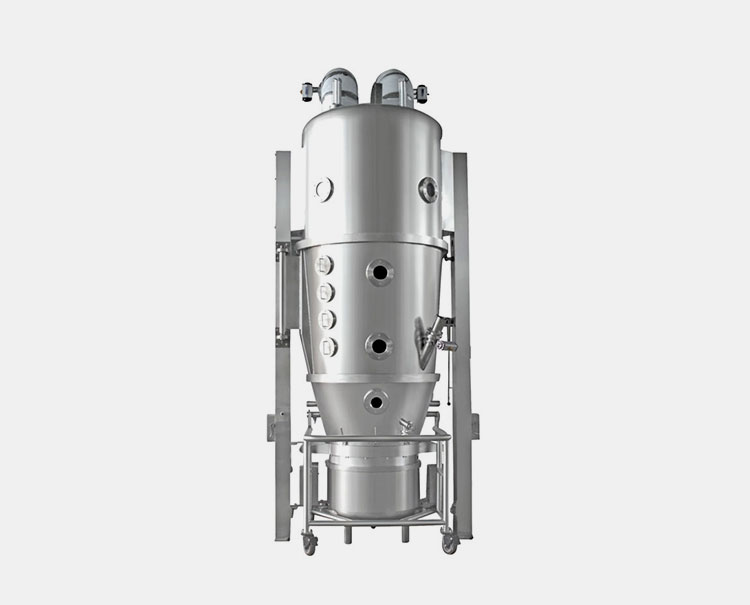

AIPAK’s Fluid bed dryer machine

Porous particles are another great option. We use special agents that create tiny bubbles inside the particle during the drying process. We often use fluid bed dryers to create these porous structures safely.

When you use porous particles, the water enters the holes quickly when the patient takes the pill. This makes the tablet break apart fast. I have seen this technology save many slow-dissolving herbal formulas from failing quality tests.

4.How Do We Combine TCM Direct Compression with Continuous Manufacturing?

Batch production is slow and wastes money. But putting sticky TCM herbs into a continuous line often causes total system failure. You need the right equipment and sensors.

Continuous Direct Compression (CDC) for TCM requires particle-engineered powders and advanced Process Analytical Technology (PAT).

By using modified powders and real-time sensors like Near-Infrared (NIR) spectroscopy, you can constantly monitor moisture and active ingredients without stopping the tablet press.

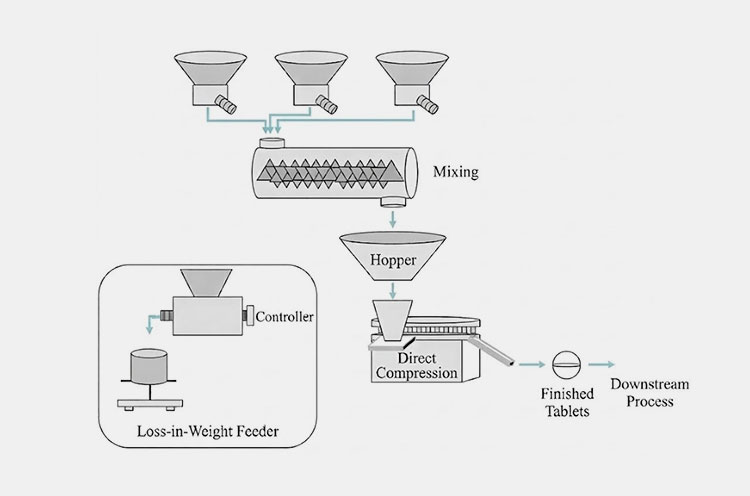

Continuous manufacturing for TCM tablets

Continuous manufacturing is the future of the pharmaceutical industry. Chemical drugs use this method easily today. But TCM powders are wild and unpredictable.

If you put raw TCM powder into a continuous blender, it will clog the feeding tubes. This is why you must use the particle design methods I mentioned earlier first. You must fix the powder before you upgrade the machine.

Once the powder flows well, we need smart machines. At AIPAK, we know that standard equipment is not enough for continuous lines. You need Process Analytical Technology (PAT) built right into the line.

These sensors act like eyes inside the machine. They check the powder every second. If the moisture is too high, the system adjusts itself. We do not have to wait for the batch to finish to test it.

This saves time and guarantees every herbal tablet meets strict GMP standards. Our downstream equipment, like blister packing machines and cartoning machines, depends on perfect tablets coming out of the press.

Conclusion

Mastering Particle Design is the definitive breakthrough for bringing Traditional Chinese Medicine into the era of Direct Compression. By transitioning from simple physical mixing to advanced particle engineering—such as constructing porous core-shell structures or applying nano-silica coating—manufacturers can finally overcome the inherent challenges of high hygroscopicity, poor flowability, and low compressibility. These strategies not only reduce the need for excessive excipients but also pave the way for high-dosage, stable, and high-quality herbal tablets. At AIPAK, we bridge the gap between complex botanical properties and streamlined industrial efficiency, ensuring your TCM products are as scientifically robust as they are effective.
