Optimizing Moisture Distribution in Wet Granulation Machine Layouts: A cGMP Guide for Pharmaceutical Manufacturing

1.How Can You Stop Moisture Issues at the Granulation Source?

If you dump liquid directly into powder, you create wet lumps. This mistake ruins your batch before drying even starts, leading to granules that are wet inside and dry outside.

You must atomize the binder using spray guns while mixing. This ensures every powder particle gets wet evenly. Using high-shear or fluid bed granulation equipment guarantees the material rolls and mixes thoroughly, preventing local wet spots and dry centers.

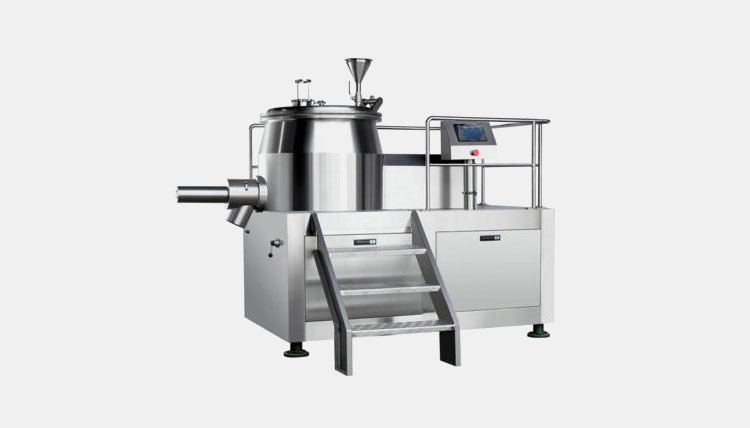

High shear mixer granulator internal view

We need to look closely at the granulation stage. This is where moisture enters the process. If you do not control it here, you cannot fix it later. Based on my experience with AIPAK high shear mixer granulators, the method of adding the binder is the most important factor.

Direct pouring of liquid binders into the granulation vessel must be strictly prohibited, as localized fluid concentration prompts the formation of hyper-moist, high-density agglomerates that resist uniform downstream dehydration.

Process compliance requires utilizing a pneumatic atomizing nozzle to break down the liquid binder into a calibrated micro-mist. Concurrently, the bottom impeller must operate at optimal kinetic velocities to lift the powder bed, while the high-speed chopper breaks up initial micro-agglomerates to guarantee uniform mechanical dispersion of moisture.

You also need to check your materials before you start. Some powders absorb water fast. Others do not. If you have a mix of these, you must premix them very well. If you do not, the absorbent powder will take all the water. The other powder will stay dry.

Here is a simple checklist for the granulation stage:

When you open the granulator, look at the material. It should have a consistent color. If you see white spots, those are dry powders. If you see dark spots, those are wet lumps. You must mix until the color is the same everywhere.

2.Why Is the Drying Method Critical for Moisture Uniformity?

Using a tray dryer often leads to uneven results. The outside dries, but the inside stays wet. This causes "false drying" and leads to problems during tableting.

Fluid bed drying is the best choice. It suspends particles in air, ensuring every granule gets the same heat. If you use ovens, you must flip trays often. Always start with low heat to remove surface water, then increase temperature to dry the core.

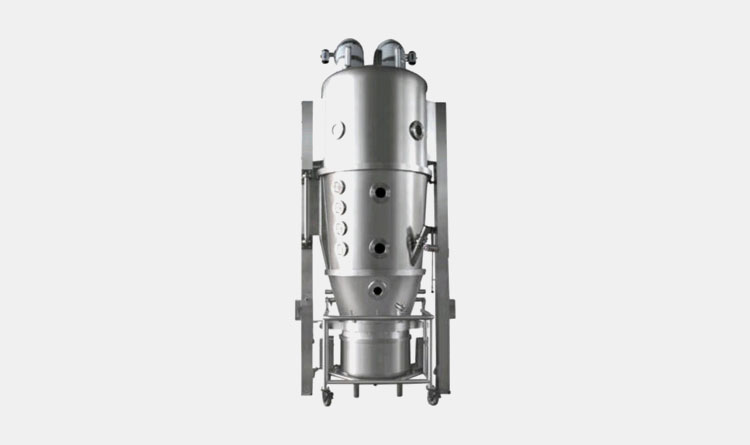

Fluid bed dryer schematic

The thermal dehydration phase represents a critical process vulnerability where structural non-uniformity standardly originates. Legacy static tray convection ovens introduce significant thermodynamic limitations, as conductive heat transfer is localized along the tray perimeters, leaving the central core material cold and over-wetted.

Mitigating this gradient variance within static environments necessitates continuous manual inversion and tray rotation, escalating operational labor costs and increasing the risk of cross-contamination.

This is why I always recommend Fluid Bed Dryers (FBD) for pharmaceutical production. In an FBD, the hot air comes from the bottom. It lifts the granules up. The granules float in the air. This is called "fluidization." Every single granule touches the hot air on all sides. The drying is very fast and very even.

However, you can still mess up with an FBD. You must control the temperature carefully. Do not start with high heat. If the air is too hot at the start, the outside of the granule dries instantly. It forms a hard shell. The water inside gets trapped. We call this "case hardening" or "false drying." Later, that water will come out and ruin your tablets.

You should follow this temperature strategy:

1.Start Low: Use lower temperatures and high airflow. This removes the surface water gently.

2.Ramp Up: Slowly increase the temperature to pull water from the core.

Over-drying must be systematically prevented; excessive moisture extraction compromises particulate binding forces, causing granules to fracture into an excessive volume of fines. These fine powders display uncalibrated moisture adsorption kinetics relative to dense granules, aggravating structural non-uniformity.

Furthermore, localized moisture gradients naturally occur within a single dried batch due to equipment spatial variations. Direct transferring of an un-blended batch to the tablet press hopper provokes extreme volumetric weight variations across the final solid dosage forms.

Comparison of Drying Methods:

3.How Does Final Blending Fix Remaining Moisture Variations?

Even with good drying, some spots in the batch will naturally be drier than others. Skipping the final blend leaves these slight inconsistencies in the mix.

You must run a final mix using a bin blender or double-cone mixer for 10 to 20 minutes. This "pulls" the moisture levels together. Afterward, let the sealed batch sit for 30 minutes to allow the moisture to equilibrate between particles.

Bin blender mixing process

Many people think mixing is only for adding lubricants like magnesium stearate. This is wrong. The "Total Blend" or final mixing stage is a powerful tool for moisture control. Imagine you have a large batch of dried granules. Maybe the granules near the filter bag were slightly drier. Maybe the granules at the bottom were slightly wetter. If you go straight to the tablet press, your tablet weight will jump up and down.

You need to put the whole batch into a mixer. At AIPAK, we recommend Bin Blenders or V-Blenders for this. You should run the mixer for about 10 to 20 minutes. This three-dimensional movement mixes the drier particles with the wetter particles.

Sustaining an airtight equilibration window directly follows the core blending operation. Upon completing the three-dimensional geometric blending cycle, the container must remain fully hermetically sealed for a minimum of 15 to 30 minutes. This precise holding window utilizes natural capillary migration dynamics, permitting vapor pressure stabilization to equalize moisture levels between contiguous particles and establish absolute batch equilibrium.

Also, pay attention to sieving. Before the final mix, you should pass the dried granules through a sieve or a cone mill. This breaks up any large clumps that might still be wet inside. If you leave big clumps, they will break open during compression and release moisture. This causes the granules to stick to the punch tooling.

Steps for Perfect Final Moisture:

1.Sieving:Break down large agglomerates.

2.Blending:Mix for 10-20 minutes in a closed container.

3.Resting:Wait 15-30 minutes for moisture migration.

4.Sealing:Keep it closed until the tablet press is ready.

4.How Do Environment and Rapid Testing Ensure Quality?

A humid production room can ruin your perfectly dried granules in minutes. Ignoring room conditions negates all your previous hard work and leads to sticky granules.

Keep your production room humidity between 45% and 60%. Store granules in sealed containers immediately. For a quick check, squeeze a handful of granules. They should form a clump but break easily, with no hard cores or sticky surfaces.

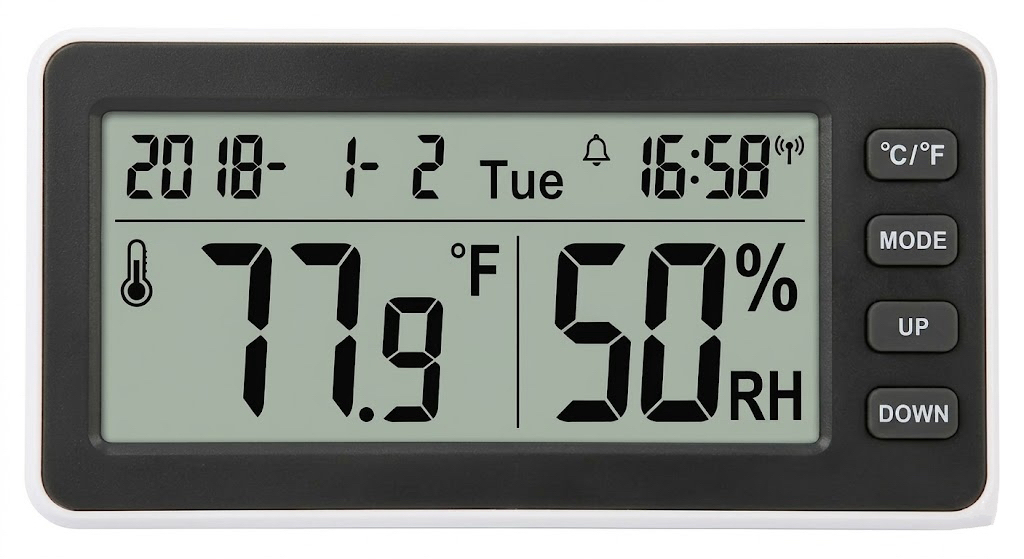

Digital hygrometer showing 50% humidity

Ambient processing environments represent a persistent external risk due to the hygroscopic nature of dehydrated granules. Elevated ambient relative humidity (RH) triggers rapid surface moisture adsorption, causing material tackiness and terminal tooling picking. Conversely, excessive environmental dryness provokes moisture desorption and high electrostatic charges. Strict cleanroom HVAC regulation must sustain relative humidity levels strictly within a 45 percent to 60 percent baseline tolerance.

The standard recommendation is a Relative Humidity (RH) of 45% to 60%. If it rains outside, check your room sensors. Do not leave the granules in open drums. Use airtight lids with gaskets. Do not let fans blow directly on the material.

While quantitative moisture analysis relies on loss-on-drying (LOD) infrared instrumentation or Karl Fischer titration, qualitative floor assessment protocols offer immediate structural feedback for operational verification. Granular mass passing structural assessment should present a uniform color profile free of visible agglomeration or non-blended dry core fines, demonstrating low surface adhesion upon compression.

The Hand Test Procedure

1.Grab a handful:Take granules from the dryer or mixer.

2.Look:Is the color consistent? Are there any dark wet spots or white dry powder?

3.Squeeze:Close your hand tight. The granules should form a loose ball.

4.Push: Touch the ball gently with your thumb. It should crumble apart immediately.

Feel:Your hand should not feel sticky. The granules should not feel hard like stones.

If the granules pass this test, and you followed the machine settings I described, your moisture distribution is likely uniform. This saves you from downtime at the tablet press.

Environmental Control Summary:

Conclusion

Uniform moisture prevents tablet defects. Control it by spraying binders, using fluid bed dryers, final blending, and managing room humidity. This guarantees stable, high-quality pharmaceutical production.
