Custom Bin Blender Engineering: Overcoming High-Ceiling Architecture and Structural Loading Limitations for cGMP Solid Mixing

1.Why Did the Client Need an 800L Bin Blender for Dietary Supplements?

Do you want to expand your production but lack the right mixing capacity? Using small, inefficient blenders wastes time and limits your ability to grow your product lines.

The client needed an 800L bin blender to expand from bottling dietary supplements into mixing and capsule filling.

We provided the main unit along with extra movable bins of different volumes to give them flexible, large-scale production capacity.

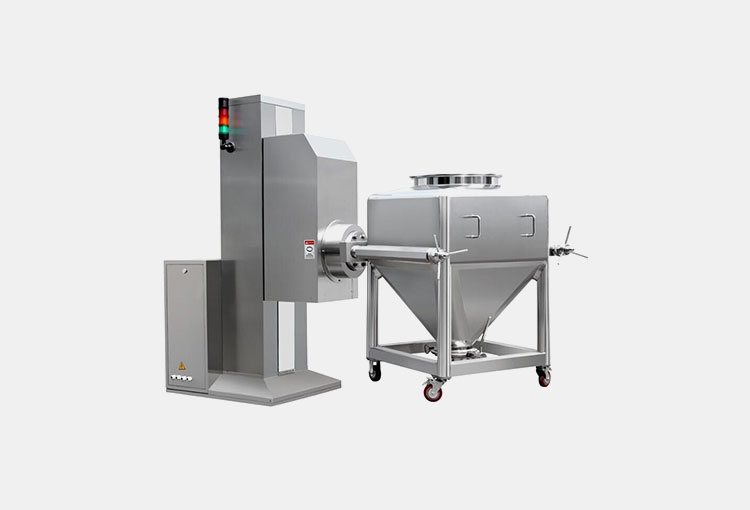

Dietary supplement bin blender

Transitioning a specialized manufacturing infrastructure from terminal supplement bottling into large-scale batch powder homogenization and downstream encapsulation requires a substantial escalation of material handling efficiency.

To fulfill complex user requirement parameters requiring frequent product batch transitions without cross-contamination bottlenecks, standard procurement frameworks deploy heavy-duty 800L tumbling matrixes configured with a scalable array of interchangeable, hermetically sealed product bins.

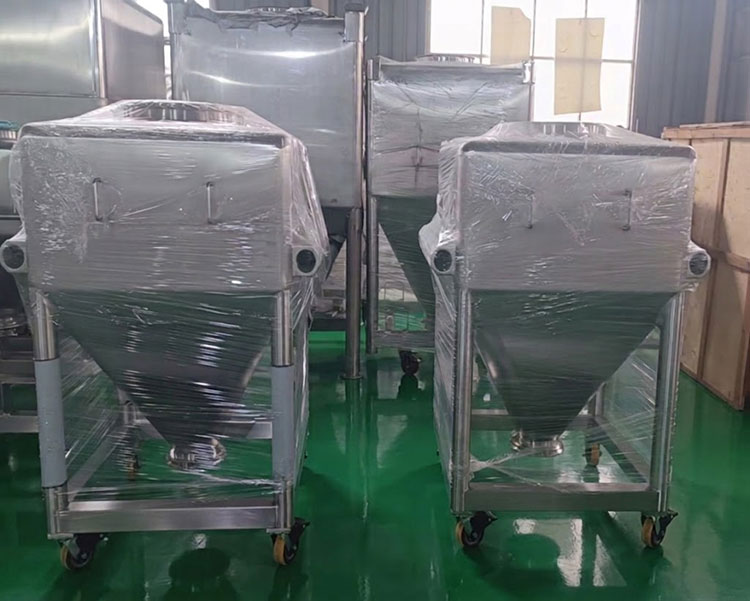

Other movable bins of different sizes

This dual-bin operational setup allows manufacturing operators to execute simultaneous mixing and cleaning cycles, establishing an un-interrupted powder delivery track directly to the automated capsule filling assembly while maintaining full adherence to strict international cGMP sanitation parameters.

We also made sure the machine met all health rules. All parts that touch the powder are made of 316L stainless steel. This completely meets strict GMP requirements.

For the electrical parts, we only use famous international brands. This guarantees the machine can run 24 hours a day, 7 days a week without stopping. We want our clients to have a machine that lasts a long time.

2.Why Did We Change the Client's Power Supply from Single-Phase to Three-Phase?

Are you using the wrong power supply for heavy industrial machines? A weak power setup can cause unexpected shutdowns, broken parts, and serious safety risks in your factory.

Power supply is a detail many buyers miss. When we discussed the technical details, I asked the client about their factory voltage. They told me they wanted to use 240V, 60HZ, 1-phase power.

But the 800L bin blender requires 6.2KW of power.A single-phase supply cannot handle this load safely. We strongly recommended a 3-phase power supply for better balance and machine stability.

The Danger of Overloading Single-Phase Power

The 800L bin blender has a power rating of 6.2KW. This is a very heavy electrical load. If you use a single-phase power supply for a 6.2KW motor, the current will be too high. The wires will get very hot. It might even start a fire or break the machine motors.

To prevent terminal electrical system failures and localized motor coil degradation under heavy 6.2KW induction loads, industrial mixing platforms must replace standard single-phase wiring infrastructures with balanced three-phase distribution grids.

Dividing the significant electrical load across symmetrical voltage phases compresses running current levels, preventing severe thermal aggregation within local wiring conduits and securing continuous, high-torque turret rotation during maximum material density blends.

The client understood the danger. They agreed to update their factory power setup. This simple change saved them from future breakdowns.

3.Why Was the 10.3-Meter Ceiling Height a Problem for Installation?

Is your factory building too tall or too old for standard equipment? Trying to force a standard machine into a unique building can waste money and delay your project.

The standard 800L bin blender uses a pillar fixed to the ceiling. But the client's factory had a ceiling height of 10.3 meters.

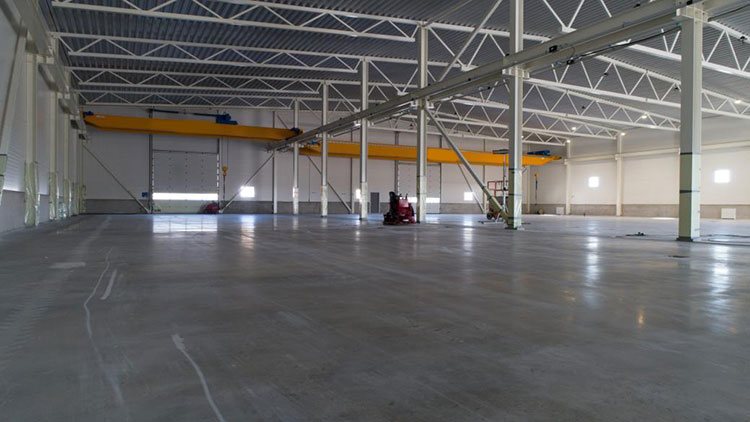

High ceiling factory structural challenge

This was much too high for a standard pillar. The normal installation layout was completely impossible for this room.

The layout drawings

After solving the power issue, I sent the layout drawings for the 800L bin blender to the client. Soon, the client replied with bad news. They checked their workshop space. The height from the floor to the ceiling was 10.3 meters.

Exploring Wall-Mounted Alternatives

Our standard design uses a strong metal pillar. This pillar connects the floor to the ceiling to hold the heavy blender safely. But a 10.3-meter pillar is too long. It would shake and be very unsafe. The standard plan failed.

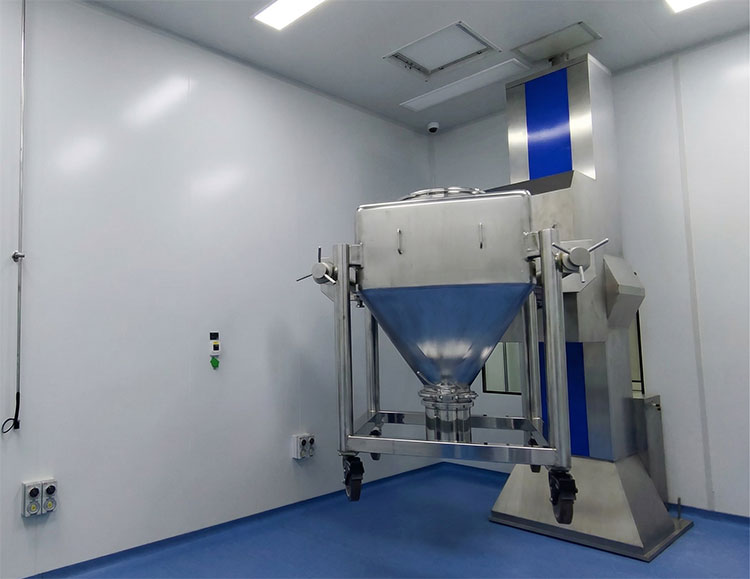

Standard design

When spatial constraints rule out standard ceiling-anchored stabilization pillars due to structural elasticity over long distances, engineering protocols evaluate side-wall mounting vectors as an alternative support plane.

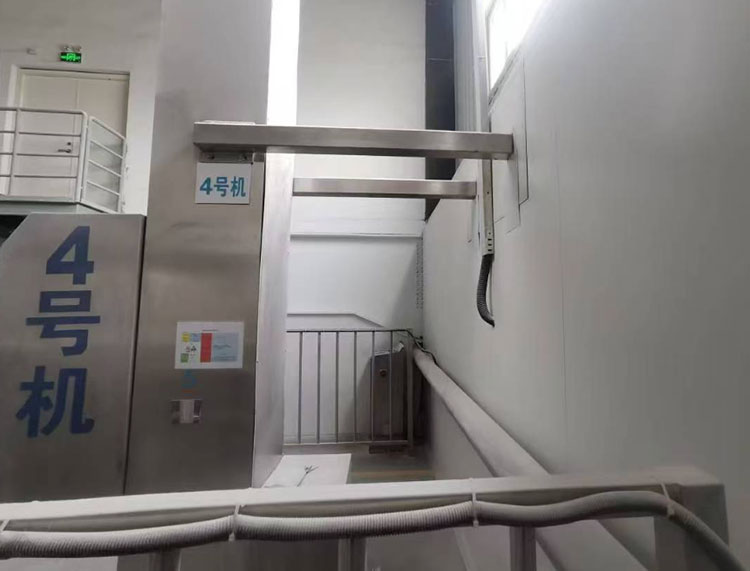

Fix the machine to wall

Utilizing heavy-gauge structural square hollow sections extended from the primary machine chassis allows for anchor mapping into contiguous structural walls, demanding a comprehensive compressive strength evaluation of the local masonry substrate to ensure long-term torque absorption.I needed to be sure the wall was strong enough to hold a spinning 800L blender.

4.How Did Diagonal Inclined Supports Solve the Weak Wall and High Ceiling Issue?

Are your factory walls too weak to hold heavy mixing equipment? If you cannot use the ceiling or the walls, you might think you have to rebuild your factory.

The client refused the wall-mount idea because they did not want to connect the support frame to their wall. They believed their factory walls were not strong enough to hold the heavy, moving weight of an 800L blender.

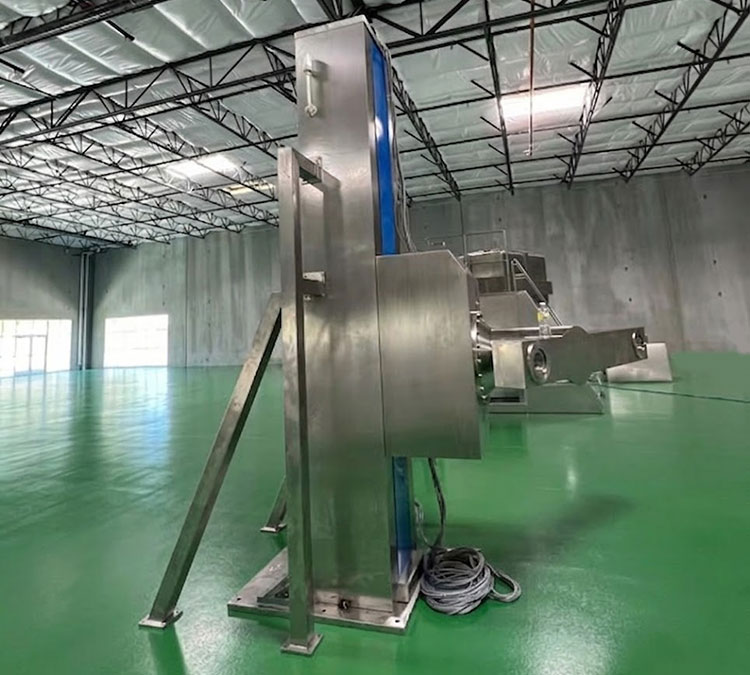

Diagonal inclined support bin blender

Our technical team designed a custom diagonal inclined support system. This standalone structure safely holds the 800L blender without touching the walls or ceiling, solving the complex installation problem perfectly.

Custom Design and Easy Assembly

To resolve structural installation challenges where both ceiling elevation markers and wall load limits fail to satisfy mechanical safety indicators, AIPAK's structural design group deployed a standalone, high-tensile diagonal inclined stabilization framework.

This engineered outrigger system redistributes dynamic kinetic forces directly downward into the reinforced factory floor slab via heavy-duty foundation baseplates, establishing a completely autonomous support matrix that bypasses external building interfaces entirely.

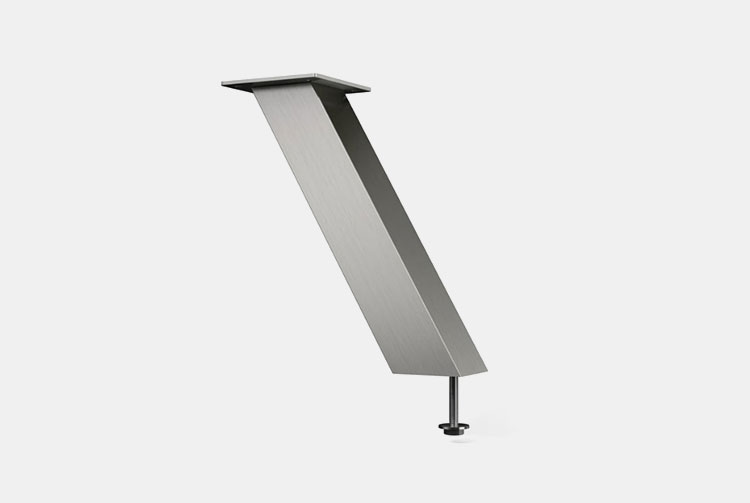

Custom angled supports

We decided to make all these custom angled supports in our factory. We packed them with all the bolts needed. When the client received the machine, they just used the bolts to put it together. They did not need to hire a special installation team. They did not need to pay extra money for setup.

To show our good faith for our first deal together, we gave them this custom support system completely for free. The client saw the new drawings and actual photos, felt very happy, and placed the order.

Conclusion

We successfully provided a custom 800L bin blender with a diagonal support system. This solved high ceiling and weak wall problems, ensuring a safe, stable, and GMP-compliant mixing process.Facing complex plant conditions or height limitations? Contact AIPAK’s engineering team today for a free 3D layout design and a customized installation proposal!
