50kg OSD Wet Granulation Line Layout Design Under Low Ceiling Constraints

1.What Equipment Fits a 50kg OSD Wet Granulation Line?

A complete 50kg OSD wet granulation line systematically integrates a high-speed mixer granulator, a fluid-bed dryer granulator, a vacuum-feeding lifting mill, a 100L bin blender, and a high-efficiency vibrating sieve to achieve automated, closed-loop solid dosage processing.

Choosing the wrong machines wastes your money. You need exact matches for a 50kg batch size. Here is the exact equipment list that works best.

A complete 50kg OSD line requires a GHL-150 mixer granulator, an FL-50 fluid-bed dryer, an NTZS-200 lifting mill, an HTD-100 bin blender, and a ZS-515 vibrating sieve. These machines work together to deliver fast and stable production.

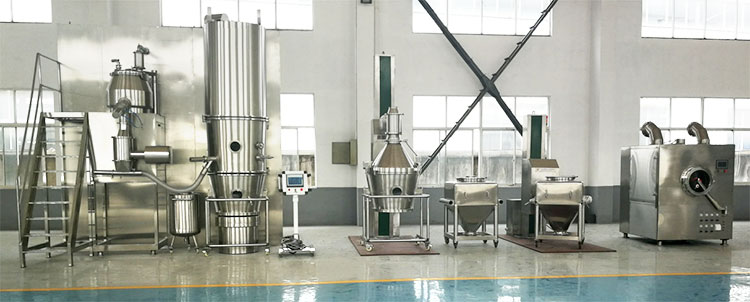

50kg OSD wet granulation line equipments

The Jordanian client had very clear needs. They wanted a highly efficient and stable 50kg production line. I knew we had to pick the right machines to fit their limited space. I also knew we needed to hit their exact capacity targets.

We designed a compact wet granulation line just for them. The wet granulation process is the most important step for making solid pills. You must get it right.

Here is the exact equipment list I recommended:

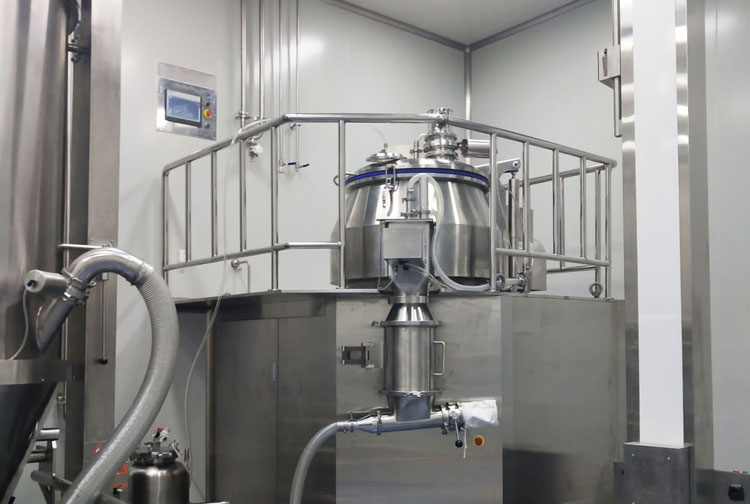

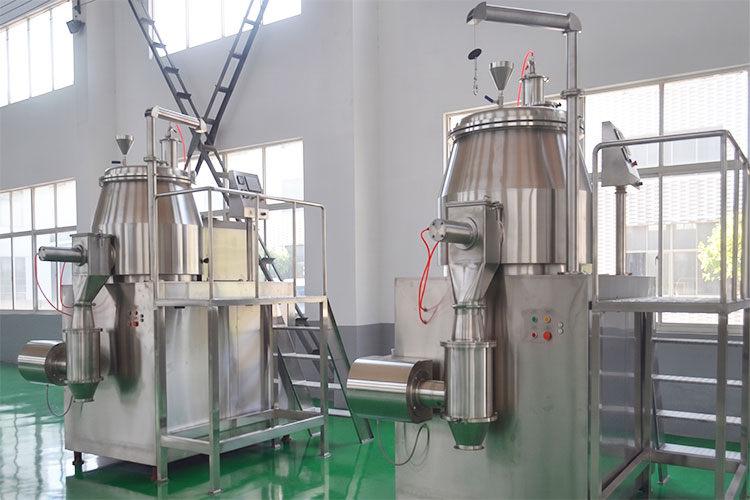

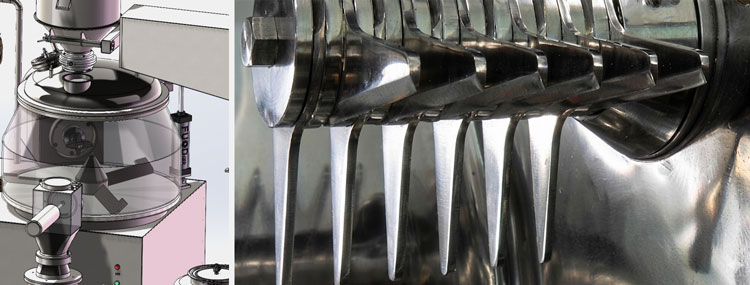

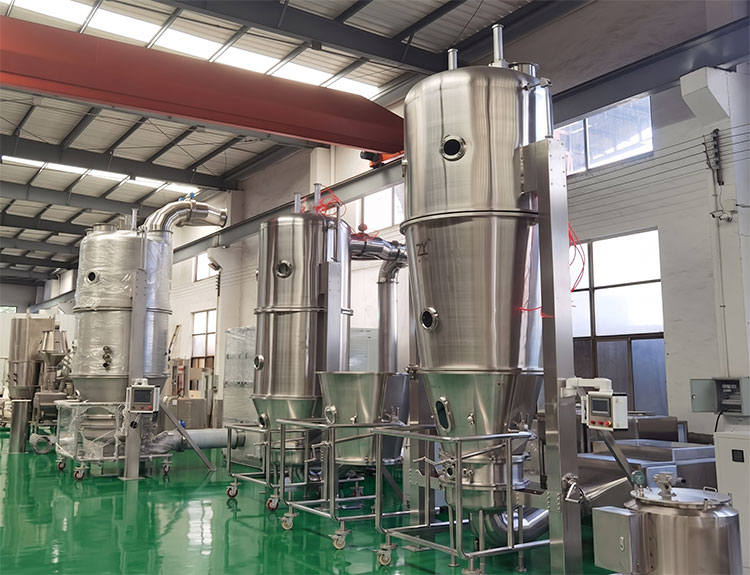

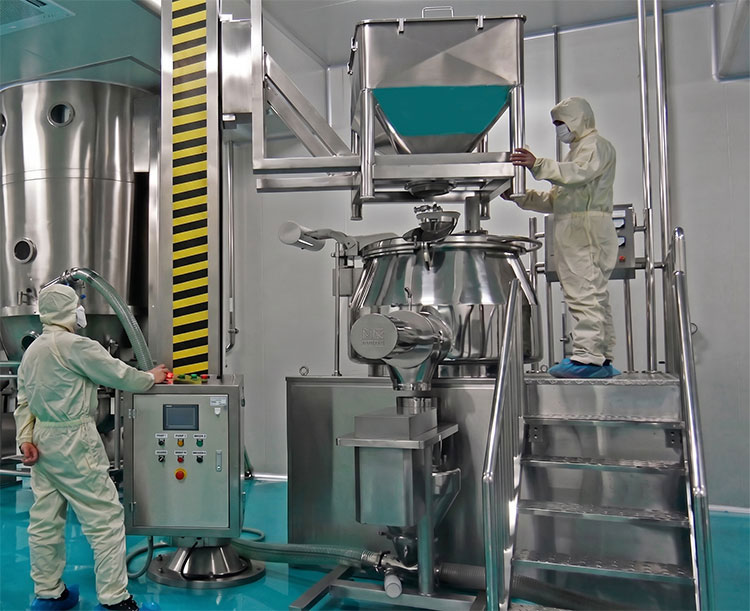

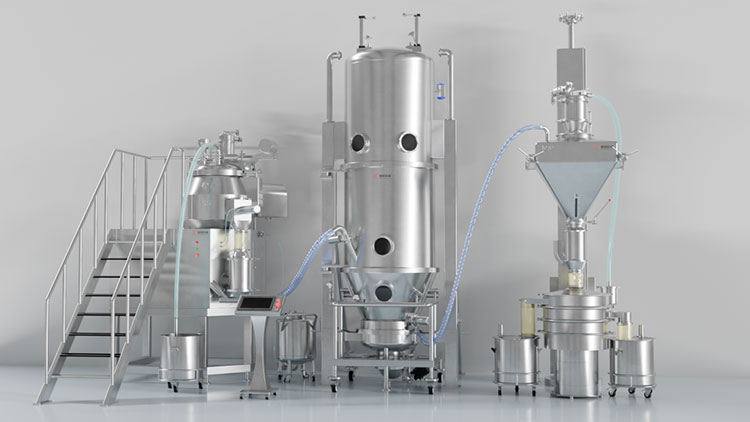

GHL-150 High speed mixer granulator and FL-50 fluid-bed dryer

I chose the GHL-150 and GZL combination to handle the wet mixing perfectly. The FL-50 fluid-bed dryer handles the 50kg batch size with ease. The NTZS-200 milling machine moves the product safely.

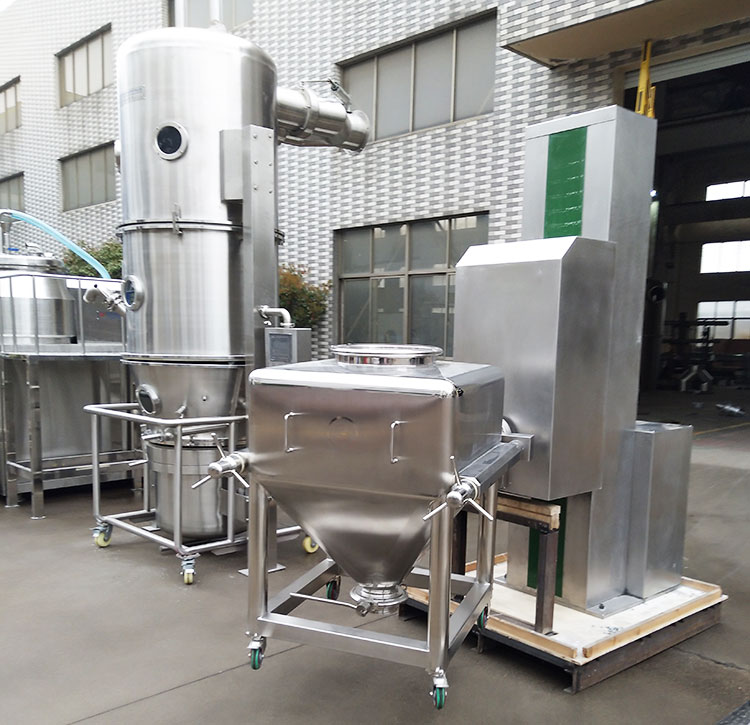

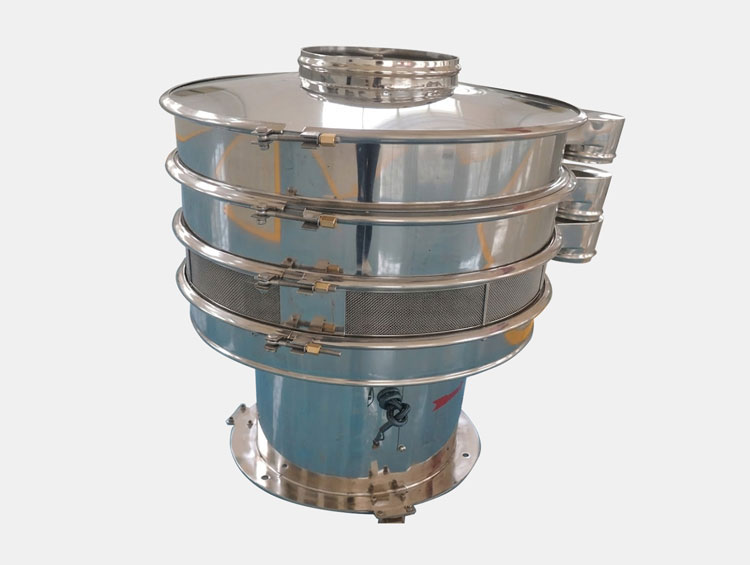

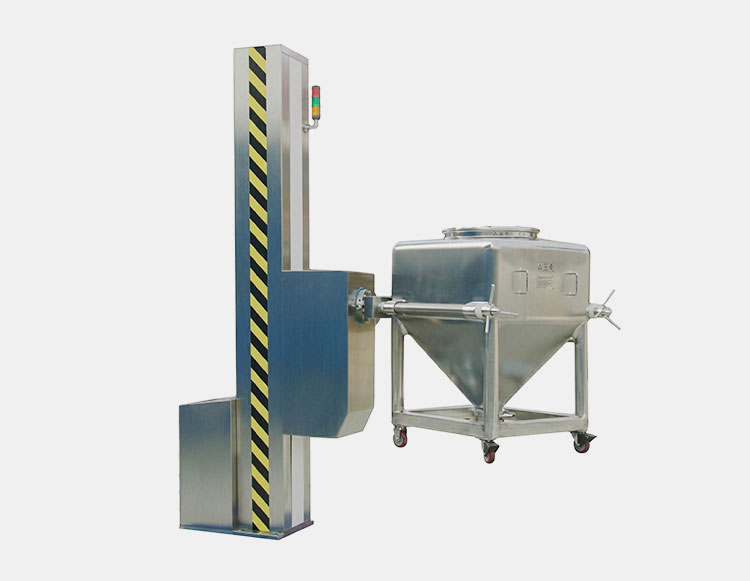

HTD-100 bin blender and ZS-515 vibrating sieve

The HTD-100 bin blender mixes the final powders. Finally, the ZS-515 vibrating sieve ensures all particles are the right size. This setup gives the client maximum output in their limited factory space.

2.How Do You Solve the 2.8m Ceiling Height Problem?

Low ceilings stop many factory upgrades. A 2.8-meter room cannot fit standard 50kg dryers. But you do not have to rebuild your entire factory to fix this.

We solved the 2.8-meter ceiling limit by checking the true concrete height, which was 4 meters. We installed the fluid-bed dryer through the drop ceiling to use the extra 1-meter space above. This allowed the 50kg machine to fit perfectly.

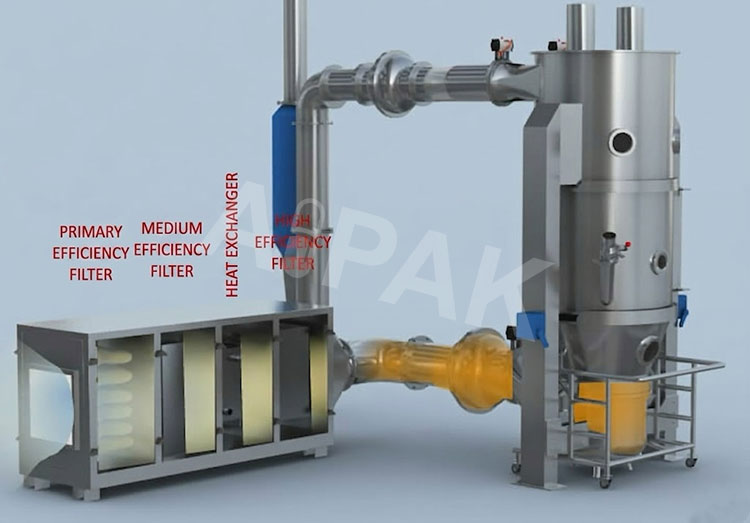

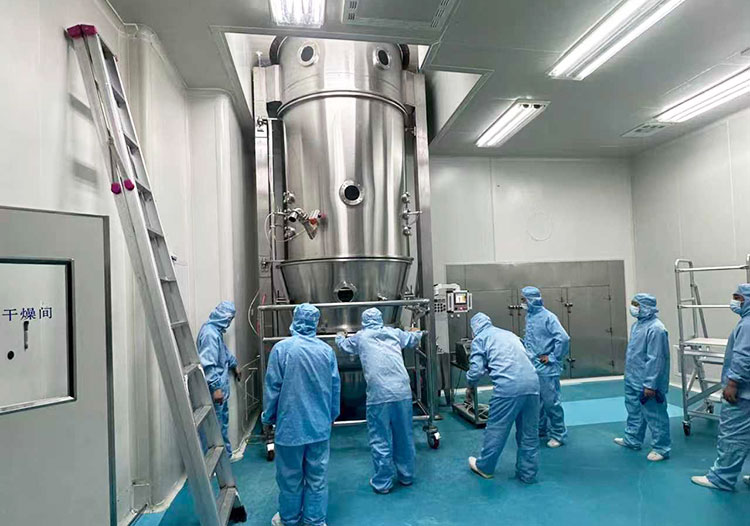

Overcoming 2.8m ceiling limits for fluid bed dryer

Space is always a big issue in older pharmaceutical plants. After I sent the equipment list, I asked the client about their room height. The client told me the factory ceiling was only 2.8 meters high. This was a big problem.

A 2.8-meter room can only fit a small lab-scale fluid-bed dryer. A lab machine only handles 5 to 10 kilograms per batch. The client needed a 50kg batch. The FL-50 fluid-bed dryer needs at least 3.8 meters of height to work safely.

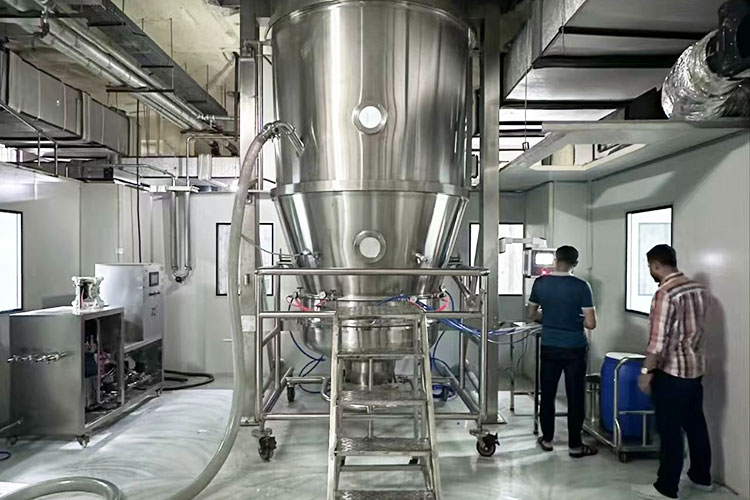

I had to find a quick solution. I asked the client if we could break through the ceiling. I also asked for the height of the real concrete roof. The client confirmed the true concrete roof was 4 meters high.

I sent the client pictures of how we installed machines for past customers. I showed them how to leave a 1-meter space above the drop ceiling. We can mount the top parts of the FL-50 dryer directly on the wall.

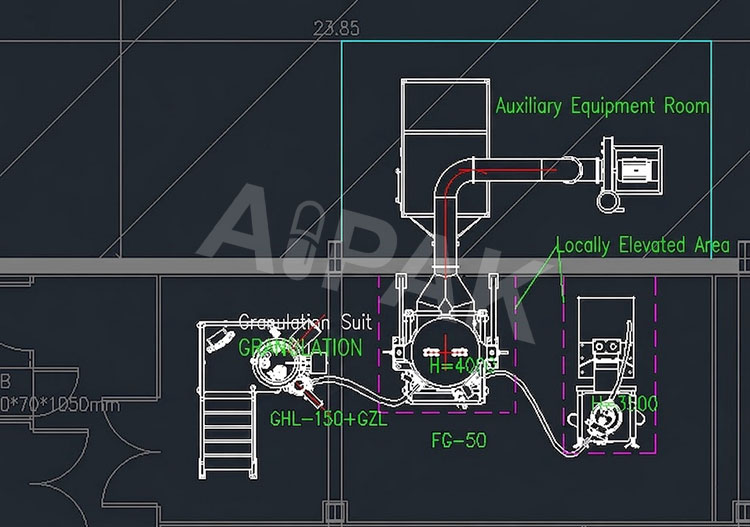

The wall-mounted design keeps the floor clean. It also makes maintenance much easier for the workers. The client saw the pictures and agreed. This installation method is very safe and reasonable. We then updated the factory layout drawings to match this new plan.

3.Why is CFR 21 Part 11 Important for This Pharma Layout?

Manual records cause bad errors. FDA rules demand strict data tracking. You must plan for compliance before you install any new pharmaceutical machines.

CFR 21 Part 11 ensures that all your production data is traceable and secure. We integrated this standard into the entire 50kg OSD line. This automates the controls, reduces human error, and keeps the plant ready for any strict audit.

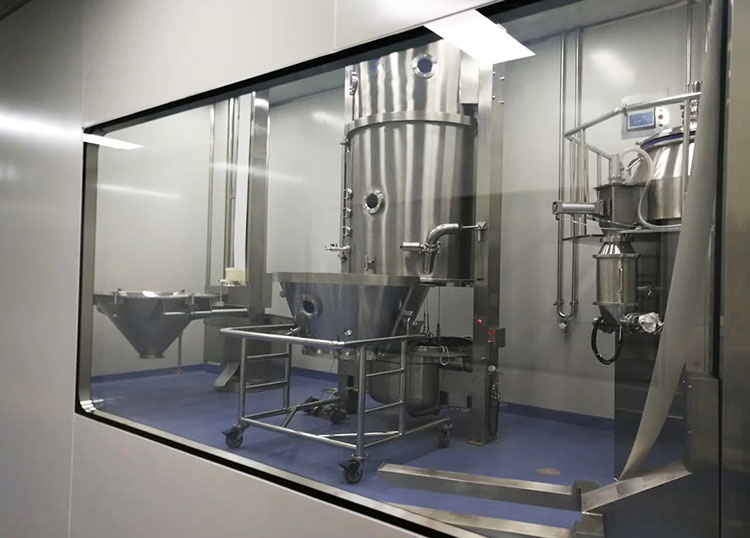

CFR 21 Part 11 compliance in pharma OSD line

The Jordanian client had another strict rule. They needed the whole production line to meet the CFR 21 Part 11 standard. This standard is very important for modern pharmaceutical plants.

It deals with electronic records and electronic signatures. When the FDA or local health inspectors visit the plant, they want to see clean records.

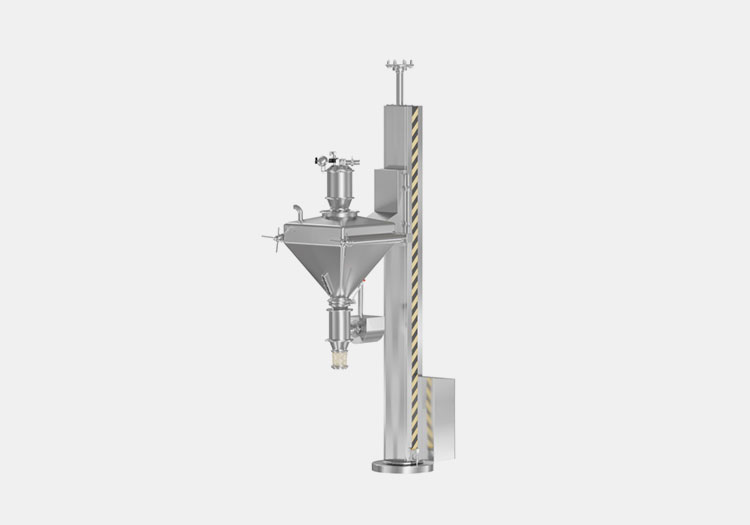

NTZS-200 Lifting vacuum feeding milling machine

I made sure every machine on this list could talk to the main computer system. The NTZS-200 lifting mill integrates smoothly with the granulator and the dryer. This integration allows the system to control the machines automatically.

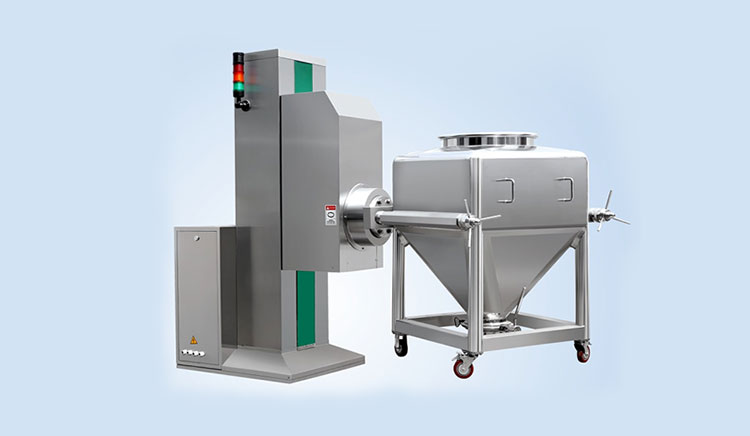

AIPAK’s HTD-100 bin blender

The HTD-100 bin blender also tracks every single batch. The system records the mixing time, the speed, and the operator details. You cannot change or delete these records. This data traceability lowers the risk of human mistakes.

If an operator makes a small error, the computer logs it immediately. The plant manager can see everything that happens on the floor. This level of automation makes the factory much safer.

It also makes sure the final medicine is always top quality. I always tell my clients that investing in good software is just as important as buying strong machines.

4.How Can Expert Design Save Your Pharmaceutical Project?

Bad factory layouts cost time and ruin your production flow. You need an expert eye to spot hidden space and fix layout issues early.

Expert design saves your project by matching machine sizes to your exact room limits. We use our experience from dozens of past projects to create a layout that maximizes your output. This ensures you start production quickly and safely.

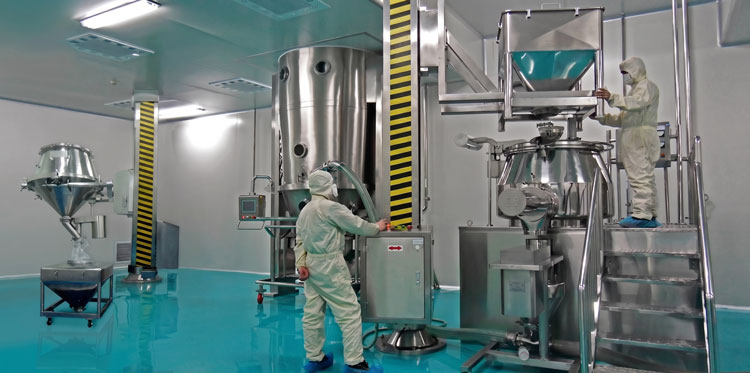

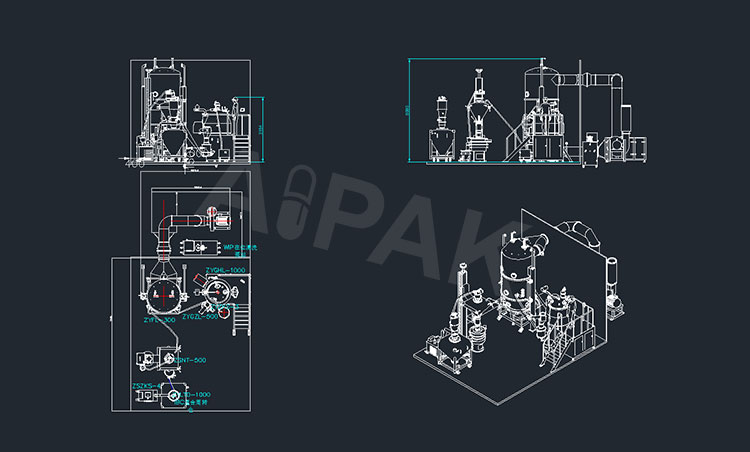

Expert layout design for pharma wet granulation line

Designing a solid dosage production line is never easy. You cannot just buy machines and put them in a room. You need a smart plan.

I shared many past project photos and layout plans with this Jordanian client. I told them that my team has designed dozens of wet granulation lines. We work with many dietary supplement and pharmaceutical clients all over the world.

We know how to handle different space limits and different capacity goals. We lower your risks by planning every detail before the machines leave our factory.

My goal is always to maximize your space and your production output. I look at the room dimensions, the ceiling heights, and the workflow. I arrange the machines so the powder flows easily from one step to the next.

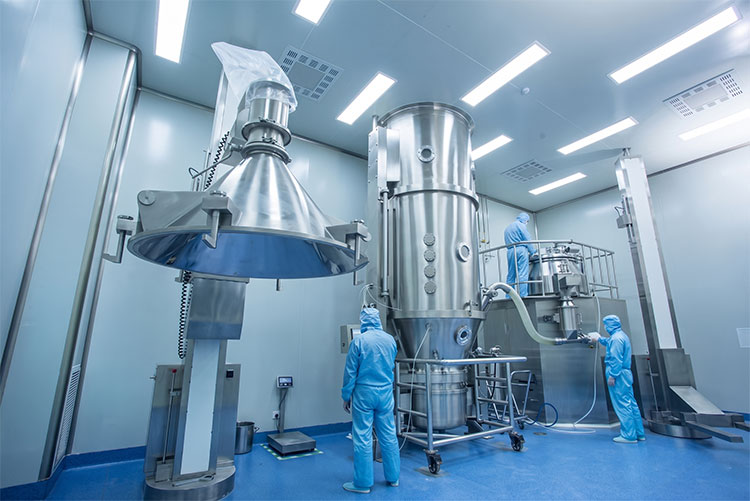

We also provide full technical support from the very first day. We help you choose the machines, design the room, install the equipment, and test everything.

We stay with you until the machines run perfectly. This full service ensures you can start making your medicine fast. A good partner saves you time, money, and stress.

Conclusion

We successfully customized a 50kg OSD wet granulation line for a Jordanian plant. By using the 4-meter concrete ceiling, we bypassed the 2.8-meter limit and ensured full CFR compliance. Planning a new OSD production line but hitting a brick wall with low facility ceilings or restrictive cleanroom layouts? Don't downsize your capacity goals for rigid, off-the-shelf hardware. [Click here to request a Free 3D OSD Facility Layout Consultation and let AIPAK’s engineering experts turn your architectural bottlenecks into seamless operational triumphs today!
