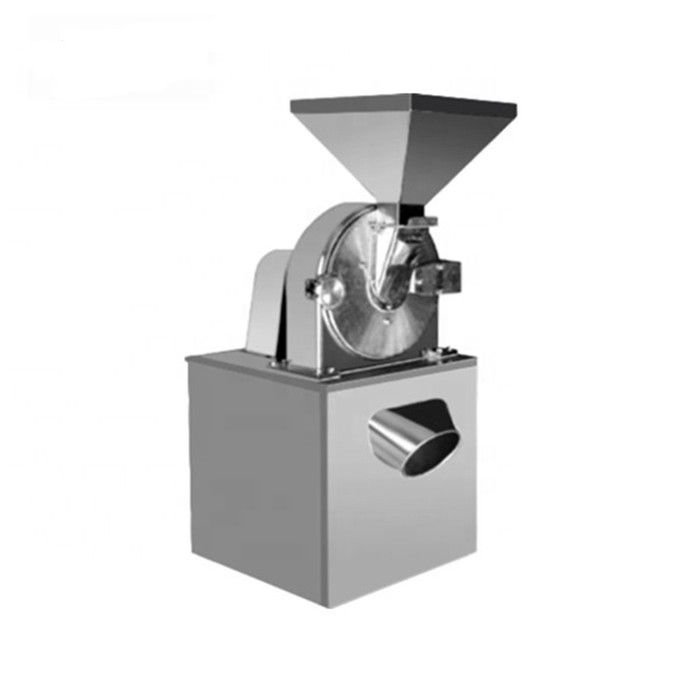

TF Series Herb Crusher

The herb crusher is made with stainless steel. Its smooth inside can prevent powder sticking and also easy cleaning. This is fulfill the requirement of GMP.

It is applied to crush flexible, fragile and fiber materials, whose Mohs’Hardness is less than 3, such as Chinese Traditional and Herbal Drugs, dyestuff, paint and food additive.

FEATURE

The machine utilize high-speed relative movement between the moveable and fixed gear plates,so as to make the materials crush under the impact and friction of gear,as well as impact between materials.
The machine is characterized by simple and sold structure,smooth operation and good crushing effect.Materials to be crushed can be discharged from the grindingcavity of the main machine.
The internal walls of the casing are subject to mechanical machining to achieve smooth surface,changing roughness and residual powers of inner walls in previous models of machines.It can make the production of machine,food and chemical products meet the national standards and GMP requirements.

DATA SHEET

Model	TF-20	TF-30	TF-40	TF-60	TF-80
Production Capacity(kg/h)	20-150	30-300	40-800	80-1200	150-2000
Spindle rotation speed	4500	3800	3400	3000	2100
Charging granularity(mm)	6	10	12	15	20
Crushing fineness(mesh)	12-120	12-120	12-120	12-120	12-120
Motor power(kw)	4	7.6	11	22	30
Overall dimensions(mm)	700x900x1500	800x1100x1700	850x1200x1850	950x1300x1950	1100x1000x2100
Weight(kg)	250	350	450	800	1200
