SEM-100II Softgel Encapsulation Machine - Image 3

SEM-100II Softgel Encapsulation Machine - Image 4

SEM-100II Softgel Encapsulation Machine - Image 5

SEM-100II Softgel Encapsulation Machine - Image 6

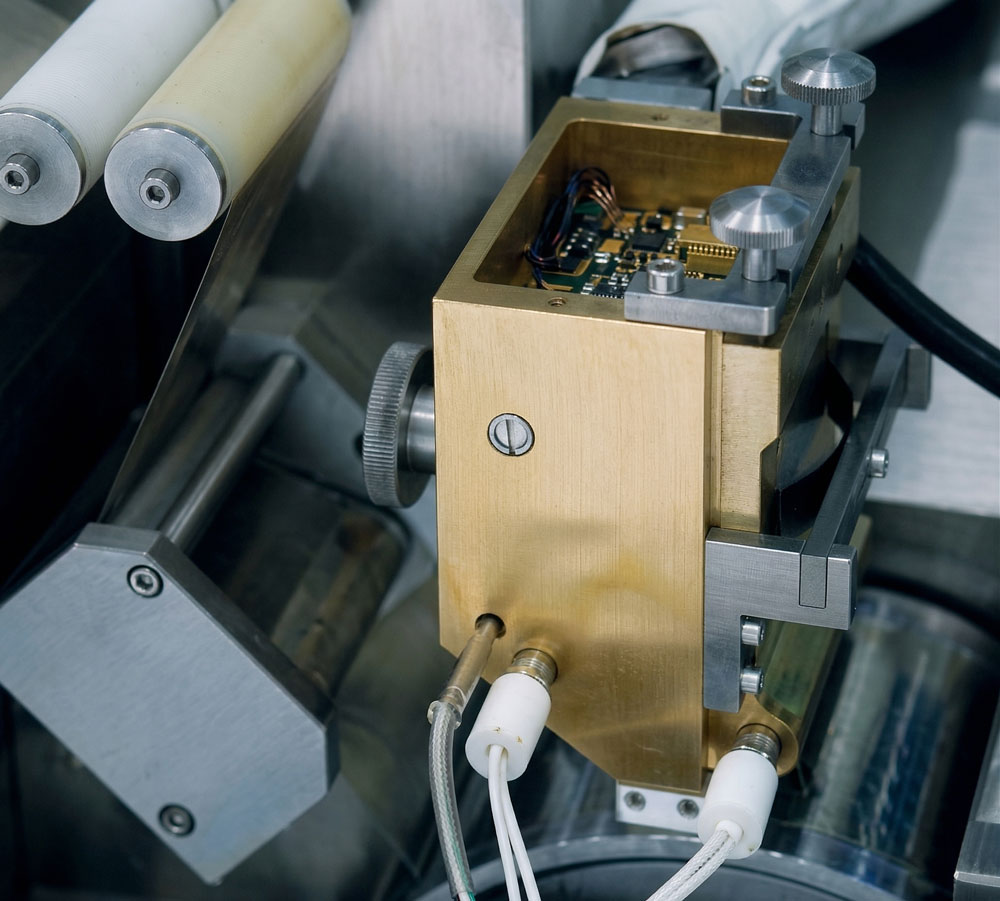

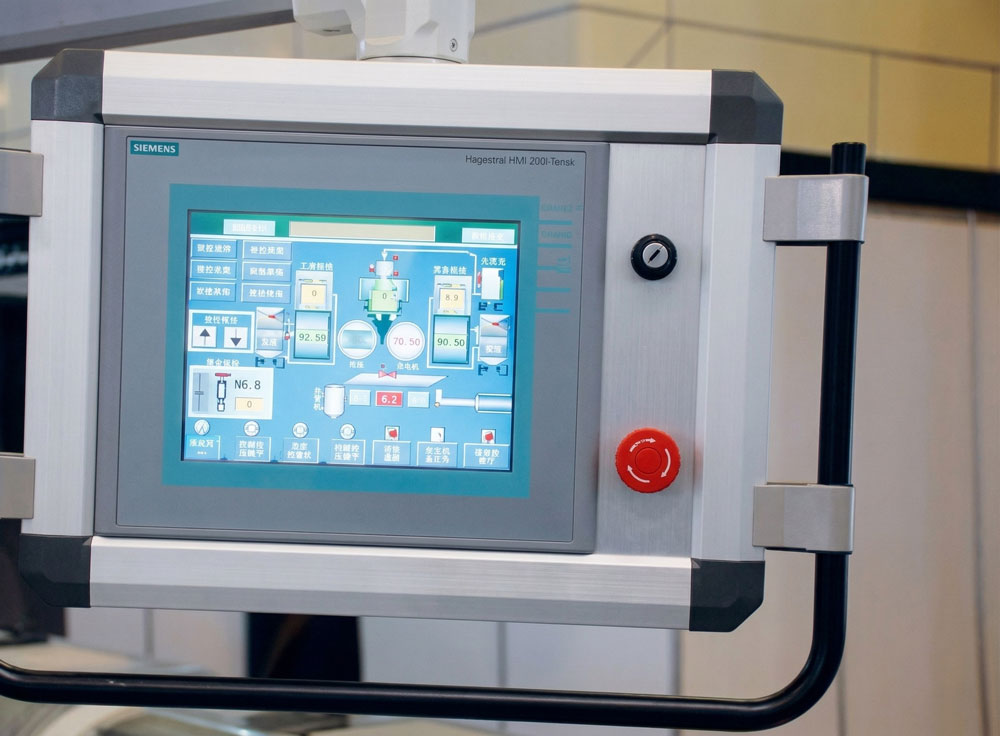

Automatic monitoring of temperature

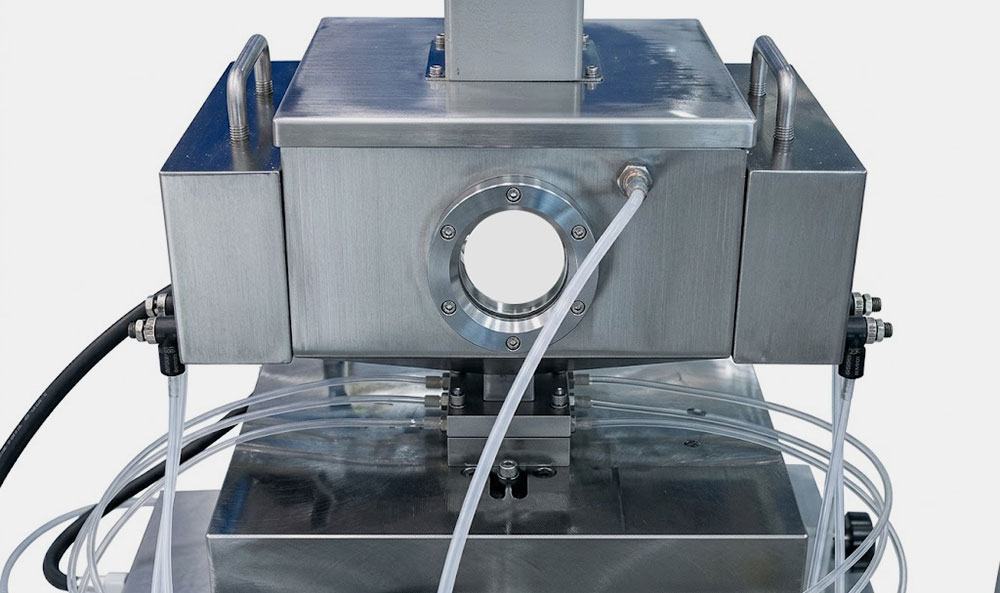

Vacuumgelatin dissolving and pneumatic conveyer

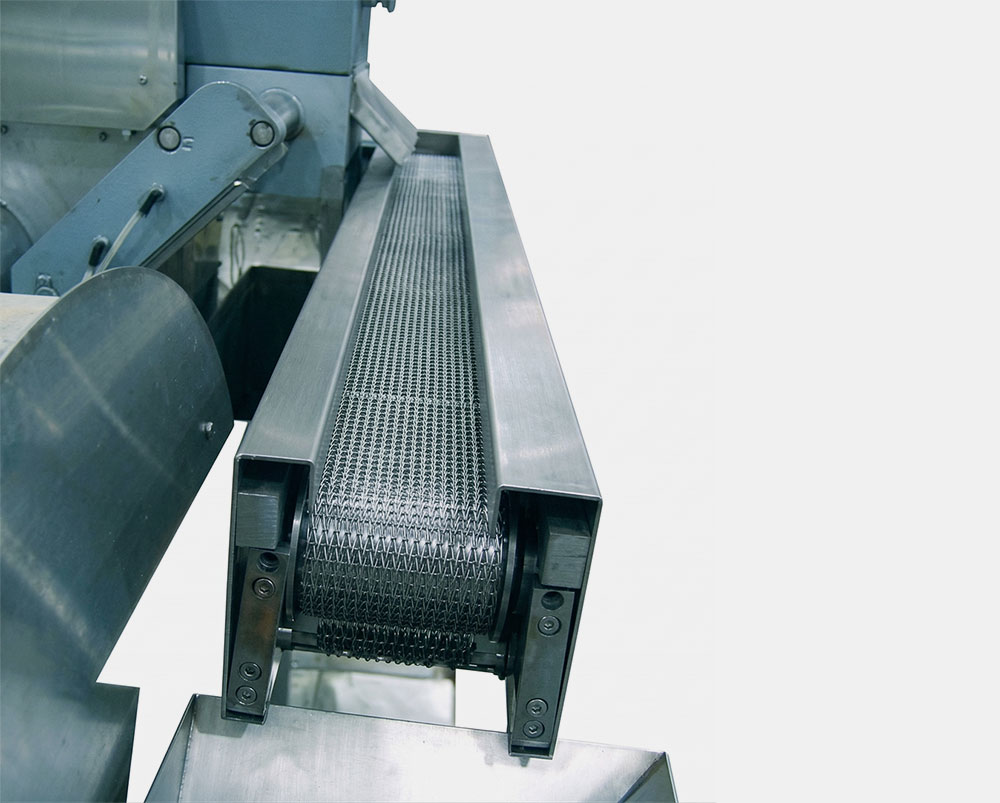

Horizontal feeding system

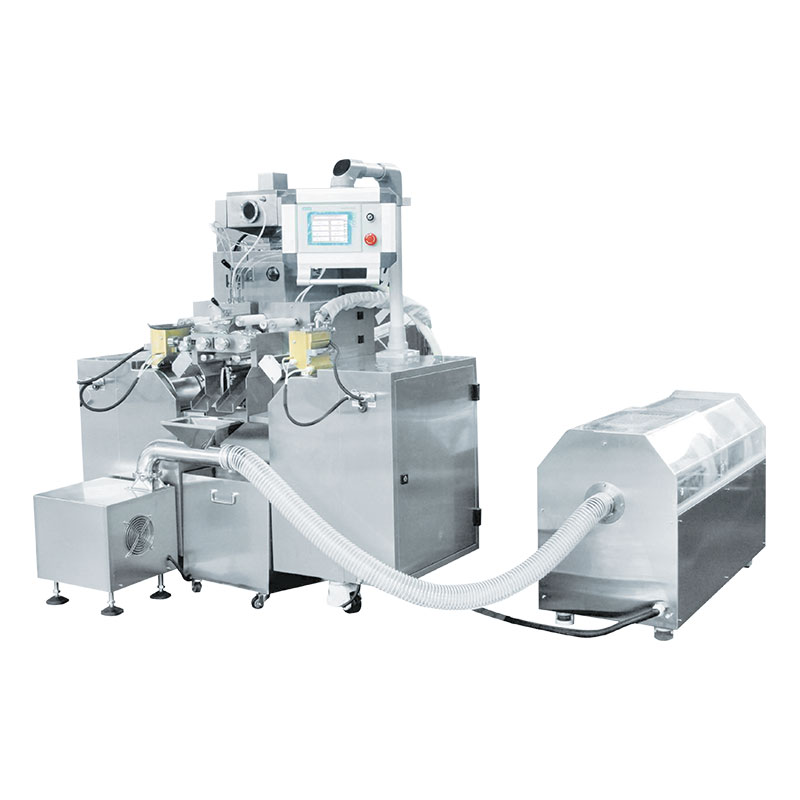

SEM-100II Softgel Encapsulation Machine

SEM-100II Softgel Encapsulation Machine is mainly used for laboratory and research institutions capsule drug product development trail, can be used as pharmaceutical ,health care products factory , food factory test equipment ,aircraft using a variety automatic control technology ,simple operation function stable and reliable, machine meet GMP standards, models small function ,superior

Common Series Die Rollers Parameters

Shape	Loading	Die roll number	Max. throughput	Loading	Die roll number	Max. throughput	Loading	Die roll number	Max. throughput
Cylinder	4	125	30,000	6	115	27,600	8	66	15,840
	10	60	14,400	16	57	13,680	18	38	9,120
	20	34	8,640
Oval	4	110	26,400	6	100	24,000	8	95	22,800
Oval	10	72	17,280	20	45	10,800
Tube	6	92	22,080	8	63	15,120	10	57	13,680

FEATURE

This series of machines integrate electric heating, automatic monitoring of temperature, vacuumgelatin dissolving and pneumatic conveyer horizontal feeding system.
Total altitude is the distance from gelatin wheel to the top of the motor reducer.
Nylon universal wheel on the supporting leg provides easier movement, simpler operation andenhanced security.
The machine is equipped with vacuum meter, pressure gage, liquidometer, digital display oftemperature control and other measuring and control instruments.
One double-head material filling tube (External diameterd25mm) is installed on the exit ofdischarging area.

DATA SHEET

Model Name	SEM-100II
Dimension	1440x660x1350mm(LxWxH)
Weight	400kg
Power	5Kw,380V/60Hz/3Ph(can be modified as needed)
Plunger Qty	6 plungers
Filling Volume	0-1.5ml
Filling Precision	±1.5%
Die Roll Size	Φ80x100mm
Die RollSpeed	5RPM(Maximum)
