• High Quality Automatic

  • High Speed Effective

  • High Productivity

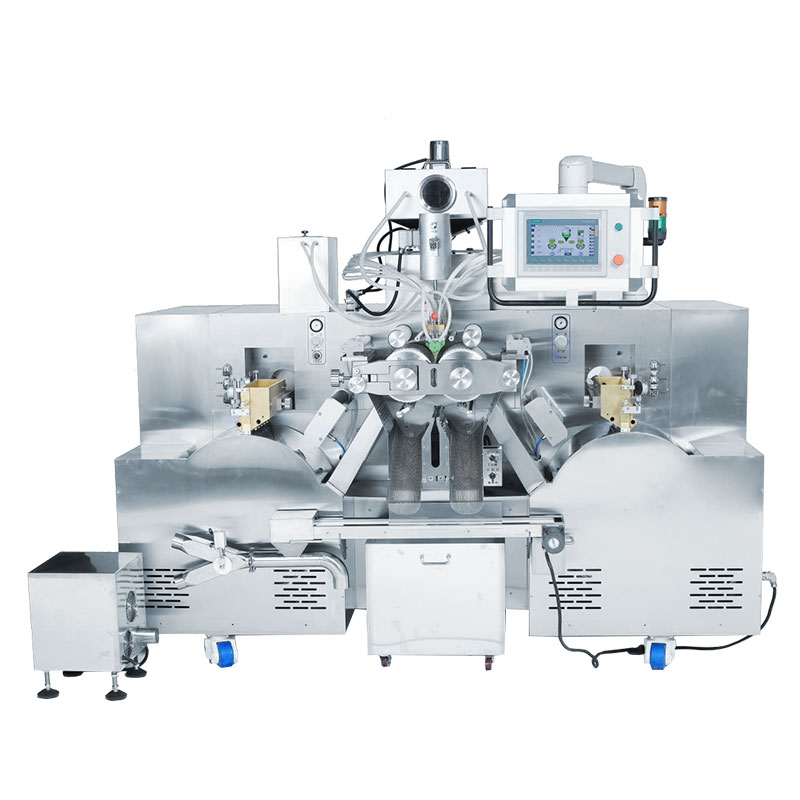

SEM-250 Softgel Encapsulation Machine

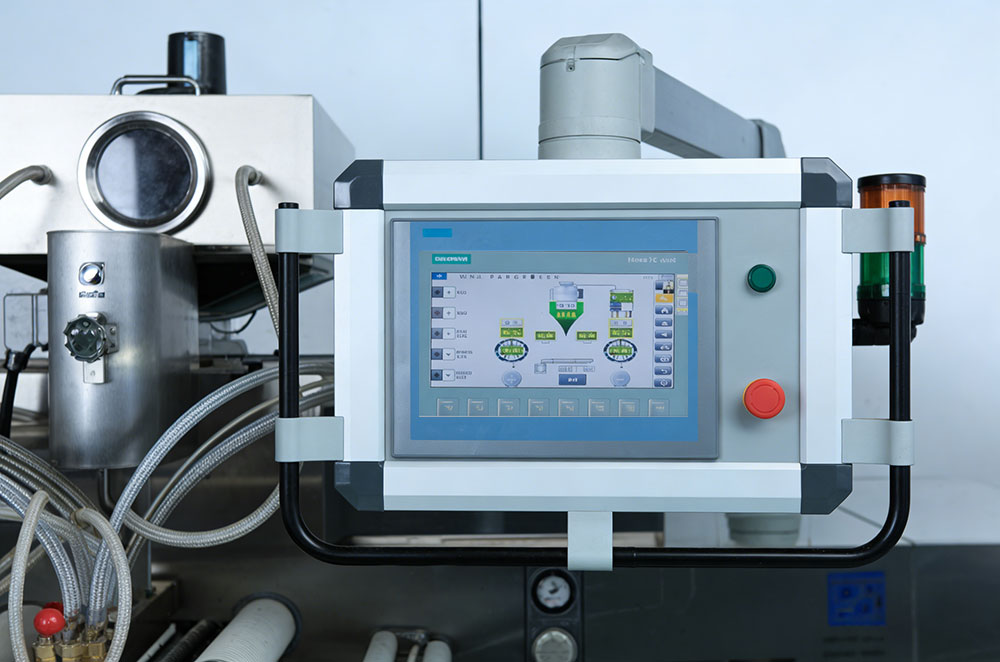

SEM-250 Softgel Encapsulation Machine,the output  is 6000 pieces / hour.It is easy to operate , the control system is Simens+ PLC full touch . Fast with production ,all of the electronic component is imported from German, the PLC transducer and power transformer are stabe. at the same time, the redundancy technology is used in the system and also it has the self-diagnostic funstion.

FEATURE

  1. Cold system with integrated cooling fan .
  2. Low energy consumption ,convenient installation the temperature accuracy.
    Machine model suitable for small laboratories .
  3. Low noise ,high accuracy (loading error is less than +/-2%), to solve the problem with the waste of raw materials , raw materials can do more times the same experiment.
  4. This machine adopt 50Hz frequency control ,roll-mode speed 0-2.5 RMP. 2 Plunger feed, single plunge feed rate 0-1.5ml.

DATA SHEET

Model Name

SEM-250

Die roll size

150mm(Dia)X 250mm(Length)

Speed

0-5 RPM (Frequency control)

Piston number

12 Ea

Loading accuracy

≤±0.5%

Feeding amount single plunger

0-2ml

Electric Spec

220V/380V

Required power

6 Kw

Dimension

2,050mm X 1,200mm X 2,150mm

Weight

1300 Kg

Material

Sus304for contact area

Output

72000grain/h
