• High Quality Automatic

  • High Speed Effective

  • High Productivity

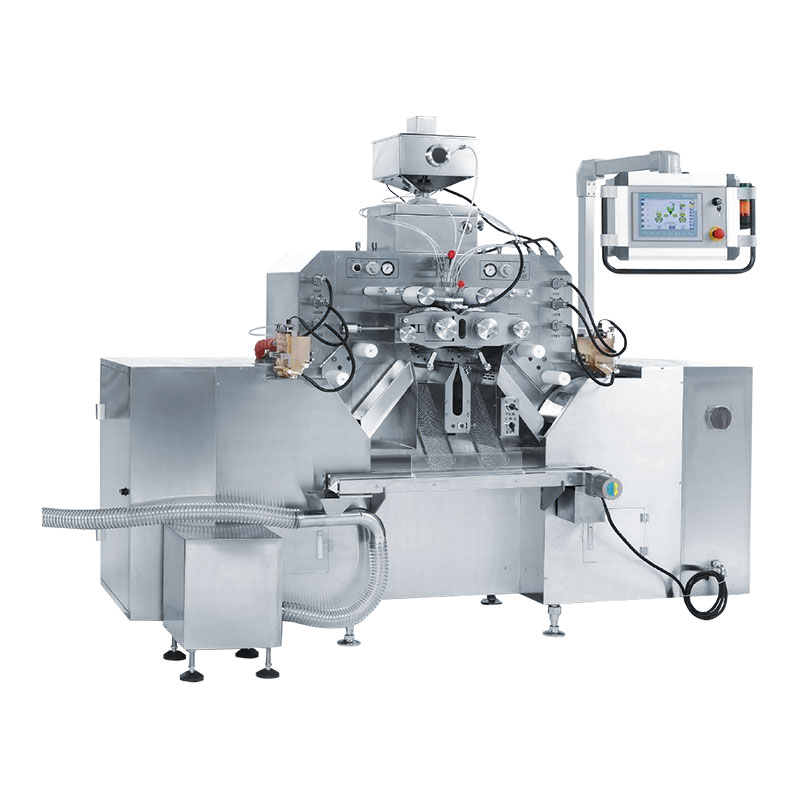

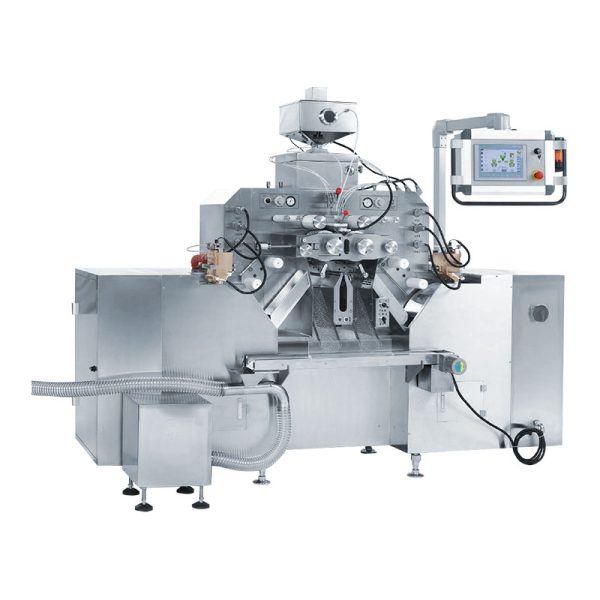

SEM-100 Softgel Encapsulation Machine

SEM-100 Atuto Production line of Soft Capsule ,Output: 2000 pieces / hour. 500mg of each piece.

The SEM-100 type softgel encapsulation machine is easy to operate.Its control system is PLC + touch screen, this machine absorbs advance technology from China and aborad,we produce this machine according to GMP quality system and ISO system. meanwhile  the processing of soft capsule and production characteristics are performed as GMP and related guidelines.

FEATURE

  1. Cold system with integrated cooling fan .
  2. Low energy consumption ,convenient installation the temperature accuracy.
    Machine model suitable for small laboratories .
  3. Low noise ,high accuracy (loading error is less than +/-2%), to solve the problem with the waste of raw materials , raw materials can do more times the same experiment.
  4. This machine adopt 50Hz frequency control ,roll-mode speed 0-2.5 RMP. 2 Plunger feed, single plunge feed rate 0-1.5ml.

DATA SHEET

Model Name

SEM-100

Die roll size

150mm(Dia)X 100mm(Length)

Speed

0-3.5 RPM (Frequency control)

Piston number

8 Ea

Loading accuracy

≤±0.5%

Feeding amount single plunger

0-2ml

Electric Spec

220V/380V

Required power

5 Kw

Dimension

1,700mm X 900mm X 2,100mm

Weight

700 Kg

Control mode

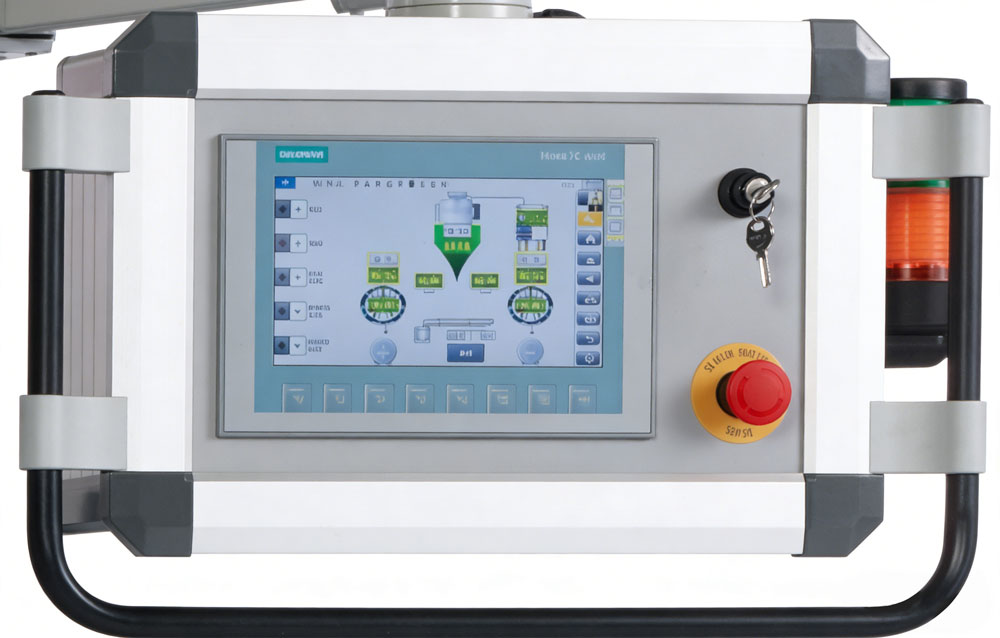

PLC+Touch Screen

Output

30600grain/h

VIDEO

CONTACT

                                                   Get in touch with an expert

andrew-photo-300x296We´re looking forward to find the suitable solution for your product. Please contact:

Andrew Yang
Engineer Director
Phone: +86 189 7157 0951

E-mail
