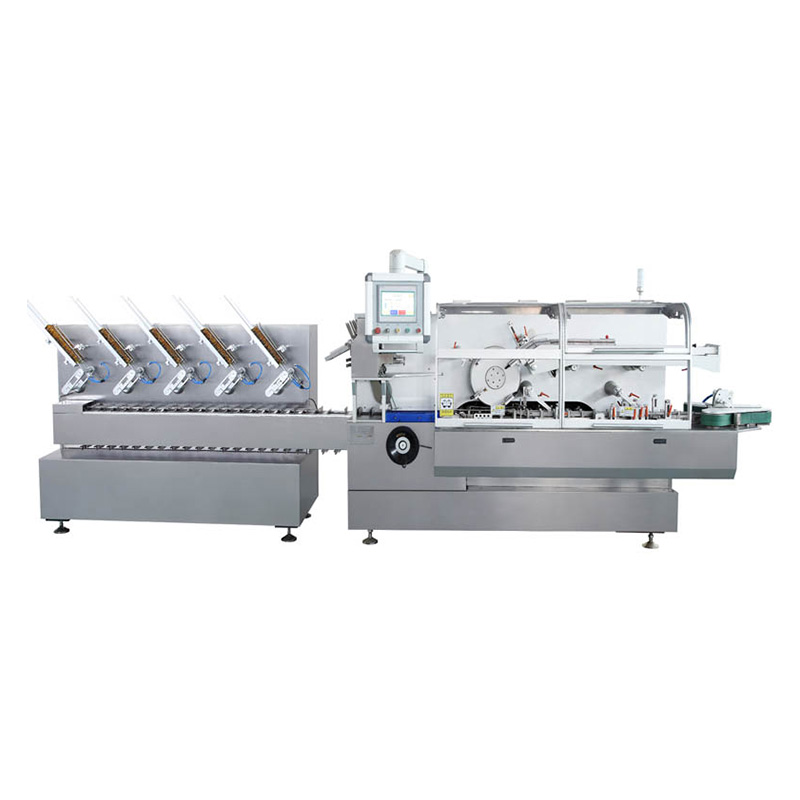

Full Automatic High Speed Condom Cartoning Machine

AIPAK APK-260 Automatic condom cartoning machine can pack products into carton box and seal the box automatically.It’s suitable for food, pharmaceuticals, commodity, cosmetic, sachet, food tray, electrical component. It also can connect with other machine,like pillow packing machine, shrink packing machine to be a whole automatic packing line.

FEATURE

1.Electric appliances, including the PLC, the touch screen and the frequency convertorsare from well-known international brands.

2.There is the HMI.

3.Errors, working speed and the final-product counting can be automatically displayed.

4.When the box’s feeding position is not correct, or there is no box, or there is no leaflet’s feeding, the machine will be stopped automatically.

5.When there is no content, there is no leaflet’s taking. When there is no leaflet feeding, there will be no cartonning.

6.There is the protecting if it’s overloaded.

7.Stable properties & convenient operation.

DATA SHEET

Main Technical Parameters
Encasing speed		260 boxes /min
Box	Quality requirement	250-350g/㎡【Base on carton size】
	Dimension range（L×W×H）	（70-180）mm×（35-80）mm×（14-50）mm
Leaflet	Quality requirement	60-70g/㎡
	Unfolded leaflet specification	（80-250）mm×（90-170）mm
	Fold range	【1-4】Fold
Compressed air	Working pressure	≥0.6mpa
	Air consumption	160-200L/min
Power supply		380V 50HZ
Main motor power		5kw
Machine dimension(L×W×H)		4800mm×1600mm×1860mm
Machine weight		3000kg
