Highly intelligent,Cartoning accuracy 100%
Inspection points are densely distributed in various workstation
Overload protection device

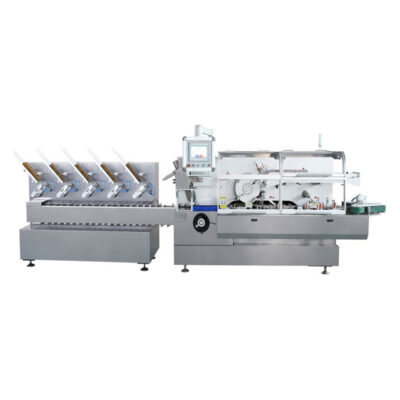

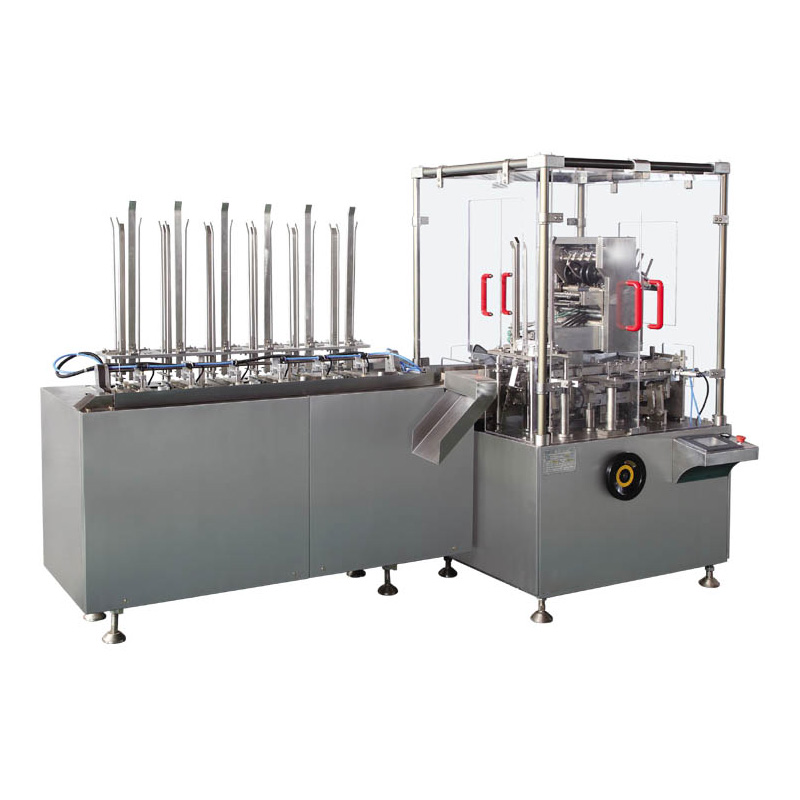

Automatic Vertical Condom Small Bag Box Cartoning Machine

AIPAK APK-120 Condom cartoning machine is a new model machine developing based on integrated domestic and foreign vanguard technology .It is suitable for condom, pouch, soft al/al strips, wound plaster, ointment plaster, facial mask plaster, coffee bag into carton.The machine can also do on line product feed and detect, leaflet fold (1-4folds) and feed, leaflet detect, canton open and form, products and leaflet push into carton, print batch number, seal carton with tuck-in or hot melt glue device.It can also automatically reject lacking of leaflet or product and finished product out.

FEATURE

1.When the carton lacks leaflet or products, the machine will reject the carton automatically.

2.The machine will be adopted with a joystick for remote control of the machine, in this way, it will more convenient for the worker when changing the carton size.

3.Automatically display trouble, Alarm and count finished products.

4.International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

5.Low Maintenance – easy access to all components provides for easy maintenance.

6.Optional: Inkjet printer, hot melt glue machine, bar code reader

7.Adopt human-machine operation system.

8.Stable performance, operation is easy.

DATA SHEET

Main technical parameters		APK-120
Encasing speed		30-120cartons/min
Carton	Quality requirement	250-350g/m²
	Dimension range(LWH)	(65-150) (35-85) (12-45)mm
Leaflet	Quality requirement	60-70g/ m²
	Unfolded leaflet specification	(80-250) *(90-170)mm
	Fold range	1-4 fold
Compressed air	Working pressure	≥0.6mpa
	Air consumption	120-160L/min
Power supply		220/380V 50/60HZ
Motor power		0.75Kw
Machine dimension(LWH)		280011401800mm
Machine weight		1400kg
