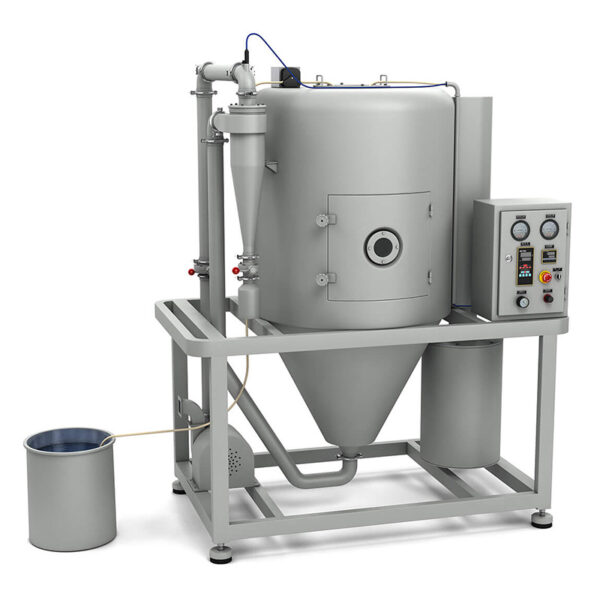

LPG series high-speed centrifuge atomizing drier

LPG series high-speed centrifuge atomizing drier is a special equipment and is suitable for drying emulsion, suspending liquid, liquor and so on. Particularly it has unique advantage for drying polymers and resins; dyestuff and pigment; ceramics, glass; derust agent; pesticide; carbohydrate, dairy products; detergent and surfactant; fertilizer, organic compound, inorganic compound and so on.

Air is turned into hot air through air filter and heater into hot air distributor at the top of dry chamber and then enters into dry chamber spirally and evenly, At the sametime liquid of raw material is sent to centrifugally tomizer at the top of dry chamber pumped by pump through filter, In which liquid of raw material atomizes ting droplets. Air and liquid of raw material flows and contacts each other fully. The moisture vaporizes rapidly. Liquid of raw material is dried into finished product in a short time. Tile finished product is discharged through cyclone separator at the bottom of drier. The wasted air is exhausted through fan.

FEATURE

1.Because raw material can be dried momentarily. Especially, it is suitable for drying thermal sensitive raw materials. It can maintain color, smell and smell of raw material.
2.Its operation is stable and simple. Its regulation and control is very convenient. It is easy to realize continuous operation.
3.The distribution, fluidity and solubility of product are good.

DATA SHEET

Model LPG-5 LPG-25 LPG-50 LPG-150 LPG-250~5000
Inlet temperature Automatic control140~350℃ Automatic control140~350℃ Automatic control140~350℃ Automatic control140~350℃ Automatic control140~350℃
outlet temperature 80-90℃ 80-90℃ 80-90℃ 80-90℃ 80-90℃
Max evaporated amount of moisture 5kg/h 25kg/h 50kg/h 150kg/h 250~5000kg/h
Drving from of centrifugal nozzle Compressed airdrive Mechanical drive Mechanical drive Mechanical drive Mechanical drive
Revolution 25000rpm 18000rpm 18000rpm 15000rpm 8000~15000rpm
Diameter of atomizing disk 50mm 120mm 120mm 150mm 180~240mm
Heat source Electricity Steam+electricity Steam+electricity,oilfuel,hotairfurnace Steam+electricity,oilfuel,hotairfurnace Steam+electricity,oilfuel,hotairfurnace
Max.power of electric heater 9kw 36kw 72kw 99kw Affirm it in accordance witthpractical conditions
Overall dimension 1.8*.93*2.2mm 3*2.7*4.26mm 3.5*3.5*4.8mm 5.5*4*7mm Affirm it in accordance witthpractical conditions
Recovery rate of dry powder ≧95% ≧95% ≧95% ≧95% ≧95%
