High-Speed Effervescent Tablet Packaging Lines: Achieving 80 Tubes Per Minute via Dual-Track Feeding and Vacuum Dust Extraction Grid Systems

1.How Do You Ensure High-Speed Stability Without Tablet Jams?

Maintaining unbroken mechanical synchronization at a high-speed capacity of 80 tubes per minute requires a paradigm shift from legacy single-track feeding channels, which regularly suffer from frictional overlapping and line stoppages under continuous vibration.

For an international project requiring rigid validation for 23mm and 25mm effervescent tablet diameters across variable counts (10, 15, and 20 tablets per container), AIPAK engineered a specialized continuous multi-pusher mechanism driven by a dual-track vibratory bowl array. This automated orientation architecture seamlessly processes up to 1,600 solid dosage units per minute, establishing linear tablet alignment and executing smooth, non-intermittent mechanical transfers that completely negate sudden inertial jerks and downstream structural jamming.

We use a double-track vibratory bowl feeding structure. This system sorts up to 1600 tablets per minute. It lines up the tablets perfectly and greatly reduces the chance of jams or overlapping compared to standard single-track systems.

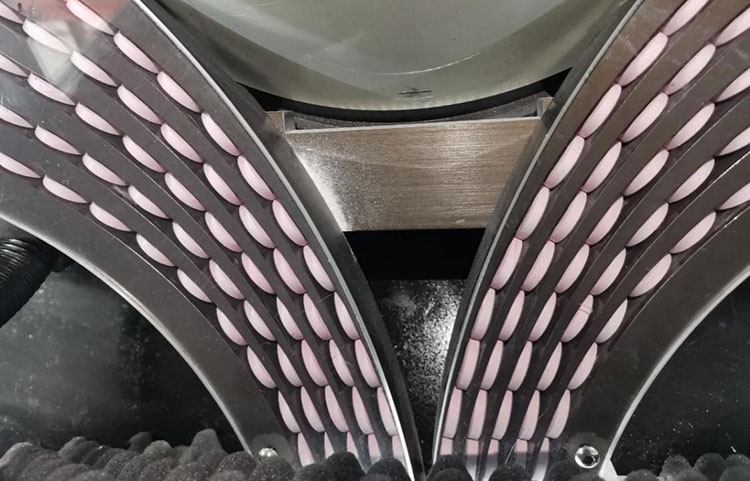

Double-track vibratory bowl

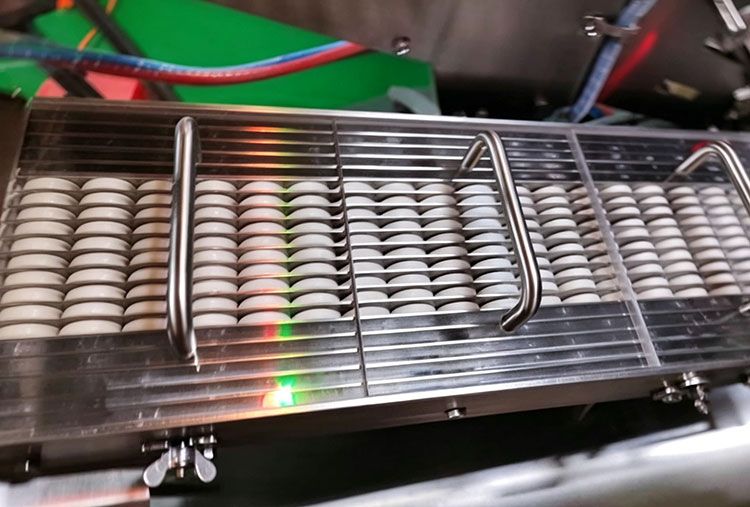

The Problem with Single-Track Systems

Single-track systems often fail at high speeds. The tablets push against each other. They overlap and get stuck in the guide rails. This stops the whole machine. You have to open the machine and clear the jam by hand. This wastes your time and money.

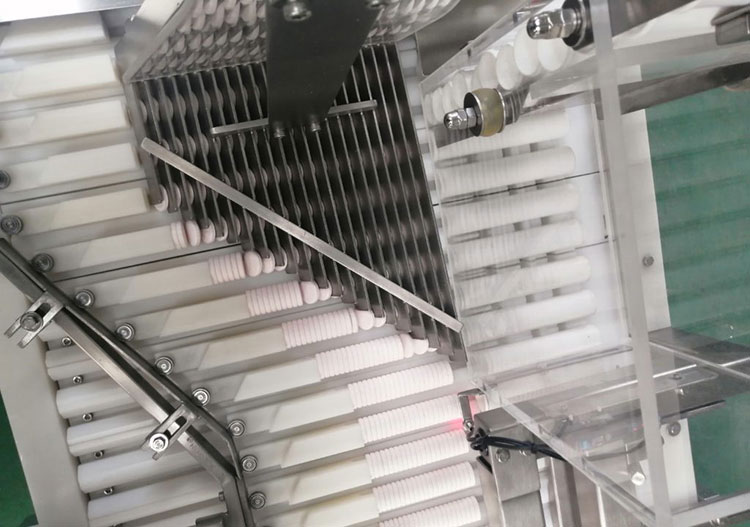

Our Double-Track Solution

We use a double-track vibratory bowl. This bowl sorts the tablets gently and quickly. It can handle up to 1600 tablets every minute. The double tracks give the tablets more space. The tablets line up in a perfect row. They do not push each other out of the way.

We also use a continuous multi-pusher structure. This structure pushes the tablets into the tubes smoothly. It easily supports a running speed of 80 tubes per minute. The effervescent tablet packing machine does not pause. The pushers move in a steady circle. This continuous motion stops sudden jerks. Sudden jerks cause jams. Our design keeps everything moving safely.

Comparing Feeding Systems

2.Why Is Dust Control Critical for Effervescent Tablet Quality?

Effervescent tablets create a lot of dust. This dust can block machine tracks and ruin the tube seal. How can you remove this dust effectively?

We add special dust removal holes on the vibratory bowl. As tablets move, the dust falls through. We also use an industrial vacuum cleaner to suck up extra dust. This stops dust from blocking the tracks and keeps the machine clean.

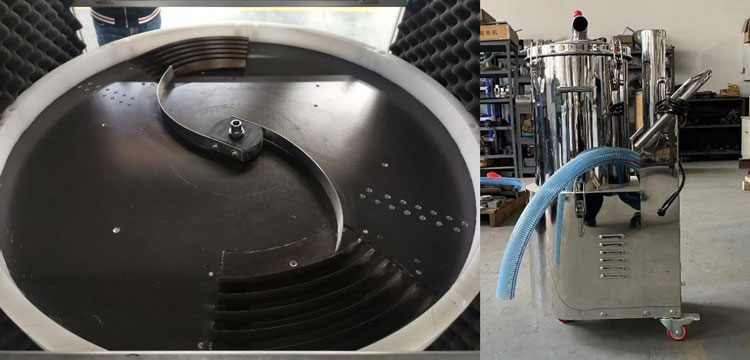

Vacuum dust removal system

How Dust Harms Your Production

Effervescent tablets are very fragile. They rub against each other and make fine powder. This powder builds up on the machine tracks. The dust acts like glue. It stops the tablets from moving.

Dust can also get into the tube cap. If the cap has dust inside, it will not seal well. A bad seal lets moisture in. Moisture ruins effervescent tablets quickly. The tablets will puff up and spoil.

Our Vacuum Dust Removal System

Because effervescent matrices are highly friable, continuous friction generates volatile micro-particulates that accumulate along mechanical guides, inducing severe frictional drag that halts automated sorting arrays. Furthermore, cross-contamination of residual dust within the tube cap compromises primary container integrity, allowing ambient moisture ingress that triggers premature tablet swelling and batch degradation.

Our packaging design deploys localized de-dusting orifices within the vibratory bed coupled with dedicated pneumatic vacuum channels to isolate airborne debris instantly.

We also separate the machine into two parts. The bottom part has all the motors and gears. The top part handles the tablets. We use solid stainless steel plates to seal them apart. This stops oil and dirt from mixing with the tablet dust. It also makes the daily cleaning job very easy.

Dust Control Benefits

3.How Can You Make Format Changeovers Fast and Easy?

Changing between 10, 15, and 20 tablets per tube takes too long. Slow changes hurt your daily output. How can you switch sizes in just 30 minutes?

You can switch tablet counts by changing simple parameters on the touch screen and swapping a few small parts. A trained worker can complete this change in just 30 minutes. This keeps your machine running more and waiting less.

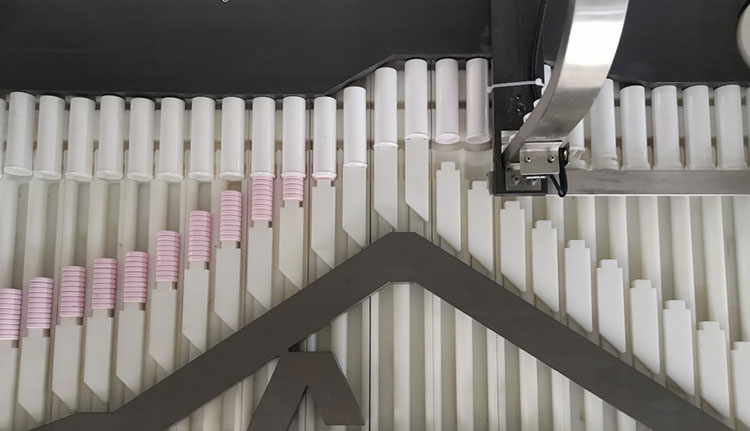

Fast format changeover

The Need for Flexibility

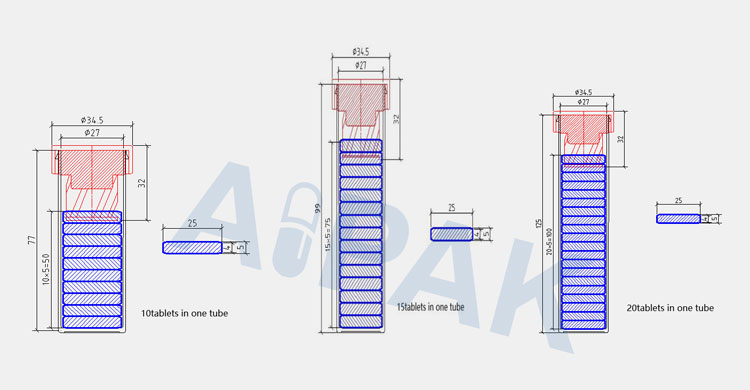

Our Russian client needed to pack 10, 15, and 20 tablets in different tubes. They also had two tablet sizes: 23mm and 25mm. Old machines require you to change many heavy parts.

You need special tools to do this. It can take half a day to set up the machine for a new tube size. This long wait hurts your business. You lose hours of making products.

Quick Changeover Design

We designed our machine for fast changes. If you want to change the number of tablets, you just tap the screen. The PLC system updates the counting parameters instantly. Next, you swap the holding track for the new tube height.

Legacy container changeovers typically incur extensive production line pauses due to the mandatory manual re-gearing of heavy physical tooling components. AIPAK’s flexible packaging architecture utilizes immediate HMI touch-screen parameter indexing driven by an integrated PLC system, allowing operators to adjust target tablet counts instantly.

Paired with toolless quick-release mechanical clamps along the secondary tube-guiding tracks, complete multi-format changeovers are seamlessly finalized within a 30-minute operational window.

Changeover Time Breakdown

4.How Does Smart Exception Handling Reduce Manual Work?

Machine errors usually need a worker to fix them. This slows down the whole line. How can the machine handle errors by itself?

Our machine uses a smart PLC control system. It automatically sounds an alarm and stops if tubes, caps, or tablets are missing. It also automatically rejects tubes with the wrong tablet count or a loose cap.

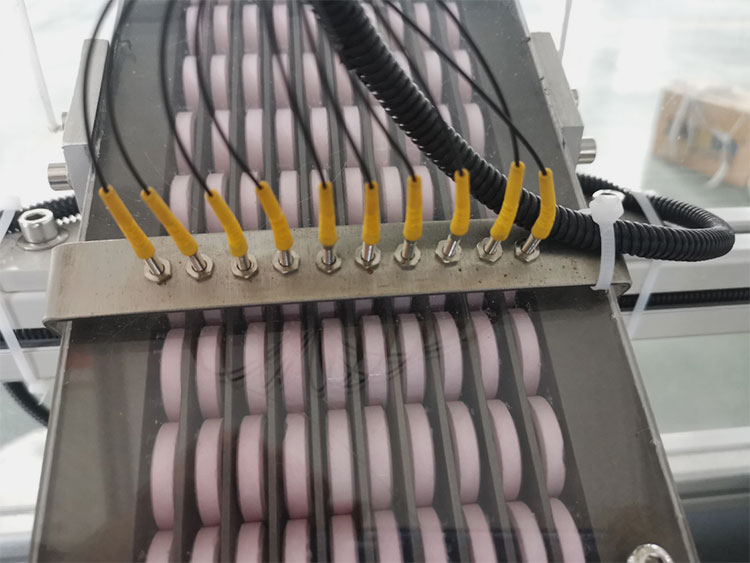

PLC control system

The Cost of Manual Checks

If a machine makes a mistake, a worker must find it. If a tube is missing a cap, the worker must pull it out. If a tube has 9 tablets instead of 10, the worker must catch it.

Relying on manual quality verification at a high-velocity output of 80 tubes per minute is non-viable due to human cognitive limits and resultant inspection gaps. To safeguard batch compliance, our automated inspection framework integrates advanced photo-electric tracking and smart sensor loops; if the system flags an incorrect tablet count or a loose container enclosure, an automated pneumatic reject arm deflects the non-compliant unit into a secure reject bin without degrading continuous line velocity.

Automated Quality Control

We use advanced sensors and a PLC system to fix this. The machine watches every step for you. If the hopper runs out of empty tubes or caps, the machine stops and rings a bell. It will not run empty. After the machine fills a tube, it checks the tablet count.

It also checks if the cap is tight. If the count is wrong or the cap is loose, a mechanical arm pushes the bad tube into a reject bin. The machine keeps running. You do not need to stop the line. The system also saves all data. If the power goes out, you do not lose your settings.

Smart Features Table

5.What Makes the Equipment Fully GMP Compliant?

Pharmaceutical production requires strict hygiene rules. If your machine is hard to clean, you will fail inspections. How do we meet GMP standards completely?

All parts that touch the tablets are made of 316L stainless steel. The machine design makes cleaning easy. The system includes user permission management with passwords and a dual-language interface to meet all strict GMP rules.

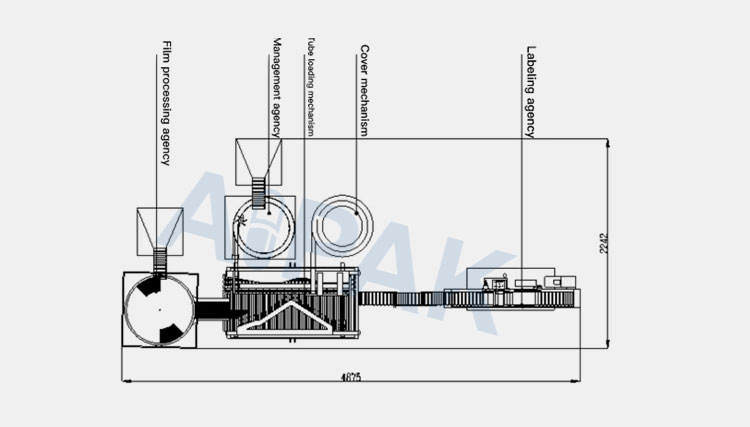

GMP compliant packaging line

Meeting Strict Hygiene Rules

GMP rules protect the health of the people who take the medicine. You cannot use cheap metals. You cannot have hidden corners where dirt can hide. Our client needed a machine that passes strict factory audits. The inspectors look closely at the machine design.

High-Quality Materials and Software

We build the machine with 316L stainless steel for all contact parts. This steel does not rust. It is very smooth and easy to wash. We designed the machine with round corners so dust cannot hide. We also added smart software.

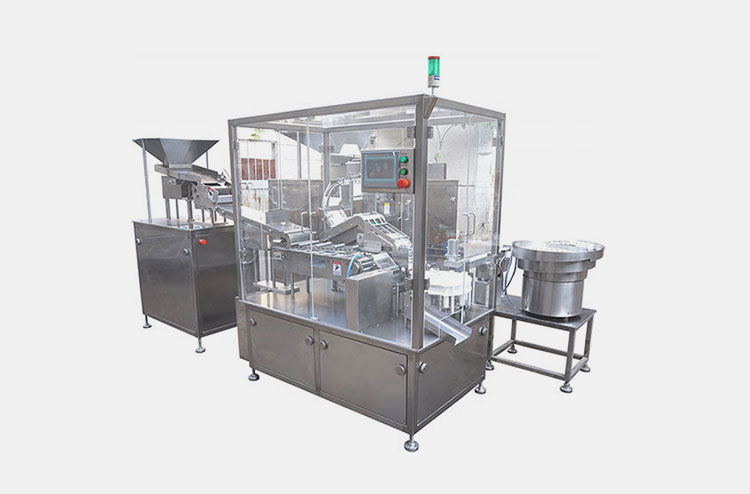

The machine has user permission management. An operator can only run the machine. Only a manager can change the deep settings with a special password. The screen shows English and Chinese.

This machine is not just a single filler. It is a complete automated line. It includes automatic tablet sorting, tube loading, cap sorting, capping, and a labeling machine. The labeler applies wrap labels, batch numbers, and QR codes. You get a finished product ready for the store.

GMP Design Features

Conclusion

High-speed effervescent tablet packaging needs stability, dust control, and smart automation. Our complete line handles 80 tubes per minute smoothly, meets strict GMP rules, and keeps your production running perfectly.
