Powder Filling Machine Line Integration: A cGMP Technical Guide for Supplement Contract Manufacturers

1.How Do You Handle Multiple Bottle Sizes and Fill Weights?

Contract manufacturers often face a big problem. You have too many different bottle shapes and sizes from your customers. This makes buying a single machine very difficult and confusing.

To handle multiple sizes, you need a machine with quick-change parts. A linear filling system is usually better than a rotary one for this. It allows you to adjust rails and heads quickly for bottles ranging from 16oz to 70oz without buying a new machine for every size.

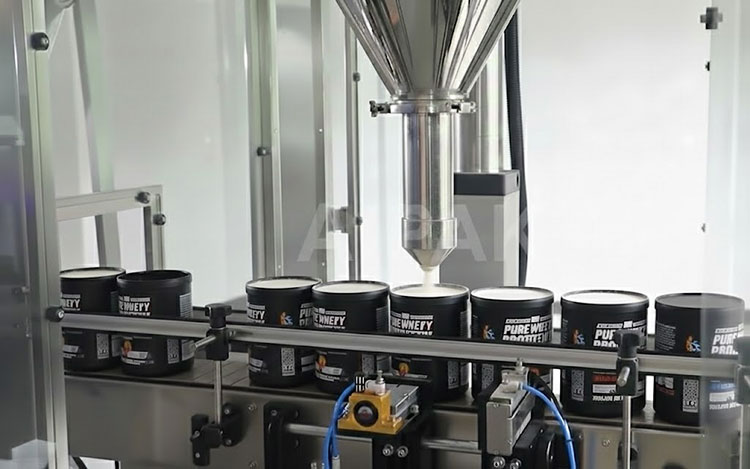

Assorted supplement bottles on conveyor

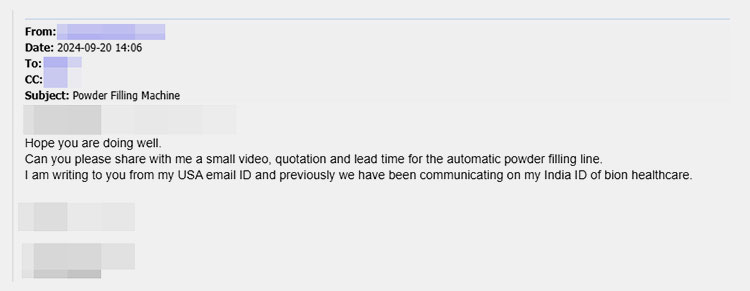

Powder filling machine inquiry

Contract manufacturing facilities require dynamic component flexibility to manage extensive multi-format packaging portfolios without provoking excessive line downtime. Processing variable wide-mouth container configurations—ranging across volumetric capacities from 16oz to 70oz alongside divergent closure diameters from 89mm to 120mm—necessitates a highly modular framework.

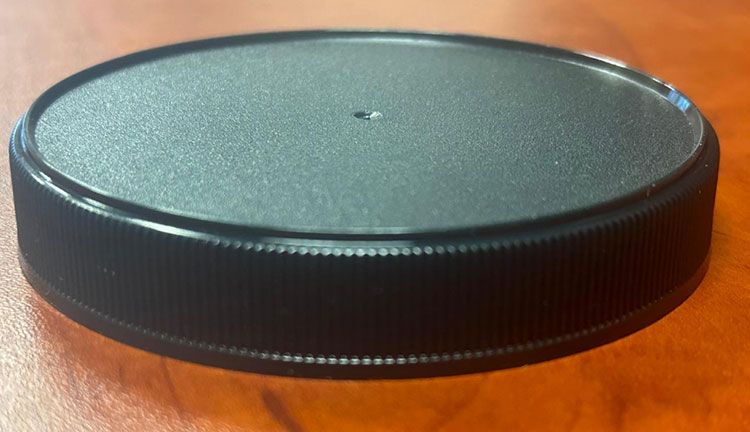

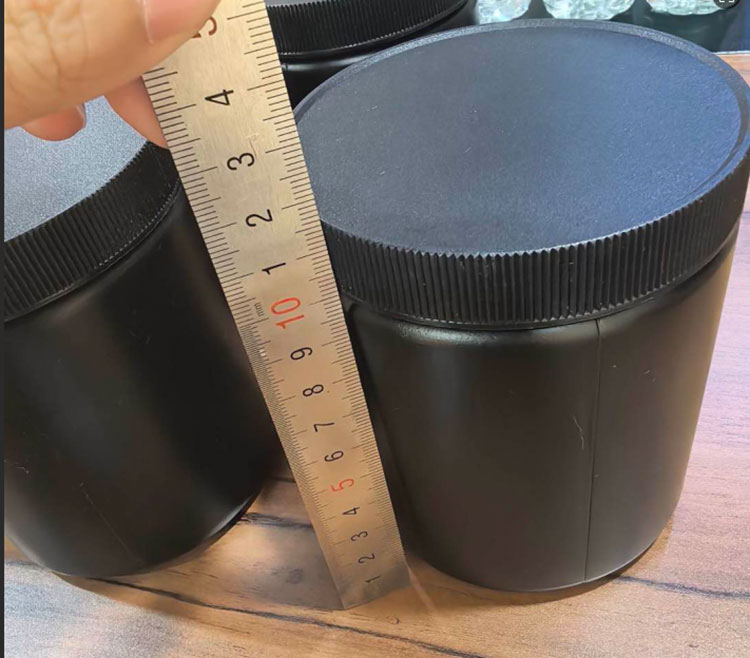

Bottle size from this customer

Implementing a linear filling configuration enables tool-less adjustment of optical indexing sensors and guide rail paths, minimizing changeover latency to protect production margins during frequent batch transitions.We aimed for a solution that handles this variety without trouble.

2.How Can You Prevent Powder Dust from Dirtying the Bottles?

Dust is the enemy of supplement packaging. If powder gets on the bottle neck/thread, the cap will not seal right. This looks bad and can ruin the product quality quickly.

The best way to stop dust is a three-step approach. First, use a lifting conveyor to fill from the bottom up. Second, use an air-blowing device at the mouth. Third, use a bottle-cleaning machine after capping to ensure the final product is spotless.

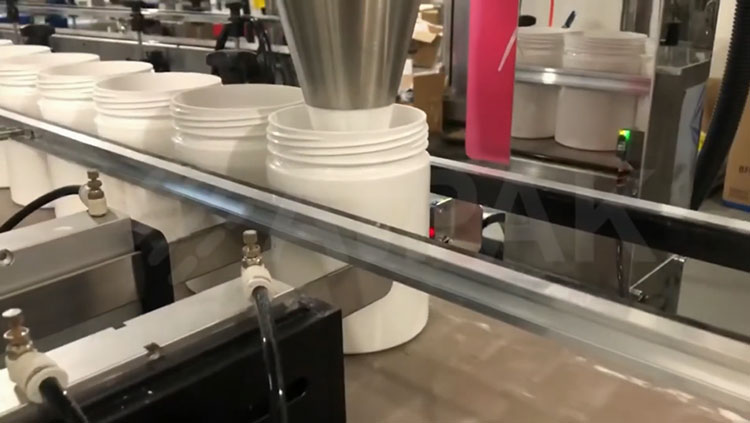

Powder filling nozzle inside bottle

Powder formulations displaying optimized fluidic flow characteristics frequently generate elevated levels of airborne particulates during high-speed mass transfer, creating significant cross-contamination risks along the container threads.

To enforce absolute containment, an integrated three-stage dust mitigation strategy is deployed. The system utilizes a synchronized servo-driven container lifting mechanism that drives the advanced auger filling nozzle deep within the vessel cavity, executing a bottom-up filling sequence as the container descends to isolate particulates within the container body.

Second, we add a special device at the bottle mouth. It blows air and sucks dust at the same time. This cleans the rim before the cap goes on.

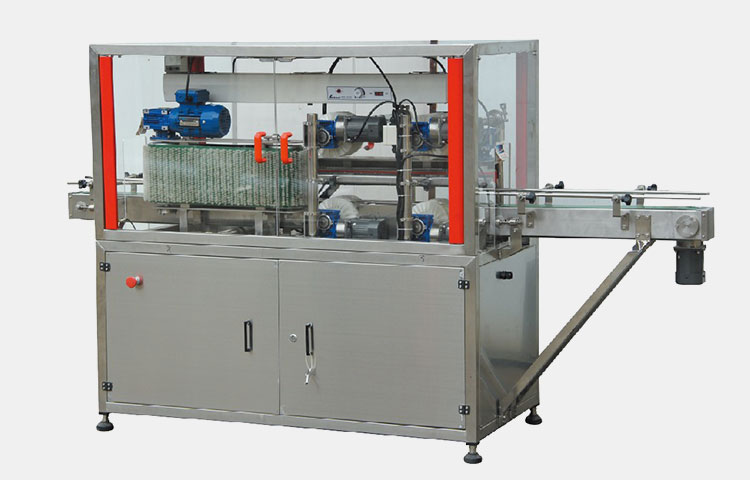

Bottle outside cleaning machine

To catch any remaining static-bound particulates that may settle on the outer shoulders of the containers during transport, a specialized terminal washdown and rotary brushing assembly is integrated downstream from the capping block.

This mechanical cleaning loop thoroughly sanitizes the exterior container surfaces, ensuring strict batch compliance with international cleanroom distribution standards before the final labeling sequence.

When you choose a machine, do not just look at speed. Look at how clean it keeps your package.

3.Single Head vs. Double Head: Which Speed is Right for You?

Speed determines your profit. But you also need accuracy. Choosing between a single head and a double head filler depends on your volume and how fast you want to grow.

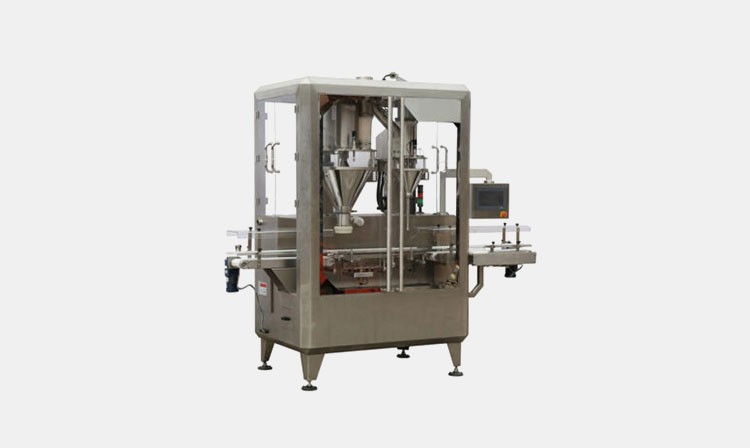

Double head powder filling machine

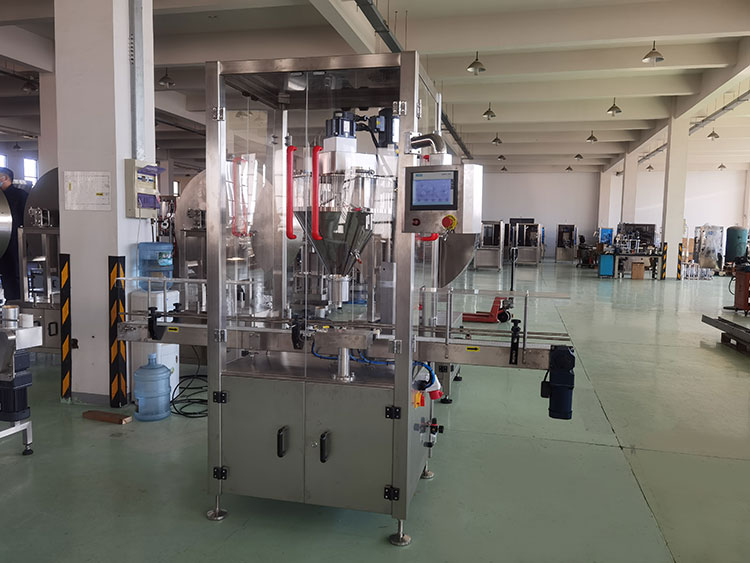

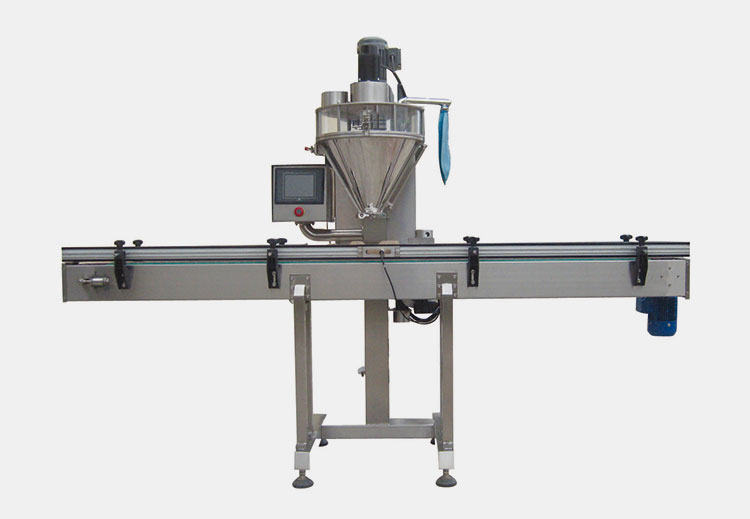

A single head filler is good for 15-20 bottles per minute. For higher speeds like 60 bottles per minute, you need a double head linear machine. This doubles your output without doubling the space, making it ideal for growing manufacturers.

Factory Acceptance Testing (FAT) loops validate that the chosen auger filling mechanisms sustain strict volumetric accuracy—consistently within a ±1% variance threshold—when processing diverse bulk densities.

While single-head configurations offer excellent precision for low-volume lines, scaling throughput to a continuous target velocity of 60 bottles per minute requires transitioning to an optimized multi-nozzle architecture to balance speed and accuracy variables.

He originally wanted 12-15 bottles per minute. But after seeing the machine, he wanted more efficiency. He asked for 60 bottles per minute.

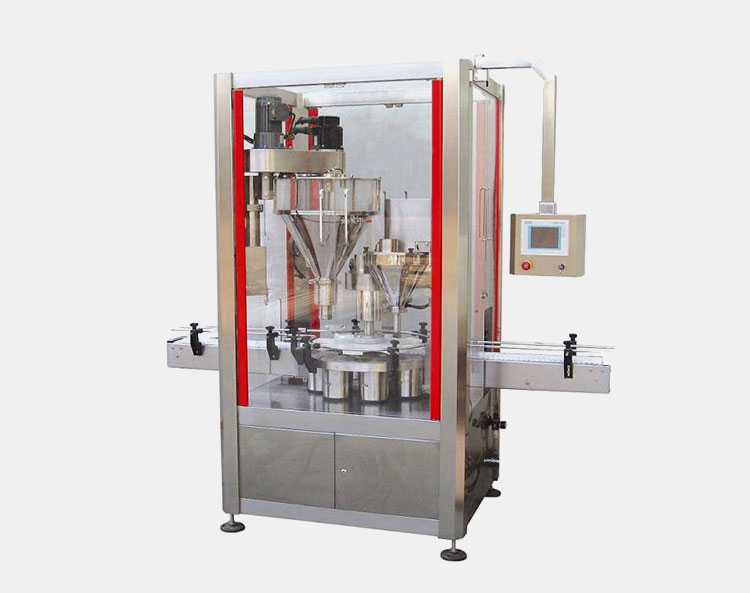

Evaluating alternative dosing layouts demonstrates that while dual-head rotary systems achieve high velocities, they introduce complex changeover tooling requirements that limit format versatility.

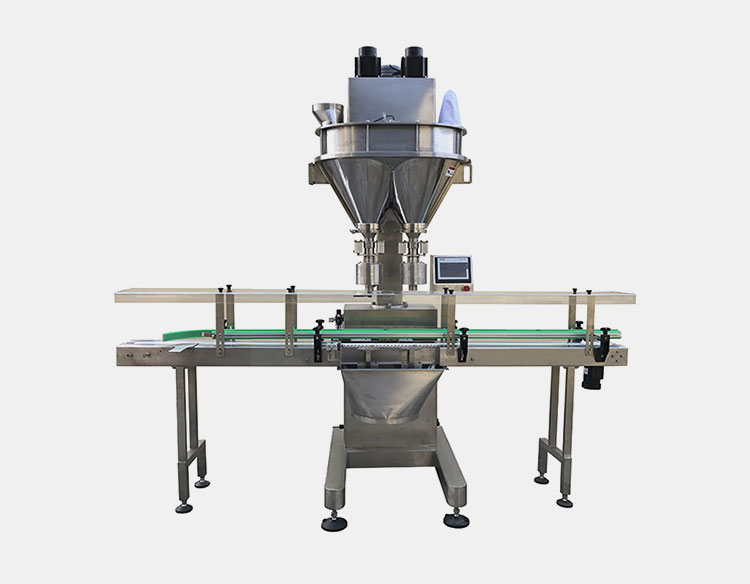

Deploying a dual-head linear auger filling system provides the optimal solution, combining a straight-line tracking conveyor for fast, tool-less width changes with dual synchronized filling valves to successfully achieve the 60 bottles per minute target weight threshold.

4.What Auxiliary Equipment Do You Need for a Complete Line?

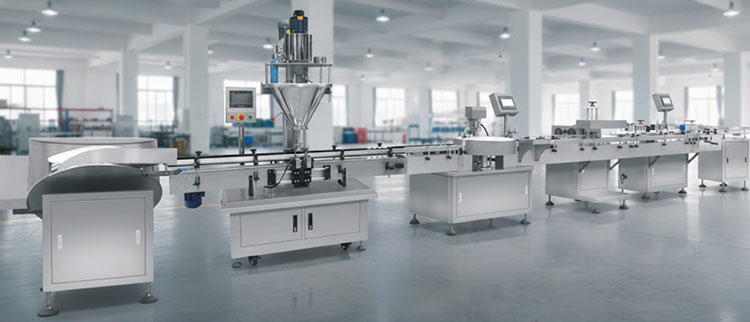

A filler is not enough. To sell a finished product, you need to treat the bottle, add scoops, seal it, and check for safety. A complete line handles everything automatically.

A full line includes a bottle unscrambler, UV sterilization, scoop inserter, desiccant inserter, capper, induction sealer, and metal detector. These machines ensure your product meets GMP standards and consumer expectations for safety and convenience.

Turnkey powder line engineering requires integrating specialized auxiliary machinery to automate the entire primary packaging sequence. To meet standard commercial supplement criteria, the automated line layout incorporates high-speed centrifugal scoop insertion modules and automated desiccant feeding channels to manage internal moisture levels throughout the product shelf-life.

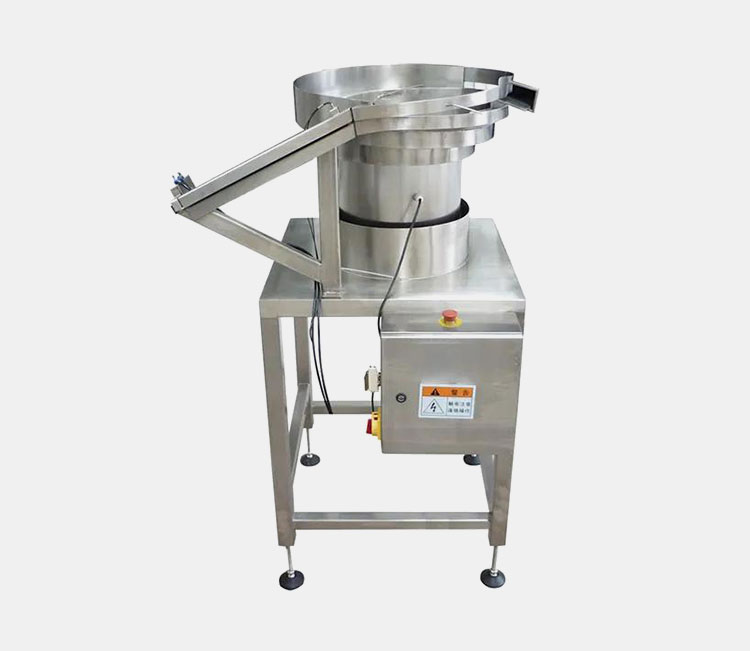

Scoop Inserter

Desiccant inserter

Empty Bottle Sterilizer(UV light)

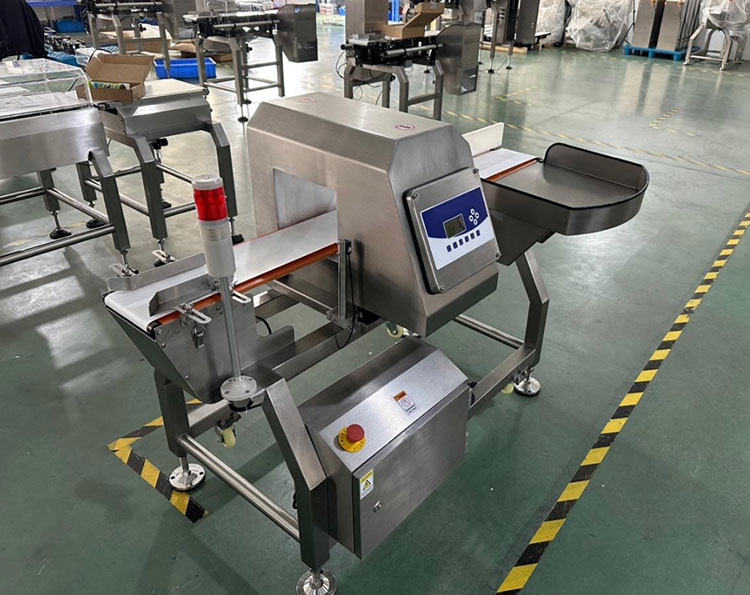

Metal detector

We also discussed safety. He added an "Empty Bottle Sterilizer" (UV light) to clean the jars before filling. He also added a "Metal Detector"at the end of the line. This is critical for export markets. If a tiny piece of metal is in the powder, you need to know before it ships.

He also had a space limit. He asked for a U-shaped layout to fit his room. I told him we could do that easily.

Here is the final list of the line we designed for him. It shows how complex a real line is:

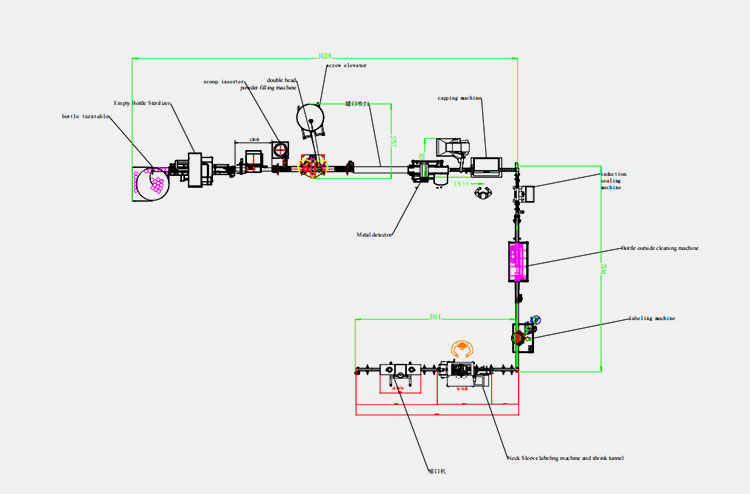

Updated layout to customer

The client was very happy. He saw the layout and the updated quote within two days. He returned to the USA and signed the deal.

Conclusion

Choosing the right line requires looking at bottle variety, dust control, and future speed needs. A flexible, integrated system ensures you can say "yes" to any customer order.
