• Dependant temperature PID controlling

  • Easy to operation and maintenance

  • Running smoothly with less noise

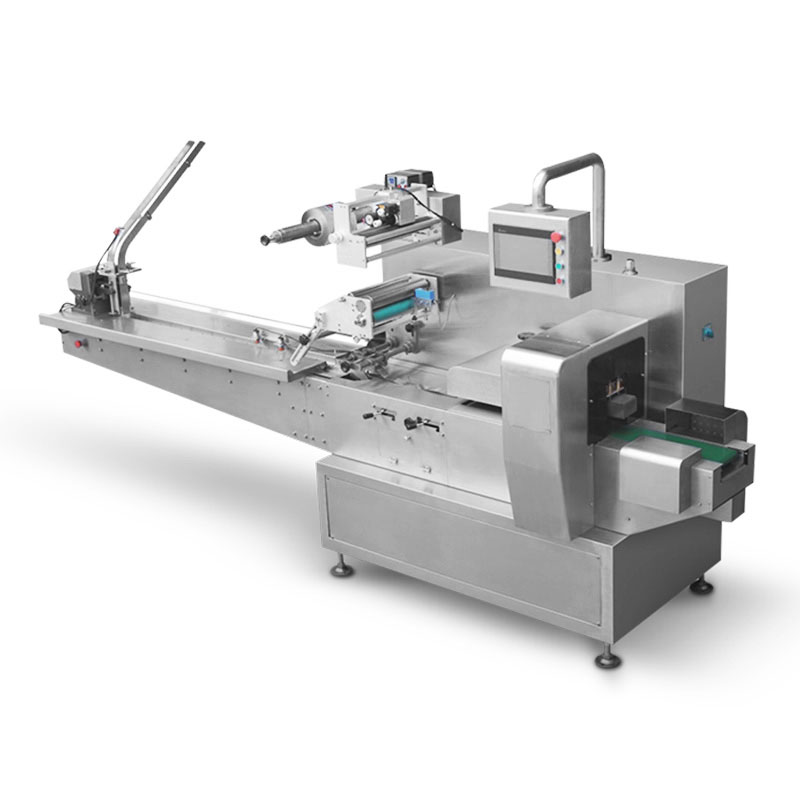

APK-350D High speed Four servo reciprocating flow wrap machine

Aipak APK-350D flow wrap machine was also named horizontal form fill seal machine.It is design for pckaging various kinds of regular objects like biscuits, pies, chocolates, bread, instant noodles,  moon-cakes, drugs, daily appliances, industrial parts, paper boxes, plates, etc.

This flow wrap machine working with PLC system, is able for multi language setteing and adding function. Can achieve whole packing process like bag forming, metering, filling, sealing, counting, cutting and batch number printing.

FEATURE

  1. Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.
  2. Interface features easy and quick setting and operation.
  3. Self failure diagnosis, clear failure display.
  4. High sensitivity photoelectric eye color tracing, numerical input of cutting/sealing position for extra accuracy.
  5. Temperature independent PID control, more suitable for packaging different materials.
  6. Positioned stop function, without sticking knife or wasting film.
  7. Simple driving system, reliable working, convenient maintenance.
  8. All control is realized through software, easy for function adjusting and technical upgrade.

DATA SHEET

Model APK-350D
Bag size (mm) long*wide*high 40~300mm*30~130mm*5~60mm
Vertical and horizontal sealing strength (Newton/mm ²) > 15 n/mm squared
Packing speed (bags/min) 30-200 Stable between 150-200 (version 1-2)
Packaging film width (mm) 80~350mm
The power supply specifications 220V 50/60Hz 2.4KVA
Machine weight (kg) 1000kg
Gas consumption 0.2 MPa
