• Convenient parameter setting

  • Temperature independent PID control

  • Without sticking knife or wasting film

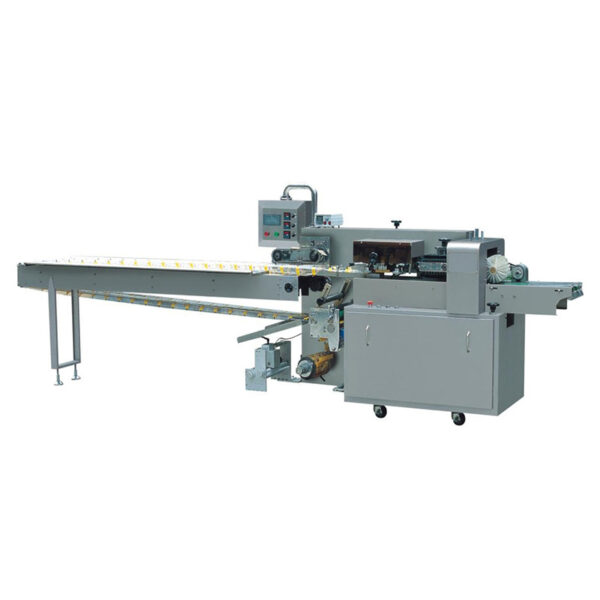

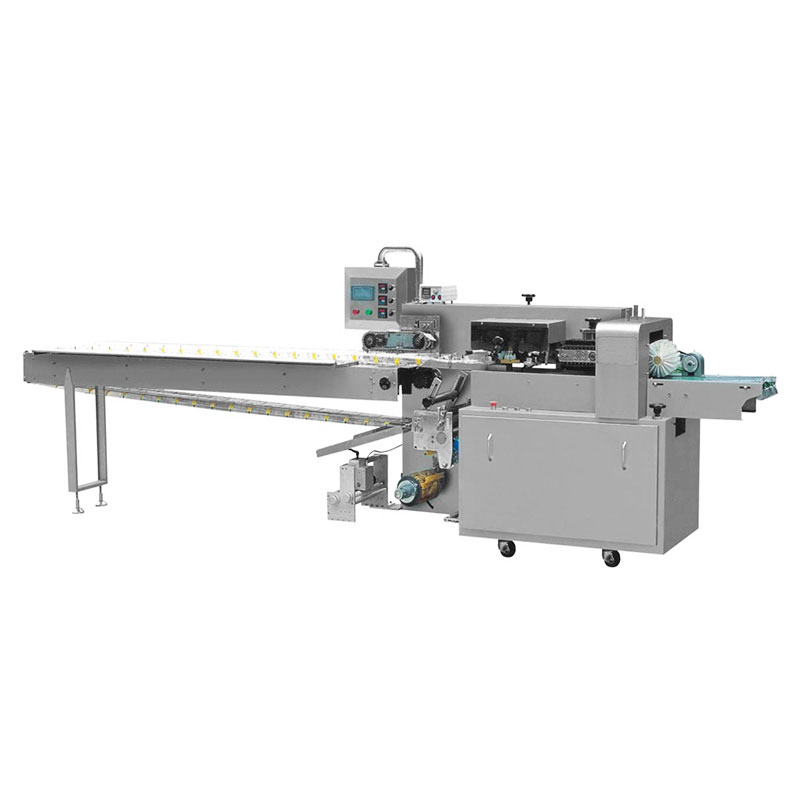

APK-300E Multi function toothbrush cake sugar popsicle bag packaging flow wrap machine

Aipak APK-300E flow wrap machine is designed for packing fixed shaped materials into pillow packages, suitable for packing all kinds of regular shaped solid products, including foodstuff, such as biscuits, breads, moon cakes, candies etc, commodities, industrial parts etc. For small pieces and separated articles, they should be put in to boxes or tied into blocks before this machine can be used to pack them, and this packing method is also applicable to pack other nonsolid products.

FEATURE

  1.Dual frequency conversion control,bag length can be set and cut in one step,saving time and film.

  2.Interface features easy and quick setting and operation.

  3.Self failure diagnosis,clear failure diaplay.

  4.High sensitivity photoelectric eye color tracing,numercial input of cutting sealing position for extra accuracy.

  5.Temperature independent PID control,more suitable for packaging different materials.

  6.Positioned stop function,without sticking knife or wasting film.

  7.Simple driving system,reliable working,convenient maintenance.

  8.All control is realized through software,easy for function adjusting and technical upgrade.

DATA SHEET

Model APK-300E
Bag size (mm) long*wide*high 65~190mm*30~110mm*5~40mm
Vertical and horizontal sealing strength (Newton/mm ²) > 15 n/mm squared
Packing speed (bags/min) 30~230Bags/min
Packaging film width (mm) 80~300mm
The power supply specifications 220V 50/60Hz 2.4KVA
Machine weight (kg) 800kg
Overall dimensions (length × width × height) 3780×640×1560mm
