• Self diagnosis failure

  • Flexible bag length cutting

  • Convenient and quick parameter setting

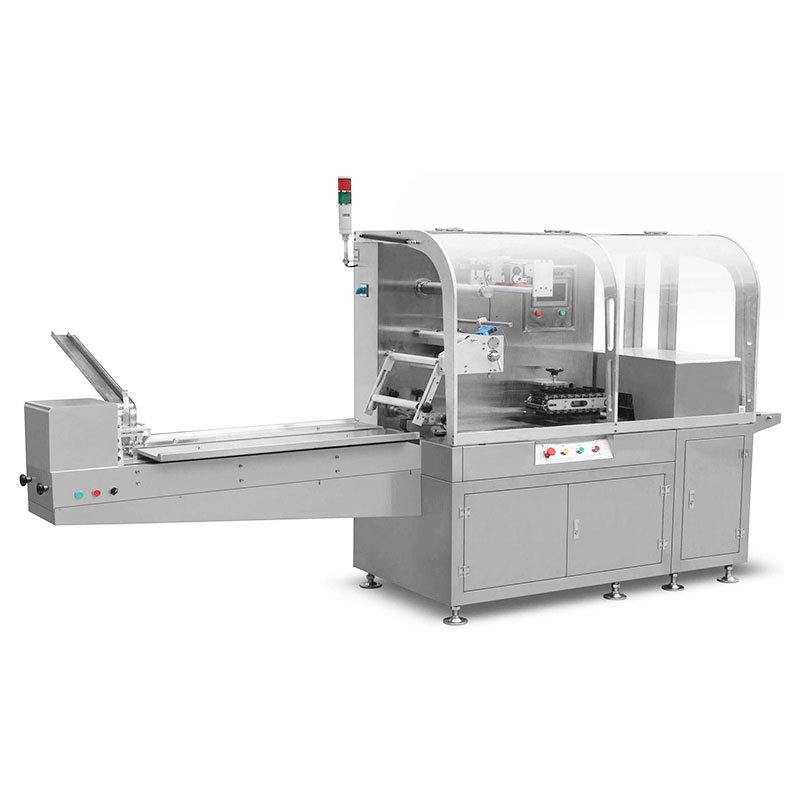

APK-350C High speed reciprocating capsule/tablet/blister plate flow wrap machine

Aipak APK-350C flow wrap machine is specially designed for moisture-proof bag packaging of capsule plate, tablet plate , aluminum-plastic blister plates and other similar material plates.With a super-intelligent touch screen and individual digital display temperature control system, it is simple to set parameters and convenient to change product size.With compact mechanical structure design, 4 servo drives control, the flow wrap machine can run stablely, it is easy to repair and maintain the machine, less breakdown, and low noise.

FEATURE

  1. Reciprocating tool proof structure, less affection by the material.
  2. Four servo control, the bag length is set and cut immediately, there is no need to adjust the empty walk, one step in place, saving time and film.
  3. It adopts electrical appliances imported from Taiwan and Japan and touch man-machine interface, which makes parameter setting convenient and fast.
  4. Fault self diagnosis function, fault display at a glance.
  5. High sensitivity photoelectric eye color mark tracking makes the sealing and cutting position more accurate.
  6. Temperature independent PID control, better suitable for all kinds of material coating.
  7. Positioning shutdown function, no knife sticking and film consumption.
  8. The rotating system is simple, the work is more reliable and the maintenance is more convenient.
  9. All controls are realized by software, which is convenient for function adjustment and technical upgrading, and will never lag behind.
  10. Servo blanking is adopted, which is easy to operate and fast. It only needs to be operated on the screen.

DATA SHEET

Model APK-350C
Bag size (mm) long*wide*high 40-300 mm*30-130 mm*5-60 mm
Vertical and horizontal sealing strength (Newton/mm ²) > 15 n/mm squared
Packing speed (bags/min) 30-120 Stable between 150-200 (version 1-2)
Packaging film width (mm) 80 ~ 350 mm
The power supply specifications 220 v 50/60 hz 2.4 KVA
Machine weight (kg) 1000kg
Gas consumption 0.2 MPa
