Double frequency converter control
Positioned stop function
Simple driving system
Want A Free Consultation

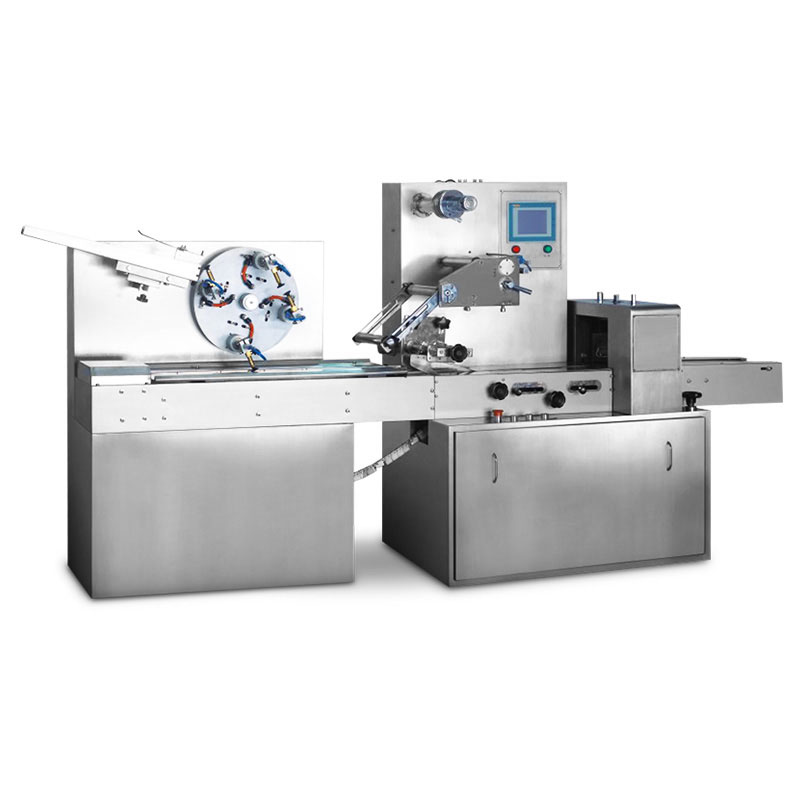

APK-300A-1 Automatic card flow wrap machine
Aipak APK-300A-1 adopts full automatic loading stsyem,it is mainly used for packaging cards, stickers, plasters.With imported electrical appliances and touch man-machine interface, it is convenient and quick for you to set the parameter of this flow wrap machine.Adopts high sensitivity electro-optic eye color code tracking,the sealing and cutting position of each are accurate.
- Compact structure, stable performance and simple operation.
- Double frequency conversion control, the bag length is set and cut immediately, there is no need to adjust the empty walk, one step in place, saving time and film.
- Adopts imported electrical appliances and touch man-machine interface, and the parameter setting is convenient and fast.
- Fault self diagnosis function, fault display at a glance.
- High sensitivity electro-optic eye color code tracking makes the sealing and cutting position more accurate.
- Temperature independent PID control, better suitable for all kinds of material coating.
- Positioning shutdown function, no knife sticking and no film consumption.
- The rotating system is simple, the work is more reliable and the maintenance is more convenient.
- All controls are realized by software, which is convenient for function adjustment and technical upgrading, and will never lag behind.
|Bag size (mm) long*wide*high||65～190mm*30～140mm*5～50mm|
|Vertical and horizontal sealing strength (Newton/mm ²)||> 15 n/mm squared|
|Packing speed (bags/min)||40～200Bags/min|
|Packaging film width (mm)||80～300mm|
|The power supply specifications||220V 50/60Hz 2.4KVA 380V 50/60HZ 1KVA|
|Machine weight (kg)||800kg|
|Overall dimensions (length × width × height)||3200×680×1560mm|
