Precision Engineering for cGMP Compliance: Mastering Automatic Capsule Filling Mechanics

1: How Does a Butterfly-Valve Hopper with Forced Vibration Resolve Feeding Issues for Sticky Herbal Powders?

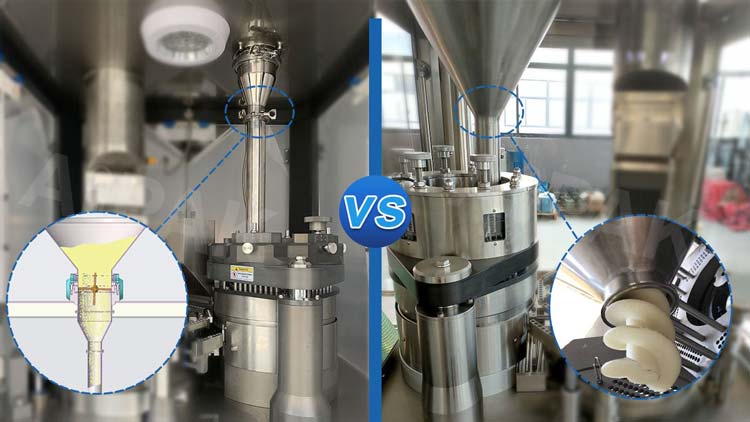

AIPAK new hopper vs traditional hopper

For many pharmaceutical producers, especially those dedicated to Traditional Chinese Medicine (TCM), the poor fluidity of raw materials represents a critical production bottleneck. Traditional screw-feeding mechanisms often struggle with the inherent stickiness of herbal extracts, leading to frequent jamming and clogging that causes unpredictable downtime and inconsistent fill weights.

Our automatic capsule filling machine resolves this industry-wide pain point through a specialized butterfly-valve discharging method integrated with a forced vibration device. This engineering solution works by:

Active Agitation: The forced vibration device ensures that even the most stubborn, non-fluid powders are continuously agitated, preventing the "bridging" effect that causes blockages in traditional hoppers.

Controlled Discharge: The butterfly-valve design facilitates a smooth, mechanical transition of the powder into the dosing station, providing a steady and reliable flow that screw feeders simply cannot match.

Eliminating Downtime: By ensuring a continuous feed, this TCM capsule filler configuration says goodbye to any jamming or clogging issues, effectively smoothing out production cycles and allowing your operators to maintain high throughput even with the most difficult-to-handle herbal materials.

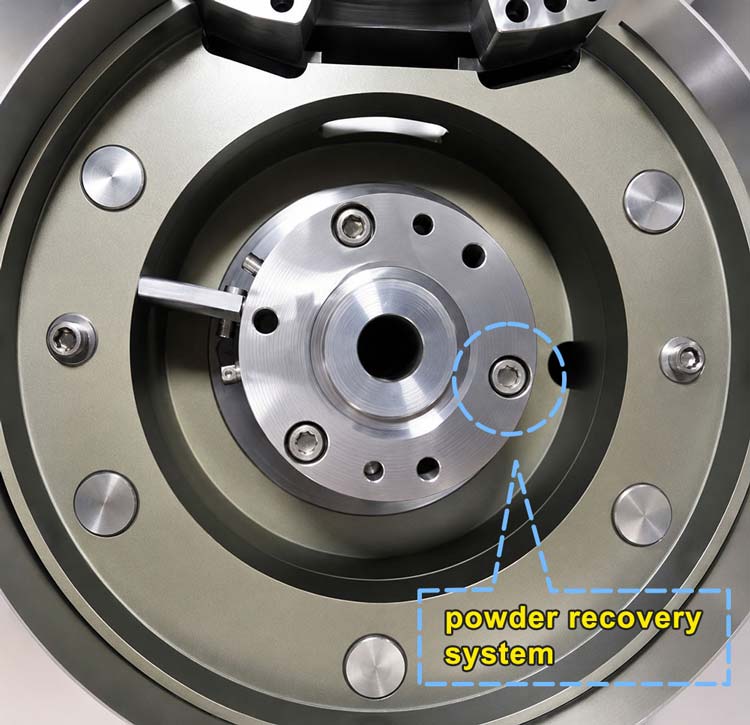

2: How Does a "Dual-Pipe Recovery System" Eliminate Cross-Contamination and Zero Material Waste?

In high-value pharmaceutical manufacturing, the mantra is simple: "Your powder is more expensive than gold". Traditional recovery methods frequently fail to segregate material, often mixing waste capsules with leaked powder, which leads to inevitable cross-contamination and significant material loss.

Our system solves this critical challenge by utilizing an exclusive "Dual-Pipe Recovery System" built on advanced negative pressure technology. This system operates through two independent, dedicated pipelines:

Waste Capsule Extraction: One line is dedicated exclusively to sucking away discarded capsules, ensuring they are removed from the mechanical platform without interfering with production.

Pure Powder Reclamation: A second, completely independent pipe is used to recover pure, leaked powder.

Because the pure powder is reclaimed through a line that never interacts with waste capsules, the system guarantees that the recovered material never suffers from cross-contamination. This allows the clean, reclaimed powder to be reused directly in production without the need for additional re-sterilization, effectively allowing your facility to "pick up money" and achieve a goal of zero material waste.

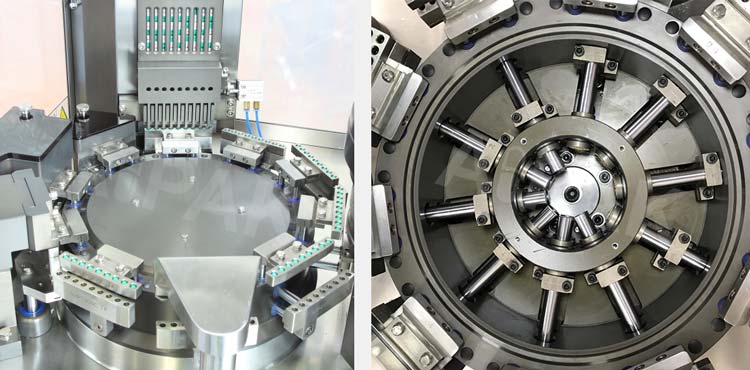

3: How Does Enclosed Turret Architecture Prevent Cross-Contamination in Multi-Product Facilities?

To achieve true cleanroom integrity in multi-product environments, a modern pharmaceutical capsule filling machine must be engineered as a "Maintenance-Free Enclosed Fortress". Our enclosed capsule filler utilizes an innovative ten-station rotary turntable that is machined and molded in a single, one-piece structure. By eliminating split gaps and assembly joints, this design removes the hidden crevices where fine powder dust typically accumulates and cross-contaminates subsequent batches.

The integrity of this "Enclosed Fortress" is further reinforced by:

Advanced Shaft Sealing: The system employs high-specification lipped hardware rings for all shaft seals, ensuring a 3-year status of zero powder ingress into the internal mechanical components.

Contamination Mitigation: This design effectively prevents powder from scattering across the mechanical platform, protecting the internal drive mechanisms and ensuring purity between different active pharmaceutical ingredients.

WIP Compatibility: The seamless, high-sealing architecture is fully compatible with Wash-in-Place (WIP) protocols, allowing for efficient, thorough cleaning cycles that maintain your facility’s compliance and sanitary standards at all times.

Section 5: Validation and Consistency

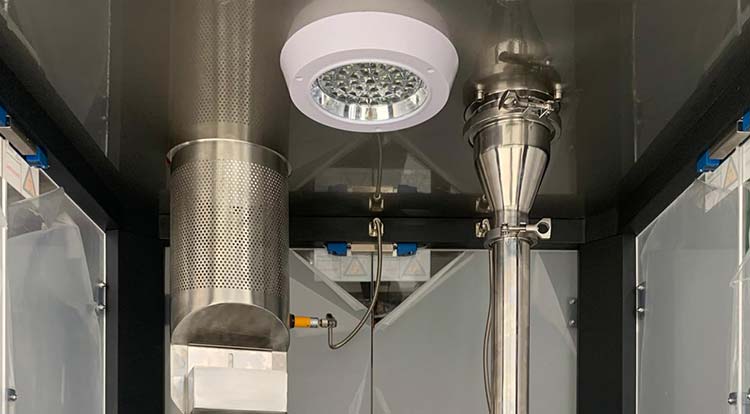

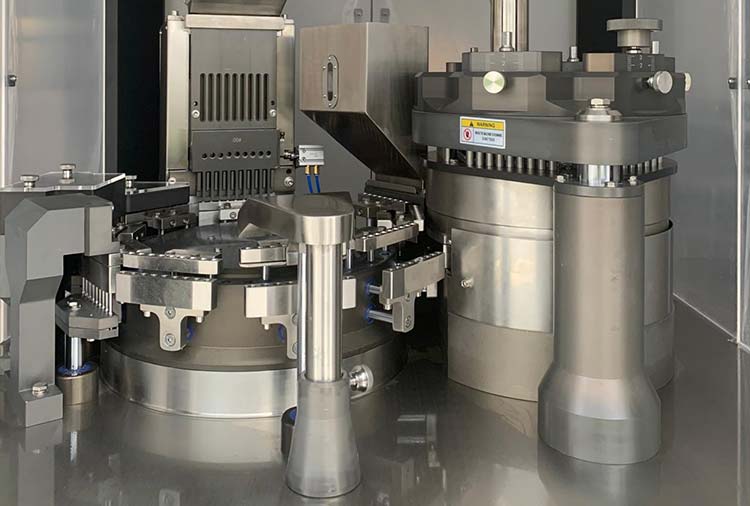

4: How Can Engineering Teams Optimize Tooling to Maintain Precision Over Long-Shift Production Cycles?

Maintaining dosing consistency during long production runs is the ultimate test of an automatic capsule filler machine. A frequent cause of performance degradation in a capsule filler machine is the accumulation of hygroscopic powder residues within the upper and lower mold holes, which prevents the capsule from separating correctly and leads to weight fluctuations.

To optimize tooling performance and ensure consistent precision, our systems utilize integrated "high-pressure air-jet clean" technology. This engineering solution maintains reliability through:

Intermittent Cleaning: On every single rotation, the system delivers a burst of purified compressed air directly into the mold holes.

Residue Prevention: This high-pressure blast forces out any residual powder or debris, preventing the buildup that typically causes capsules to stick or fail to separate.

Operational Stability: By ensuring that the mold holes are thoroughly purged during every cycle, the system eliminates the mechanical failures associated with residue buildup, allowing your team to maintain high-speed throughput and consistent dosing precision throughout even the most demanding long-shift production cycles.

Conclusion

To summarize, mastering the mechanics of automatic capsule filling is not just about raw speed, but about achieving consistent dosing precision through advanced servo-driven systems and superior dust containment. By integrating enclosed turret architectures and maintaining rigorous cGMP validation protocols, pharmaceutical producers can effectively eliminate cross-contamination and ensure the highest levels of content uniformity. We invite your engineering team to collaborate with AIPAK to review your current production bottlenecks and optimize your encapsulation process for future-proof performance.
