5-25 ML Oral Syrup Filling Machine Production Line

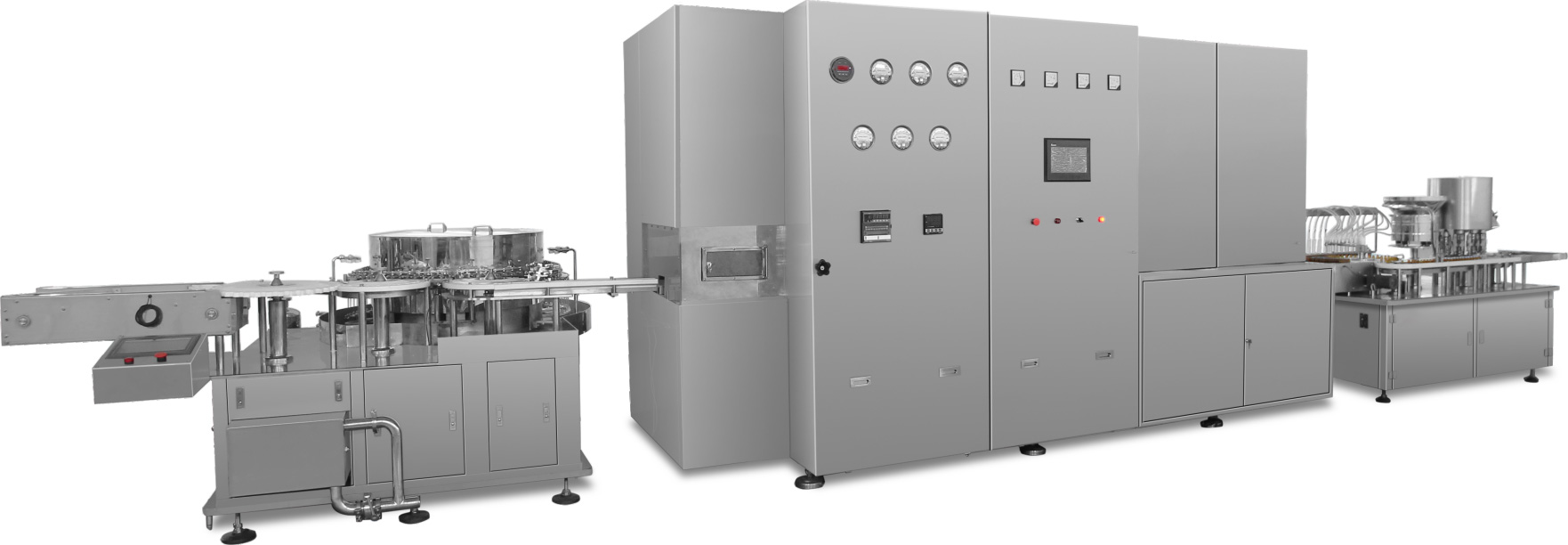

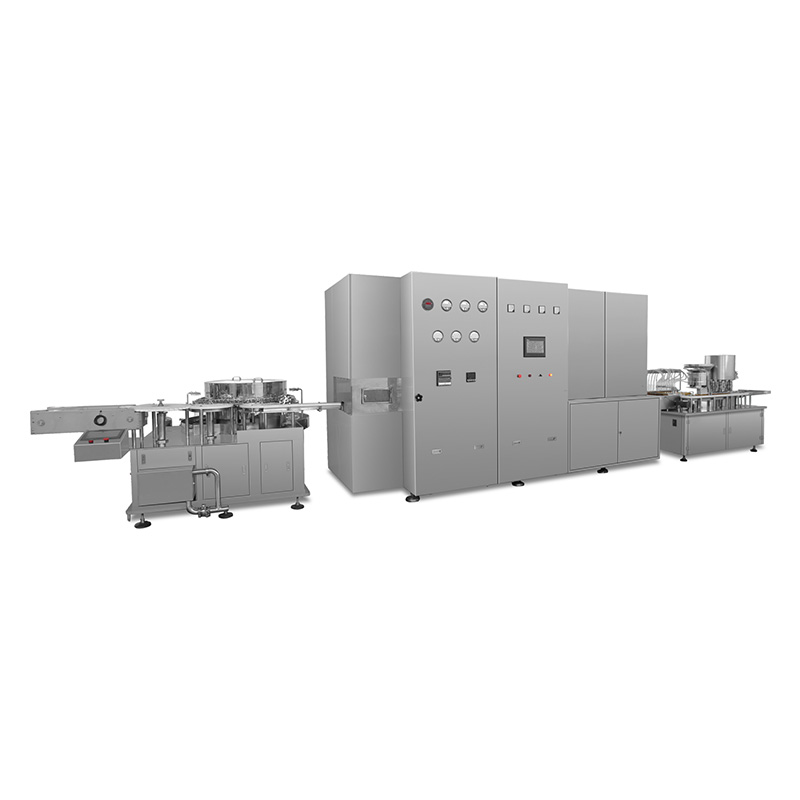

Aipak 5-25 ML Oral Syrup Filling Machine Production Line is suitable for 5-25ml tube type bottle oral liquid washing, drying, filling and capping(roll). Production Line composed by vertical ultrasonic wave washing machine, air circulation tunnel oven, oral liquid filling capping(roll) machine.Can use a production line or stand-alone.

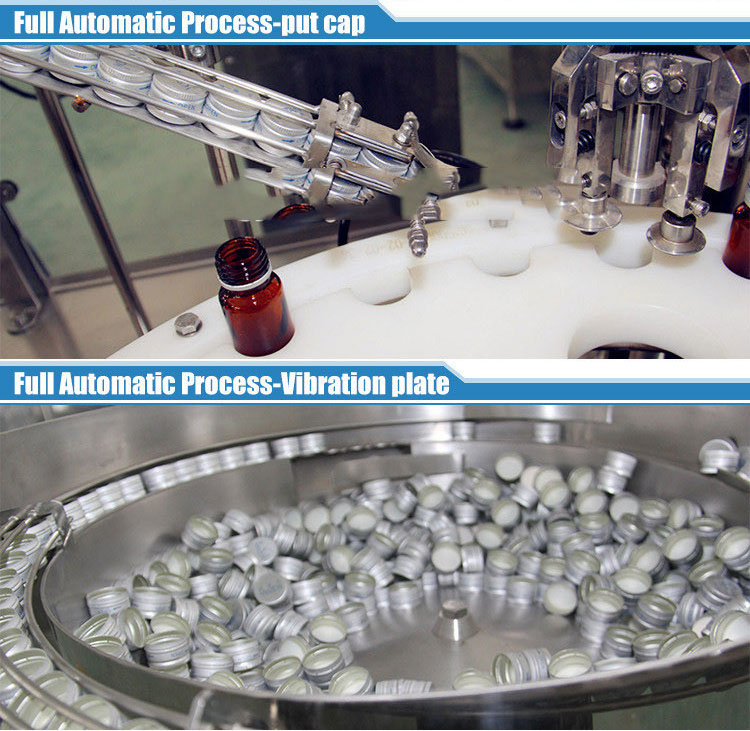

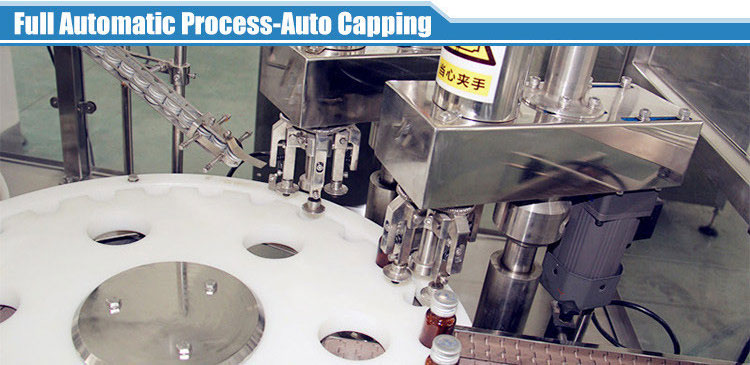

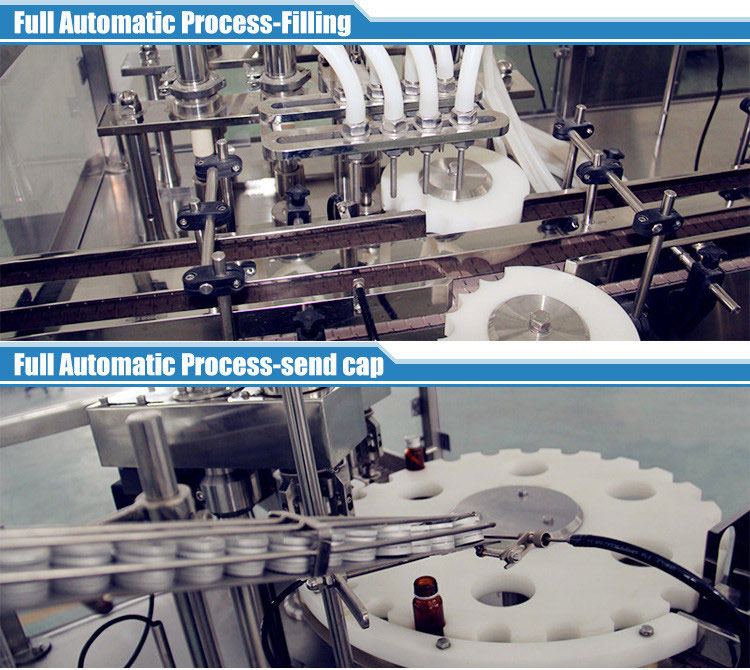

Aipak 5-25 ML Oral Syrup Filling Machine Production Line technological process: Mesh belt into the bottle, Ultrasonic wave washing, Three times water and air clean bottle inside and outside, Dry and sterilization, Filling and capping(roll).
Aipak Syrup Filling Machine performance stable, the operation is very simple. According to customer technical requirements configuration can satisfy different specifications and production speed.

This production line performance stable,operstion is very simple,According to customer technological requirements configuration can satisfy different specifications and production speed.
The machine is suitable for medical,chemical and food industries. The filling head is 8 heads. The filling precision is high.(the applicable specification is from 20ml to 500 ml. Increase the pumps can be increased the production capacity.) It can use positioned filling. The pumps and the parts which contact the liquid are made of 316L stainless steel or health material. The whole machine is made of stainless steel material.

Product No	APKGZ-4	APKGZ-8	APKGZ-16
Applicable specification	5-25ml	5-25ml	5-25ml
Production speed	60-80bottle/min	150-220bottle/min	300-350bottle/min
Filling error	±1~2%	±1~2%	±1~2%
Water pressure and water consumption	0.25-0.35MPa,0.5m³/h	0.25-0.35MPa,0.5m³/h	0.25-0.35MPa,0.5m³/h
Purify compressed air pressure and air consumption	0.3-0.5MPa,5~10m³/h	0.3-0.5MPa,10-15m³/h	0.3-0.5MPa,10-45m³/h
Power supply	380/220v,42.5KW	380/220v,45KW	380/220v,45KW
Exhaust volume	2600m³/h	2800m³/h	3200m³/h
Dimension	400013001500mm	1100018002000mm	1200025002400mm
Weight	650kg	3000kg	7500kg
