• Wide Packing Range

  • Simple & Convenient Operation

  • Perfect & Good Sealing Quality

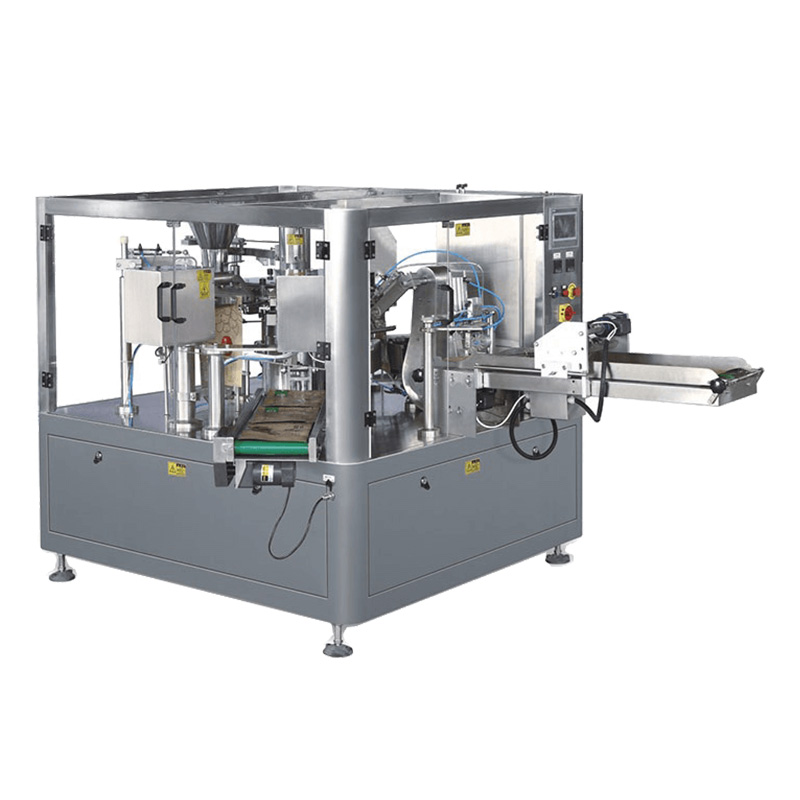

Rotary Packing Machine

Dosing system

Multihead-WeigherAugur-FillerPiston Filler

1. Multihead Weigher                                                2. Augur Filler                                                       3. Piston Filler

AIPAK Rotary packing machine is matched with different measuring instruments (such as Multihead weigher, volumetric piston filler, Auger fillers, etc.), it is suitable for automatic packaging of materials such as granules, powder, liquid and sauce.

  • Model: RL8-200; Pouch width: 80-200mm; Pouch Height: ≤350mm; Speed: 20-60pouches/min;
  • Model: RL8-250; Pouch width: 140-260mm; Pouch Height: ≤350mm; Speed: 20-50pouches/min;
  • Model: RL8-300; Pouch width: 200-310mm; Pouch Height: ≤450mm; Speed: 20-40pouches/min;

Rotary Packing Machine products 1

Rotary Packing Machine products 3



Rotary Packing Machine details



FEATURE

  • Easy to operate, SIEMENS PLC and Touch Screen control system.
  • Stainless steel housing, parts in contact with the product and bags comply with GMP requirements, guarantee hygiene and food safety.
  • Includes Japanese Dry Type vacuum pump for an ideal vacuum suction of the pouch pick up and opening, reliable, low noise and low maintenance.
  • Automatic control: non-filled /not sealed/no pouch or in case of pouch opening errors, the pouch can be used again.
  • Easy changeover for different pouch sizes. The gripper width can be adjusted automatically from the touch screen panel.
  • Wide range of usable packing materials, suitable for multi-layer compound, Aluminum foil, laminating film, Paper laminating film etc.

DATA SHEET

Model

APKRL-200C

APKRL8-260C

APKRL6-320C

APKRL6-350C

Working Position

8 Stations

8 Stations

6 tations

6 tations

Working Process

1、On Bags 2、The play yards & bag 3、Cutting 4、Vibration & Poke Pressure

5、Sealing 6、Sealing output

2、On Bags 2、The play yards & bag 3、Cutting 4、Vibration & Poke Pressure

5、Reserved 6、Compaction 7、Sealing 8、Sealing output

Pouch pattern

Side sealing,stand-up pouches,zipper bags,handbags,paper bags and other bags

Bag Size

W:60~210mm

L:≤350mm

W:140~260mm

L:≤350mm

W:180~320mm

L:≤450mm

W:200~350mm

L:≤450mm

Filling Scope

10g-2500g(With Capcity and material properties of the bag)

Packing Speed

10~65bags/min(Speed is determined by the product itself and filling weight)

Total Power

380V 2.5KW

380V 2.5KW

380V 2.5KW

380V 2.5KW

Weight

1200KG

1300KG

1400KG

1400KG

Dimensions

166x151x145cm

166x180x148cm

177x161x150cm

177x161x150cm

Compressed Air Consumption

0.6m3/min(Compressed air provided by the user)
