• Wide Packing Range

  • Simple & Convenient Operation

  • Perfect & Good Sealing Quality

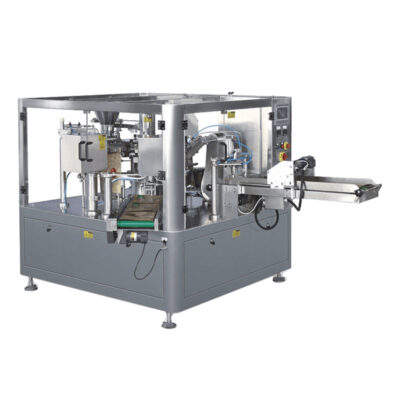

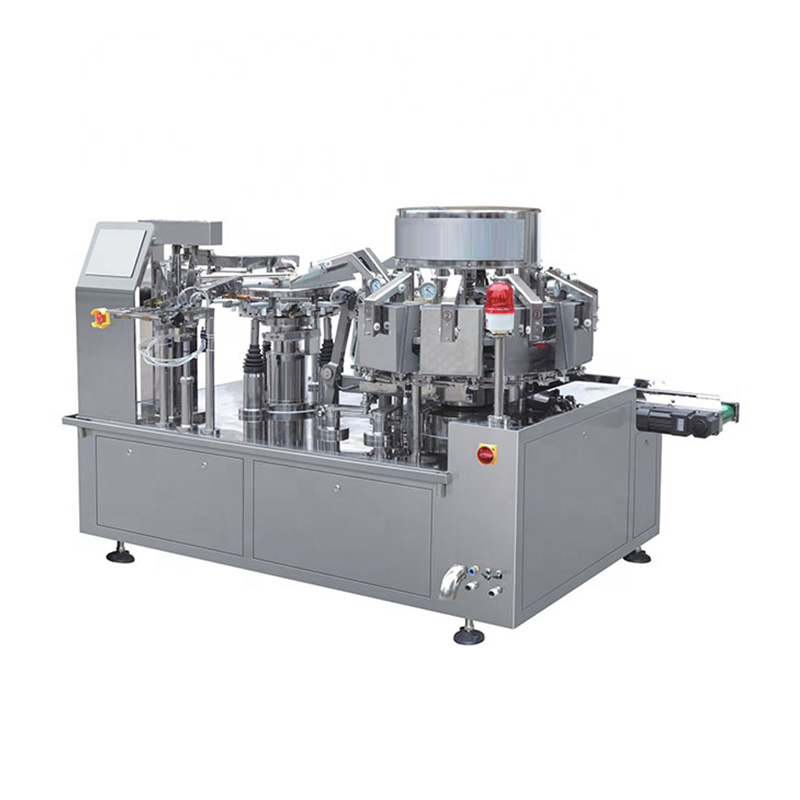

Automatic Food Vacuum Rotary Packing Machine

Aipak Automatic food vacuum rotary packing machine is available with various weighing and feeding systems,widely used for automatic packaging of small fish,pickles,nuts,spicy puffing, marinated products,soy products,fish products,meat products and other materials.

vacuum rotary packing machine product

FEATURE

  • The automatic rotary bag type packaging vacuum integrated machine (filling system and vacuum system respectively);
  • Easy to operate: PLC touch screen control, human-computer interface operating system, intuitive and convenient operation;
  • Convenient adjustment: realize full automation, only input the required parameters from the human-computer interface, and the packaging machine can automatically adjust to the required command part;
  • High degree of automation: it can meet the requirements of full automatic vacuum, realize unmanned in weighing and packaging process, and alarm automatically in case of failure;
  • Perfect prevention system can intelligently detect whether the bag is opened and opened completely, and if the material is not properly added, it is not hot sealed, and the bag and logistics are not wasted and the cost can be saved;
  • The equipment meets the hygiene standards of food processing machinery, and the parts contacting with materials are processed with 304 stainless steel or other materials conforming to the food hygiene requirements to ensure the hygiene of food and GMP standard;
  • The cleaning of bag packing machine is convenient and the vacuum room can be cleaned.

DATA SHEET

Model

APKRL-GD-ZK130

APKRL-GD-ZK160

APKRL-GD-ZK200

Drive way

Inverter motor drive /serve drive

Packaging Materials

Aluminium foil bags,composite flat bags,PE bags,Retort pouch

Packaging specifications

W:50-130mm L:≤200mm

W:80-160mm L:≤210mm

W:130-200mm L:≤300mm

Filling materials

10 ~500g(By Product Characteristics)

Packing speed

30~65bag/min(By Product Characteristics)

Weight Accuracy

≤±1%(By Product Characteristics)

Weight

1600KG

Total Power

4KW(Not including vacuum pump)

Drive power supply

380V / 50Hz

Overall Dimensions

2200x1600x2300mm(Does not include lifting)

2420*1700*1800(L*W*H)

Compressed Air Consumption

≥0.6m3/min(Compressed air provided by the user)

Cooling water

Cooling water:15-20°C、3 liters/min

Control power

DC24V
