• Wide Packing Range

  • Simple & Convenient Operation

  • Perfect & Good Sealing Quality

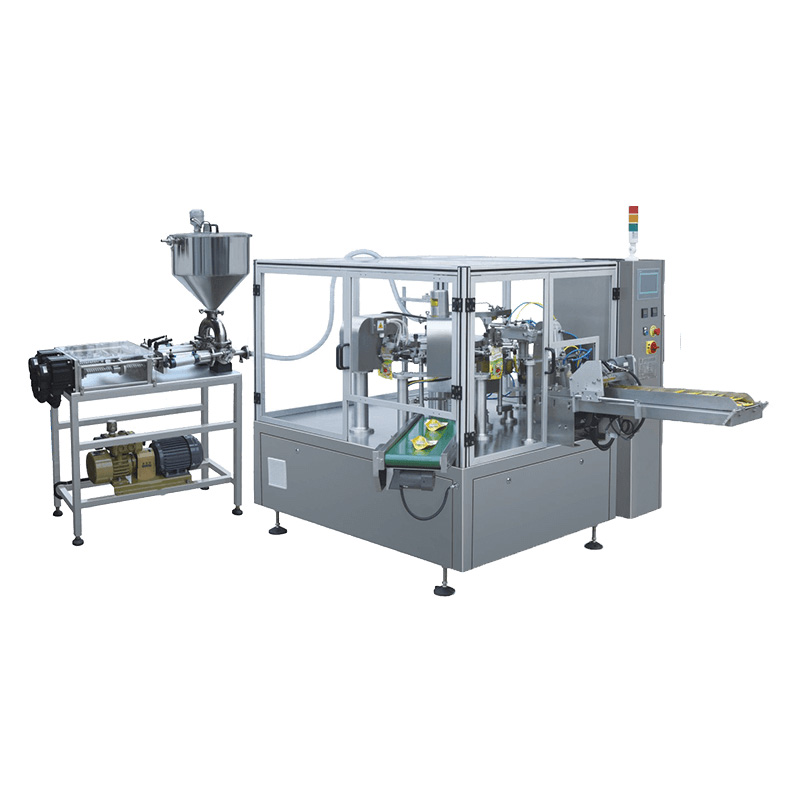

Rotary Liquid Pouch Packing Machine

Dosing system

Piston FillerHopperRotary Pump

Piston Filler                                                      Hopper                                                                    Rotary Pump

Aipak Liquid pouch packing machine is equipped with pistion filler as the dosing system, it is widely applicated to packing liquid and paste, such as detergent, softener, shampoo, shower gel, milk, water, juice, soybean sauce, oil, ketchup, mayonnaise and so on.

  • Model: RL8-200; Pouch width: 80-200mm; Pouch Height: ≤350mm; Speed: 20-60pouches/min;
  • Model: RL8-250; Pouch width: 140-260mm; Pouch Height: ≤350mm; Speed: 20-50pouches/min;
  • Model: RL8-300; Pouch width: 200-310mm; Pouch Height: ≤450mm; Speed: 20-40pouches/min;

Rotary Liquid Pouch Filling And Sealing Machine product

Rotary Packing Machine details

FEATURE

  • Easy to operate, SIEMENS PLC and Touch Screen control system.
  • Stainless steel housing, parts in contact with the product and bags comply with GMP requirements, guarantee hygiene and food safety.
  • Includes Japanese Dry Type vacuum pump for an ideal vacuum suction of the pouch pick up and opening, reliable, low noise and low maintenance.
  • Automatic control: non-filled /not sealed/no pouch or in case of pouch opening errors, the pouch can be used again.
  • Easy changeover for different pouch sizes. The gripper width can be adjusted automatically from the touch screen panel.
  • Wide range of usable packing materials, suitable for multi-layer compound, Aluminum foil, laminating film, Paper laminating film etc.

DATA SHEET

Model

APKRL200-Y

APKRL260-Y

APKRL320-Y

Pouch pattern

Laminated film PP/PE Foil

Bag Size

W:8~200mm

L:≤100-350mm

W:140~260mm

L:≤350/450mm

W:180~320mm

L:≤450mm

Filling Scope

≤1000g

 ≤3000g

  ≤5000g

Packing Speed

20~50bags/min

10~40bags/min

5~30bags/min

Total Power

3W

Voltage

380v 3phase 50Hz

Weight Accuracy

≤±1%

≤±1%

≤±1%

Compressed Air Consumption

0.6m3/min(Compressed air provided by the user)
