• Wide Packing Range

  • Simple & Convenient Operation

  • Perfect & Good Sealing Quality

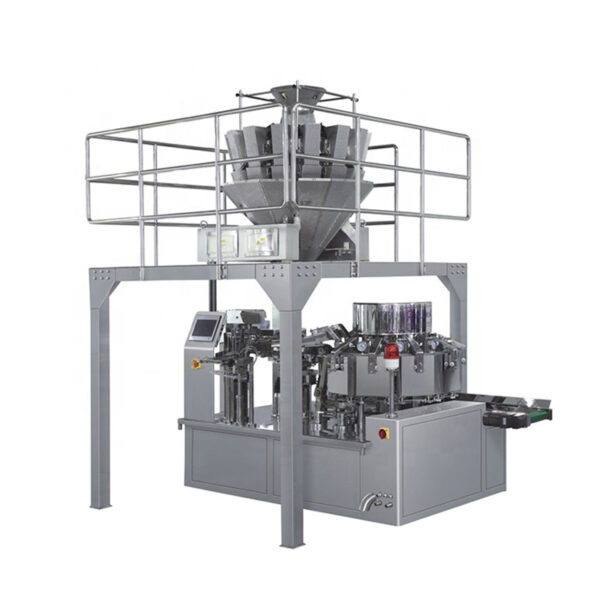

Fully Autoamtic Rotary Bag Vacuum Packing Machine

Aipak Fully automatic rotary bag vacuum packing machine can use a manipulator to automatically take out the vacuum packaging bag, automatically open it, automatically print the production date and batch number, automatically load materials, and automatically vacuum packaging. It completely realizes unmanned operation and truly realizes automatic packaging.

The vacuum rotary  packing machine is controlled by Siemens PLC in Germany. Its man-machine interface uses Siemens in Germany, which can monitor the whole machine. If there are abnormal conditions such as empty bag and not on the bag, PLC can judge the abnormal conditions, and then output abnormal signals to control the packaging machine to take corresponding measures to avoid waste of materials and packaging bags.

Suitable for all kinds of solid particle vacuum products (such as drunkard, peanut, beef jerky).

Fully automatic rotary bag vacuum packing machine Fully automatic rotary bag vacuum packing machine



FEATURE

  • Full automatic bag feeding vacuum packaging series can meet various functions and materials.
  • The rotary automatic bag feeding vacuum packaging machine is composed of two separate rotary bodies (filling system and vacuum system respectively). The filling system is intermittent rotary operation, and the vacuum system is continuous rotary movement.
  • Quickly change the specifications of the packaging bag, and the width of the automatic bag feeding device can be automatically adjusted at one time.
  • Meet the hygiene standards of food processing machinery. The parts of the machine in contact with materials or packaging bags are processed with stainless steel or other materials meeting the requirements of food hygiene to ensure the hygiene and safety of food.
  • Easy to clean, the vacuum chamber can be cleaned
  • Low loss of packaging materials. The machine uses prefabricated packaging bags with perfect pattern and good sealing quality, so as to improve the product grade. No cutting, no sealing, the bag can be recycled. No waste of bag.
  • Easy to operate, using advanced PLC and pod (touch screen) electrical control system, friendly man-machine interface, easy to operate. It can automatically adjust the angle and time of pneumatic components.
  • Sealing temperature monitoring function, if the heating tube or thermocouple is damaged, it will be displayed in the touch screen to give an alarm.
  • External vacuum pump.

DATA SHEET

Model

APKRL-GD-ZK130G

APKRL-GD-ZK160G

APKRL-GD-ZK200G

Working Process

1. Loading bag 2. Opening bag 3. Blanking 4. Adding liquid 5. Reserving 6. Reserving 7. Crossing bag 8. Reserving → (vacuum)

1. Connect the tape 2. Close the cover 3. Primary vacuum 4. Secondary vacuum 5. Tertiary vacuum 6. Fourth vacuum 7. Seal 8. Seal cold cut 9. Vent 10. Open the cover and take out the bag

Sealing style

Instant heating sealing and instant cold cutting after sealing to ensure beautiful sealing

Packing speed

35~60bags/min(By Product Characteristics)

Packaging Materials

Aluminum foil bags, paper bags, nylon bags and other film coated bags

Packaging specifications

W:50mm-130mm L:80mm-200mm

W:80mm-160mm L:80mm-210mm

W:130-200mm L:≤300mm

Total Power

5.5KW

Drive power

380V 50HZ

Overall Dimensions

2100mmx1400mmx1600mm(L*W*H)not include lifter

2420*1700*1800mm

Weight

2.2T

Use environment

Room temperature 10-40 ℃, 30-90% RH, no dew, no corrosive gas, no dust and other harsh environment
