• Wide Packing Range

  • Simple & Convenient Operation

  • Perfect & Good Sealing Quality

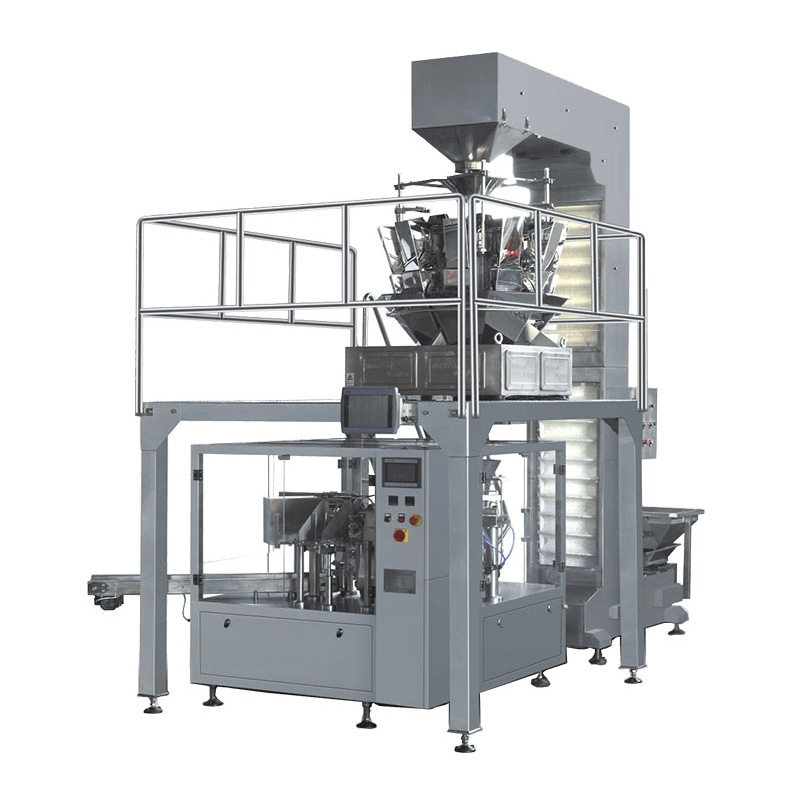

Multihead Weigher Rotary Packing Machine

Dosing system

Multihead-Weigher Working-Platform Z-Conveyer

1. Multihead Weigher                                                   2. Z Conveyer                                                                      3. Working Platform

Aipak Mulyihead weighter rotary packing machine consists to the bag automatic packaging machines,intelligent combination weighter,bucket elevator,working platforms,support form,mainly applicable to a variety of granular,bar/irregular lump materials,such as puffed food,snack food,raisins,red dates,melon seeds,almonds,pine nuts,candy,jelly,frozen food,pet food and other materials aoto complete feeding,take the bag,play yards,open the bag,quantitative,filling,sealing,output of finished packaging.

  • Model: RL8-200; Pouch width: 80-200mm; Pouch Height: ≤350mm; Speed: 20-60pouches/min;
  • Model: RL8-250; Pouch width: 140-260mm; Pouch Height: ≤350mm; Speed: 20-50pouches/min;
  • Model: RL8-300; Pouch width: 200-310mm; Pouch Height: ≤450mm; Speed: 20-40pouches/min;

Multihead Weigher Packing Machine products 1

Multihead Weigher Packing Machine products 1

Rotary Packing Machine details

FEATURE

  • Easy to operate, SIEMENS PLC and Touch Screen control system.
  • Stainless steel housing, parts in contact with the product and bags comply with GMP requirements, guarantee hygiene and food safety.
  • Includes Japanese Dry Type vacuum pump for an ideal vacuum suction of the pouch pick up and opening, reliable, low noise and low maintenance.
  • Automatic control: non-filled /not sealed/no pouch or in case of pouch opening errors, the pouch can be used again.
  • Easy changeover for different pouch sizes. The gripper width can be adjusted automatically from the touch screen panel.
  • Wide range of usable packing materials, suitable for multi-layer compound, Aluminum foil, laminating film, Paper laminating film etc.

DATA SHEET

Model

APKRL200-G

APKRL260-G

APKRL320-G

Pouch pattern

Laminated film PP/PE Foil

Bag Size

W:80~200mm

L:≤100-350mm

W:140~260mm

L:≤350/450mm

W:180~320mm

L:≤450mm

Filling Scope

10-1500g

10-1500g

10-1500g

Packing Speed

10~70bags/min

10~55bags/min

10~45bags/min

Total Power

5KW

Voltage

380v 3phase 50Hz

Weight Accuracy

≤±1%

≤±1%

≤±1%

Compressed Air Consumption

0.6m3/min(Compressed air provided by the user)

Compressed Air Consumption)
