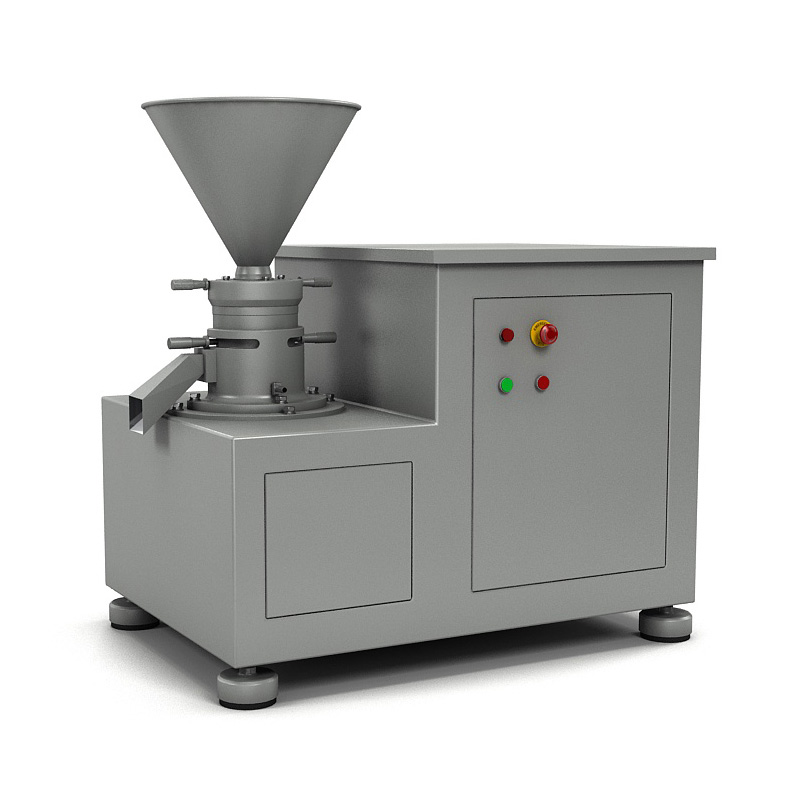

JM Series Two-Stage Colloid Mill TAG

Main Application:This machine is applied for wet material super fine crushing in trades such as pharmaceutical, foodstuff, chemical and others trades, suitable for emulsifying, mixing and crushing all kinds of semi-moist or emulsions materials. Its main technique parameters have reached the international advanced standard.

Working principle:With its flexible and fixed mills with different geometric shapes rotating at high speed making the relative motion, this machine crushes materials by cutting, pulverizing, and high frequency vibrating. There are two stage of pulverizing areas the first one is for fine pulverizing, and the second one is for super-fine pulverizing, the pulverizing fineness can be adjusted by changing the rip between the upper and down mills. It can well reach the required effect of supper-fine pulverizing at once. Featured with compact conformation, steady run, low noise, corrosion resistant, easy clean, convenient maintain etc., it is the most ideal equipment for wet pulverizing in our nation .ced standard.

The food industry: Aloe vera, pollen broken wall, pineapple, sesame, tea, ice cream, cream, jam, fruit juice, moon cake, soybean, bean paste, red bean milk, peanut milk, protein, soy milk, drinks, dairy products, malted milk, essence, and emulsifying pigskin emulsified chicken bone cement and other animal skins, etc.
The chemical industry: Paint, pigment, dyestuff, paint, lubricating oil, grease, diesel oil, petroleum catalyst, emulsified asphalt, adhesives, detergents, plastics, glass fiber reinforced plastic, leather, etc.
Daily chemical: Toothpaste, detergent, shampoo, shoe polish, cosmetics, liquor, soap, face cream, etc.
Pharmaceutical industry: Each syrup, nutrient solution, proprietary Chinese medicine, paste reagent, biological products, cod liver oil, pollen, royal jelly, vaccine, all kinds of ointment, a variety of oral solution, injection, static drops, pancreatic enzyme preparation, emulsion, animal husbandry, etc.
Construction industry: All kinds of coating. Including external coatings, anticorrosive coatings, water cold porcelain paint, colorful coating, ceramic glaze, etc.
Other industrial: Plastic industry, textile industry, papermaking industry, biological, chemical, environmental protection and energy saving, coal flotation agent, nanometer material. The large and medium-sized institutions, scientific research units, etc.

FEATURE

This machine is simple in structure, easy to assemble and clean the crushing chamber, and all parts contacting the material are made of stainless steel,acid and corrosion resistant, making crushed material be in conformity with hygiene requirement. In addition, this machine has smooth operation, convenient move, low noise, high crushing effect and low power consumption.

DATA SHEET

Model JM-50 JM-100 JM-150 JM-200 JM-250 JM-300 JM-350 JM-450
Emulsion fineness 2-50 μm 2-50 μm 2-50 μm 2-50 μm 2-50 μm 2-50 μm 2-50 μm 2-50 μm
Adjustment range 1-0.01mm 1-0.01mm 1-0.01mm 1-0.01mm 1-0.01mm 1-0.01mm 1-0.01mm 1-0.01mm
Output 0.01-0.3t/h 0.5-2t/h 0.8-5t/h 2-7t/h 4-15t/h 6-20t/h 8-30t/h 10-40t/h
Power 1.5kw 5.5kw 11kw 18.5kw 37kw 55kw 75kw 110kw
Spindle speed 4500r/min 4500r/min 4500r/min 4500r/min 4500r/min 4500r/min 4500r/min 4500r/min
Disc diameter ¢50mm ¢100mm ¢150mm ¢200mm ¢250mm ¢300mm ¢350mm ¢450mm
Outlet diameter ¢15mm ¢32mm ¢40mm ¢65mm ¢75mm ¢85mm ¢85mm ¢90mm
Feed port diameter ¢32 ¢50mm ¢80mm ¢120mm ¢140mm ¢159mm ¢159mm ¢168mm
Model cooling water diameter ¢1/8″ ¢1/4″ ¢1/4″ ¢1/4″ ¢1/4″ ¢1/4″ ¢1/4″ ¢1/4″
Dimension 750*400*810
mm
1060*500*1080
mm
1100*520*1250
mm
1200*560*1420
mm
1500*700*1600
mm
1800*900*1800
mm
2100*1100*2000
mm
2500*1400*2300
mm
Weight 100kg 275kg 525kg 650kg 1300kg 1600kg 2200kg 3000kg
