B Series Cyclone-separating Pulse Dust Collecting Crusher

Main Application:This machine is applied in such trades as pharmaceutical, chemical, foodstuff, magnetic material, powder etc., It is a new generation crushing equipment combining crushing, dust-collecting and continuous-discharge into a unit.

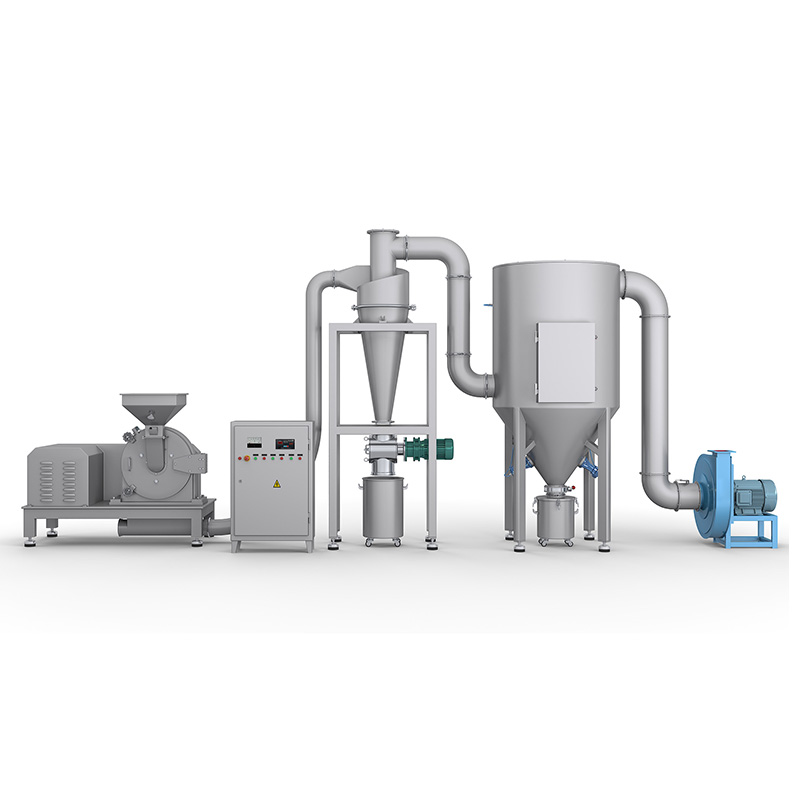

Working principle:This machine is made up of crusher, cyclone separator, pulse dust collecting box and blower fan etc.. By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. The crushed material flows into the cyclone separator by the gravitation of blower and rotating centrifugal force, then discharges through gate blower, dust come into the pulse dust collecting box, filtrated and recycled by the filter cylinder. The crushing size can be adjusted by the screen. Designed by the standard of GMP the whole machine is made of stainless steel, and there is no flying dust during the process of production.

FEATURE

  1. Seasoning universal grinding machine has a simple structure design for long lasting, stable, low noise, high performance and easy maintenance.
  2. The fixed and movable knives revolve in a high speed in the chamber.
  3. Materials will then flow out from the bottom exit. The fineness is adjustable by adopting various sift.

DATA SHEET

Model Production Capacity Feeding Size Crushing Fineness Spindle Speed Motor Power overall dimension weight
15BIV.V.VI 10-50kg/h 6mm 20-120mesh 6000r/min 2.2kw 550*400*850
mm
100kg
20BIV.V.VI 60-150kg/h 6mm 20-120mesh 4500r/min 4kw 550*600*1250
mm
280kg
30BIV.V.VI 100-400kg/h 6mm 20-120mesh 3800r/min 5.5kw 600*700*1450
mm
350kg
40BIV.V.VI 160-1000kg/h 10mm 20-120mesh 3400r/min 11kw 800*900*1550
mm
550kg
60BIV.V.VI 500-2000kg/h 12mm 20-120mesh 2800r/min 18.5kw 900*900*1880
mm
680kg
80BIV.V.VI 1000-5000kg/h 12mm 20-120mesh 2000r/min 37kw 1100*950*1960
mm
1500kg
100BIV.V.VI 2000-8000kg/h 12mm 20-120mesh 1500r/min 55kw 1350*1000*2100
mm
2500KG
