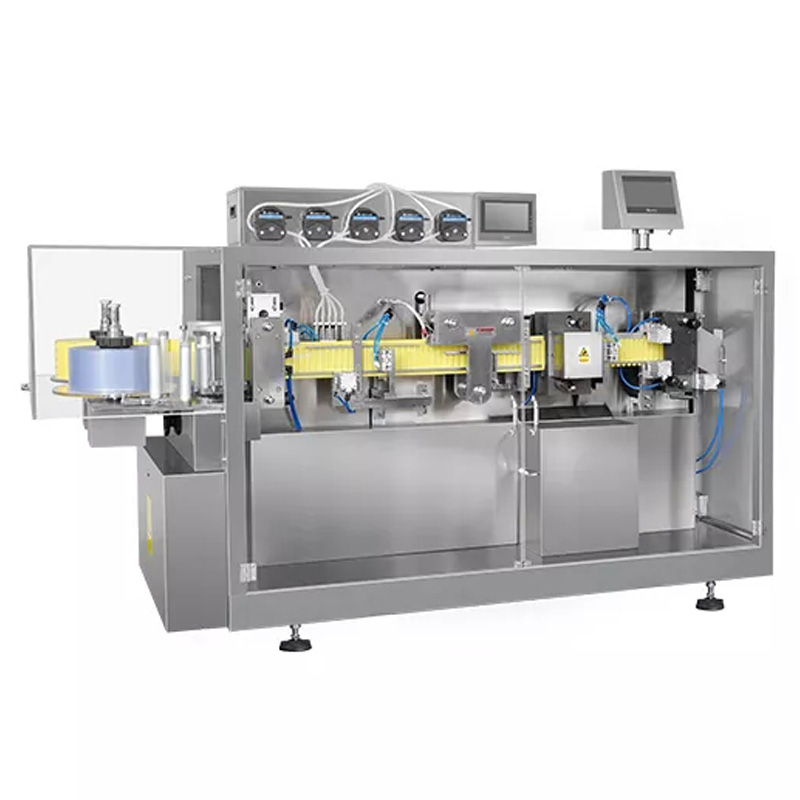

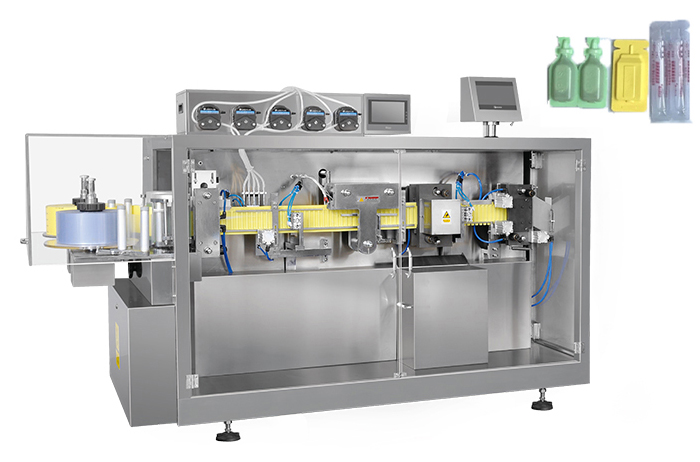

APKGGS-118(P5) Horizontal Liquid Filling And Sealing Machine

High speed
High precision
Advanced motion controller

APKGGS-118(P5) Plastic Ampoule Filling And Sealing Machine

Application

AIPAK GGS-118(P5) Plastic Ampoule Filling And Sealing Machine is a kind of plastic bottle thermoforming filling & sealing equipment,it’s suitable for bigger batch filling in pharmacy,pesticide,cosmetic ,food & beverage and nutrition etc.Field for liquid & Cream material,it’s widely used for filling oral liquid ,liquid pesticide & fertilizer,E-liquid ,liquid & Cream cosmetic,edible oil,beverage and liquid health care product etc.

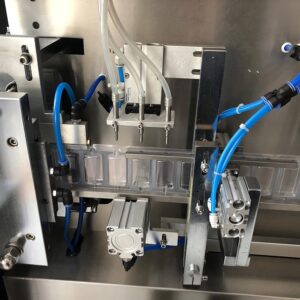

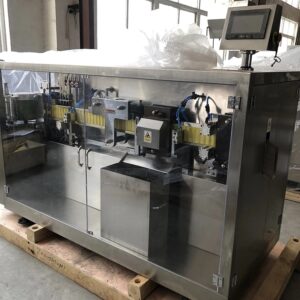

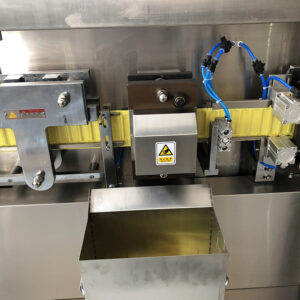

Detailed Images

FEATURE

The machine adopt HC high speed,high precision motion controller,adopt servo motor control the machine running,adjust more easy and accurate.
The machine can finish the following working procedure automatically through the program:PVC Roller release,PVC preheating,bottle forming,filling,end sealing,punching and cutting.
The machine adopt the human-machine interface operation,operation is easy and simple.
The filling head has no leak through,not appear foam and overflow.
The contact parts with the filled liquid adopt SUS316L,conforms to the GMP standard.
Filling system can choose peristaltic pump,rotary valve pump according to different filling material,measuring is precisely and the filling difference is small.
This model can make the stand bottle,and has te eye mark tracking system function,make the product more beautiful.

DATA SHEET

Model	APKGGS-118 P5
Max.Forming Depth	12mm
Forming Frequency	0-25 times
Packing Material Packaging	PVC/PE PET/PE(0.2-0.4)×140mm
Capacity	1-50ml
Power	7KW
Voltage	380V/50Hz
Weight	1000Kg
Outer Size L×W×H(mm)	2300×850×1400 (mm)
