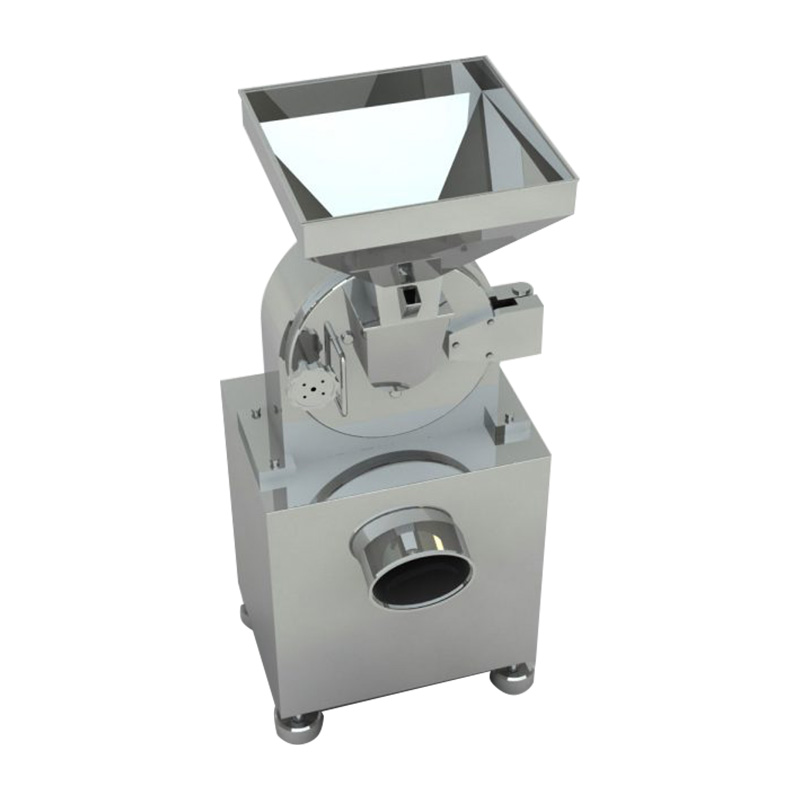

B Series Universal Crusher

This machine is applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc.

By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. Designed according to GMP standard and wholly made of stainless steel, with simple structure, high output and easy cleaning, this machine is the most ideal crushing equipment at present.

FEATURE

  1. Seasoning universal grinding machine has a simple structure design for long lasting, stable, low noise, high performance and easy maintenance.
  2. The fixed and movable knives revolve in a high speed in the chamber.
  3. Materials will then flow out from the bottom exit. The fineness is adjustable by adopting various sift.

DATA SHEET

Model Production Capacity Feeding Size Crushing Fineness Spindle Speed Motor Power overall dimension weight
15BIV.V.VI 10-50kg/h 6mm 20-120mesh 6000r/min 2.2kw 550*400*850
mm
100kg
20BIV.V.VI 60-150kg/h 6mm 20-120mesh 4500r/min 4kw 550*600*1250
mm
280kg
30BIV.V.VI 100-400kg/h 6mm 20-120mesh 3800r/min 5.5kw 600*700*1450
mm
350kg
40BIV.V.VI 160-1000kg/h 10mm 20-120mesh 3400r/min 11kw 800*900*1550
mm
550kg
60BIV.V.VI 500-2000kg/h 12mm 20-120mesh 2800r/min 18.5kw 900*900*1880
mm
680kg
80BIV.V.VI 1000-5000kg/h 12mm 20-120mesh 2000r/min 37kw 1100*950*1960
mm
1500kg
100BIV.V.VI 2000-8000kg/h 12mm 20-120mesh 1500r/min 55kw 1350*1000*2100
mm
2500KG
