Easy to clean and avoids corrosion
Easy to observe the mixing situation
Applicable for various materials

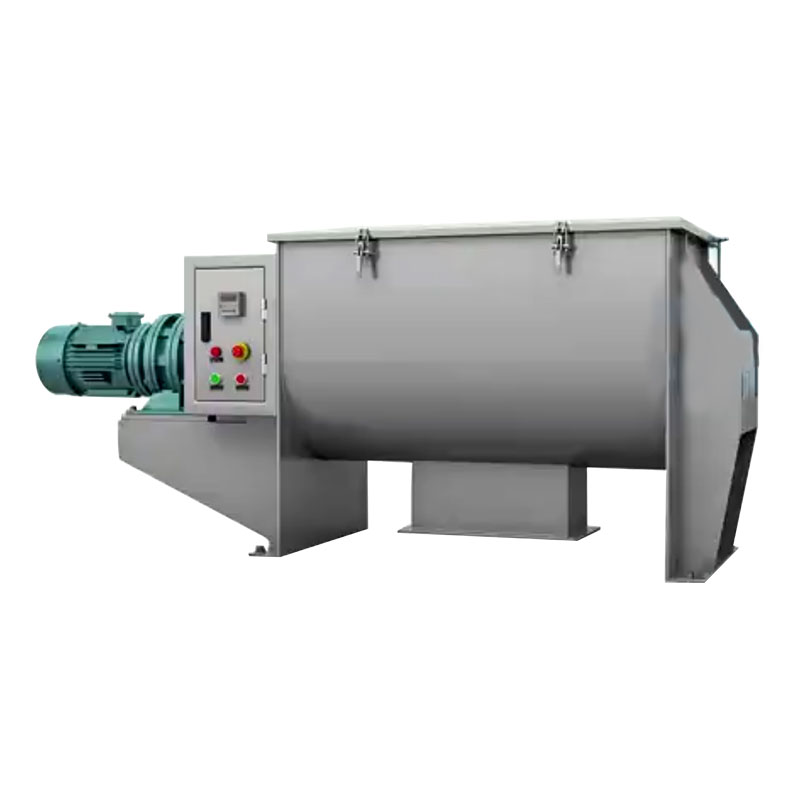

Industrial Double Ribbon Agitator Ribbon Blender For Supplement Powder

AIPAK APK-WLDH-1000 ribbon blender is a highly efficient and versatile mixing equipment and designed to mix and blend different types of materials to achieve a uniform and homogenous mixture. It is fast and efficient, its unique dual-ribbon design ensures a fast, homogeneous mix for a variety of materials. It is highly versatile that ideal for blending dry powders, granules, and pastes across numerous industries. It is durable and hygienic that constructed from stainless steel, and easy to clean, corrosion-resistant, and meets strict sanitation standards. Its smooth mixing process reduces the damage to fragile materials.Customized spiral blade structure is available for special materials.

FEATURE

1.Horizontal tank body, need small space but more capacity.

2.Dual screw structure-The inner screw push the material form central to sides and the outer screw push the material from sides to the center to make the material effective mixing.

3.Gear box drive the auger shaft , low noise and low malfunction, long using life.

4.U-Shape tank bottom, better for material discharge and cleaning

5.Pneumatic cylinder to control the discharge exit.

6.Gas pressure spring help the top cover easy open.

DATA SHEET

Model	Barrel Volume	loading volume	Mixing time	Stir Motor	Weight
APK-WLDH-100	100L	30-60L	0-99min	1.5-4kw	320kg
APK-WLDH-300	300L	100-180L	0-99min	3-5.5kw	510kg
APK-WLDH-500	500L	200-300L	0-99min	4-11kw	920kg
APK-WLDH-1000	1000L	400-600L	0-99min	7.5-15kw	1450kg
APK-WLDH-1500	1500L	600-900L	0-99min	11-18.5kw	1950kg
APK-WLDH-2000	2000L	800-1200L	0-99min	18.5-30kw	3160kg
APK-WLDH-3000	3000L	1200-1800L	0-99min	18.5-30kw	3300kg
APK-WLDH-4000	4000L	1600-2400L	0-99min	22-37kw	3620kg
APK-WLDH-6000	6000L	2400-3600L	0-99min	37-55kw	5400kg
APK-WLDH-8000	8000L	3200-4800L	0-99min	37-55kw	6880kg
APK-WLDH-10000	10000L	4000-6000L	0-99min	45-75kw	7900kg
