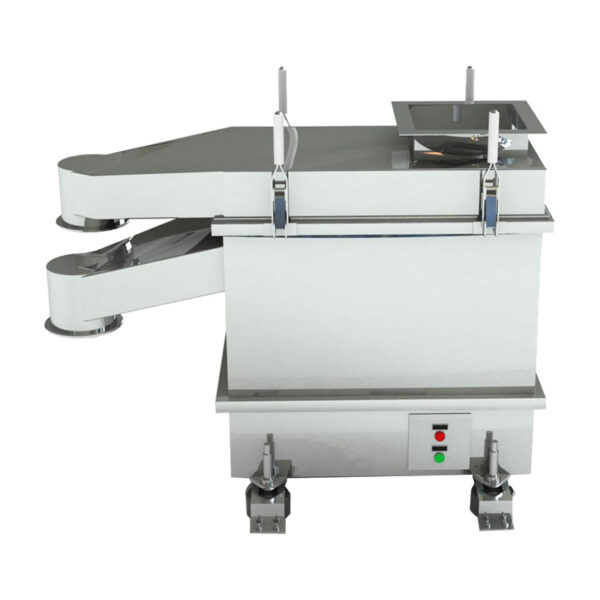

ZS Series Vibrating Rectangular Screening Machine

Designed and modified by importing the advanced foreign technology and in combination with GMP standard, this machine is widely used for grading and screening of industrial raw materials in such trades as pharmaceutical, chemical, foodstuff, metallurgy and electronics etc.

This machine is comprised of screen box, Vibration source and damper, vibrating frame and screen box are connected with 4-12 group soft rubber dampers fixed up and down, and the centrifugal force is generated therein, the floating amplitude is controlled by the damper, by which, material realizes a process of throw and lamination filtration downward, and therefore reaching the optimized grading and screening effect.

FEATURE

1.The whole machine is compact in structure, small in size and mobile.
2.Low energy consumption and high output.
3.Made of high quality stainless steel, it is precision polished inside and outside, and the finish is good.
4.Easy to clean, no dust, low noise.
5.Easy to operate, easy to maintain, in line with GMP requirements.

DATA SHEET

Model

Production capacity

Meshes screened

Motor power

Vibration frequency

Exciting force

Overall dimension

Weight

ZS-0.3㎡

50-300kg/h

3-150mesh

0.2kw

1400r/min

0-2.5kw

1110*500*900mm

150kg

ZS-0.5㎡

100-450kg/h

3-150mesh

0.2kw

1400r/min

0-2.5kw

1250*660*900mm

250kg

ZS-0.7㎡

200-650kg/h

3-150mesh

0.2×2kw

1400r/min

0-2.5kw

1780*650*960mm

280kg

ZS-0.8㎡

300-750kg/h

3-150mesh

0.4kw

1400r/min

0-2.5kw

1500*800*900mm

320kg

ZS-1.2㎡

500-1100kg/h

3-150mesh

0.75×2kw

1400r/min

0-2.5kw

1980*1050*1450mm

400kg

ZS-1.8㎡

800-1600kg/h

3-150mesh

0.75kw

1400r/min

0-2.5kw

2400*1200*1500mm

600kg

ZS-2.2㎡

1000-2500kg/h

3-150mesh

0.75×2kw

1400r/min

0-2.5kw

2800*1200*1600mm

800kg
