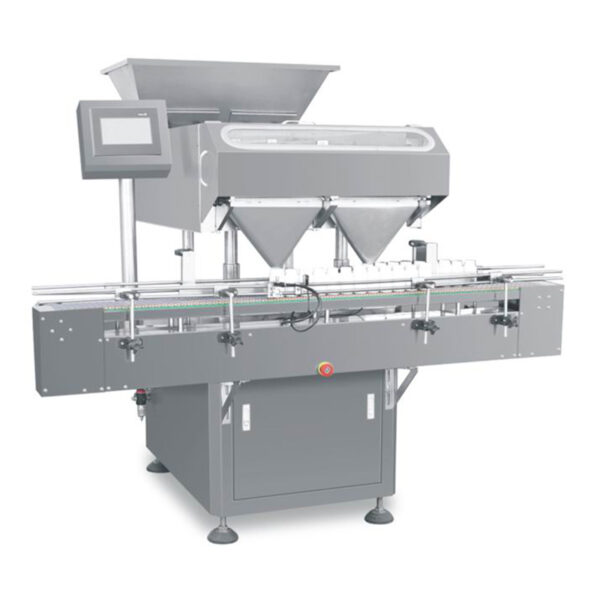

APC-16 High speed tablet capsule counting machine

This machine is the important equipment for the production line of vial solid preparations. It is used for counting and split charging of the tablet including the shaped tablet, hard capsule, soft capsule (various shapes, transparent, nontransparent) and pill. It is able to combine with the vial distributing machine, paper stuffing machine, desiccant inserter, cap screwing machine, electromagnetic induction foil-sealing machine and self-adherence labeling machine to form full-automatic high-speed bottled production line. It has been widely used in the industries such as pharmacy, food, chemical engineering, etc., It is fully conforming to GMP certification requirements.

FEATURE

  1. Strong compatibility,High speed electronic pill counter can count and bottle various kind of solid preparation or solid granules for example, tablet (including heteromorphism tablet),capsule,soft capsule( transparent and non-transparent),pill etc.
  2. Vibration cutting: channel vibration under homogeneous materials, unique patent agencies blanking,turning out material is steady, not damage.
  3. Anti high dust :Adopting the anti high dust photoelectric sensing technology only developed by our company ,it also can work stably under the high dust circumstance.
  4. Correct counting :With automatic photoelectric sensor counting ,the error of bottling is less than nation standard.5) Special structure of the discharge spout, can prevent blocking drugs, small bottle can fast bottling(optional) .
  5. High intelligence :High speed electronic pill counter has various alarm and control functions like no bottle no count, check fault automatically and so on.
  6. High intelligence :High speed electronic pill counter has various alarm and control functions like no bottle no count,check fault automatically  and so on.
  7. Easy operation :Adopting intellectualized design, all kinds of operation data can be set according to the  requirement .It can store 10 groups of setting parameters for use.
  8. Convenient maintenance :After simple training, the worker can operate easily.It is easy to disassembly,clean and change the components without any tools.
  9. Sealing and dustproof :Dust collection box is available, it can reduce the dust pollution. (Optional)

DATA SHEET

Applicable bottle shape :round,square plastic bottle

Filling material: Φ0~5#capsule,soft capsule,Φ5.5~12compressed tablet,special-shaped tablet,sugarcoated tablet,Φ3~12pillProduction capacity: 20~80 bottles per minute(It depends on the bottle size,filling quantity and the tablet size)

Setting range of bottling volume:1—9999

Power supply:AC220V 50Hz 0.6kw

Accuracy rate:>99.5%(higher than the industrial standard )

Air pressure:0.6Mpa

Overall dimension:950×1200×1500mm

Weight:380kg

Main technical parameters
Model APC-8A APC-12A APC-16A APC-24A APC-32A APC-48A
APC-8B APC-12B APC-16B APC-24B APC-32B APC-48B
Applicable Model A:0~5#capsule,soft capsule,Ф5.5~12 normal tablets,special shape tablets,coating tablets
Model B:00~5#capsule,soft capsule,Ф22normal tablets,special shape tablets,coating tablets,Ф3~20 pills
Capacity 10-30BMP 20-40BMP 20-80BMP 20-90BMP 40-120BMP 40-150BMP
Working range Adjust from 2-9999 per bottle
Power supply 220V/50HZ/0.6KW 220V/50HZ/0.8KW 220V/50HZ/01.2KW 220V/50HZ/1.5KW 220V/50HZ/2.2KW 220V/50HZ/2.5KW
Overall dimension 1360*1350*1650mm 1360*1350*1650mm 1360*1350*1650mm 1760*1350*1650mm 2160*1450*1650mm 2160*1350*1650mm
1360*1650*1650mm 1360*1650*1650mm 1760*1650*1650mm 1760*1650*1650mm 2160*1650*1650mm 2160*1650*1650mm
Weight 250kg 320kg 420kg 450kg 550kg 620kg
300kg 380kg 550kg 580kg 620kg 680kg
Remarks 1.Capacity is subjected to the type and the size of the bottles and tablets, as well as the quantity filled per bottle; 2.BPM= Bottles per minute

Configuration

NO Name  Manufacturer
1 Motor TQG(Taiwan)
2 See bottle of photoelectric sensor OMRON
3 Count the Photoelectric Head Adopt Everlight Electronics., Ltd
4 Pneumatic Components SMC
5 Switch button French schneider
6 man-machine interface  Adopt Delta-China(Siemens)
7 Main control chip Using imported STMicroelectronics ;co., LTD
8 The leakage switch Germany's Siemens
9 Switching power suppy French schneider
