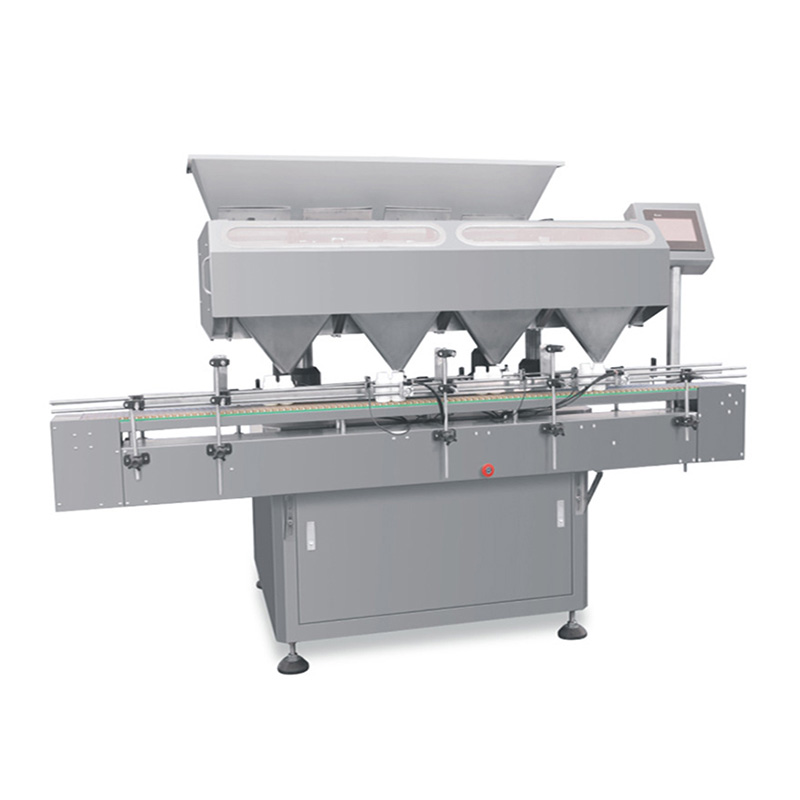

APC-48 Brand New Simple Operation Tablet Counting Machine

This pill counter machine is the important equipment for the production line of vial solid preparations. It is used for counting and split charging of the tablet including the shaped tablet, hard capsule, soft capsule (various shapes, transparent, nontransparent) and pill. It is able to combine with the vial distributing machine, paper stuffing machine, desiccant inserter, cap screwing machine, electromagnetic induction foil-sealing machine and self-adherence labeling machine to form full-automatic high-speed bottled production line. It has been widely used in the industries such as pharmacy, food, chemical engineering, etc., It is fully conforming to GMP certification requirements.

FEATURE

  1. Wide applicability,electronic tablet counter used for tablets (including abnormal tablets), capsules, gels (including abnormal gels, transparent gels and opaque gels) pills and most solid granules.
  2. 48 tunnels vibration feeding, special patent filling part, feeding evenly, no breakage of the material
  3. Anti-dust, using our own original high anti-dust sensor technology, the electronic tablet counter works accurately with good stability in heavy dust conditions.
  4. Count accurate: photoelectric sensor automatic counting and bottling error is less than the national standard
  5. Hopper mouth of the special structure, to prevent the materials jam, small mouth bottle can quickly bottling.(Optional)
  6. High-degree of electronic tablet counter, no bottle will not count and fill. Automatically remove bottles of filling abnormalities and a certain size broken tablets. Self-diagnose errors and stop working to make alarm at errors.
  7. Supporting functions: lack of bottle of photoelectric sensor automatically detection, automatically stop
  8. Easy to operate: Using intelligent design, in Chinese or Chinese-English menu, various operation parameters according to the need to set, can store 10 groups set parameters, in order to use
  9. Easy to Maintenance, workers can work with simple training, easy to remove,clean,change parts, and no need tools
  10. Sealing dust proof, with dust-remove box, reduce dust pollution.(Optional)

DATA SHEET

Product Name:APC-48

Application:

00-5# capsules, soft gels, φ5.5-22 normal tablets, φ3-20 pills

special shape tablets, coating tablets,and some other solid granules

Capacity:

40-150 BPM

Capacity is subject to the type and size of the bottles and raw materials, as well as the quantity filled per bottle.*BMP=Bottles per minute

Working Range:Adjustable from 1-9999 per bottle

Power supply and consumption:220V/50HZ  2.5kw

Size:2160×1350×1650mm

Filling error:≤ 2‰ bottles

Material:SS316+SS304

Control System:MCU

Pressed Air Supply:0.6 Mpa

Weight:350kg



Main technical parameters
Model APC-8A APC-12A APC-16A APC-24A APC-32A APC-48A
APC-8B APC-12B APC-16B APC-24B APC-32B APC-48B
Applicable Model A:0~5#capsule,soft capsule,Ф5.5~12 normal tablets,special shape tablets,coating tablets
Model B:00~5#capsule,soft capsule,Ф22normal tablets,special shape tablets,coating tablets,Ф3~20 pills
Capacity 10-30BMP 20-40BMP 20-80BMP 20-90BMP 40-120BMP 40-150BMP
Working range Adjust from 2-9999 per bottle
Power supply 220V/50HZ/0.6KW 220V/50HZ/0.8KW 220V/50HZ/01.2KW 220V/50HZ/1.5KW 220V/50HZ/2.2KW 220V/50HZ/2.5KW
Overall dimension 1360*1350*1650mm 1360*1350*1650mm 1360*1350*1650mm 1760*1350*1650mm 2160*1450*1650mm 2160*1350*1650mm
1360*1650*1650mm 1360*1650*1650mm 1760*1650*1650mm 1760*1650*1650mm 2160*1650*1650mm 2160*1650*1650mm
Weight 250kg 320kg 420kg 450kg 550kg 620kg
300kg 380kg 550kg 580kg 620kg 680kg
Remarks 1.Capacity is subjected to the type and the size of the bottles and tablets, as well as the quantity filled per bottle; 2.BPM= Bottles per minute

Configuration

NO Name  Manufacturer
1 Motor TQG(Taiwan)
2 See bottle of photoelectric sensor OMRON
3 Count the Photoelectric Head Adopt Everlight Electronics., Ltd
4 Pneumatic Components SMC
5 Switch button French schneider
6 man-machine interface Adopt Delta-China(Siemens)
7 Main control chip Using imported STMicroelectronics co., LTD
8 The leakage switch Germany's Siemens
9 Switching power suppy French schneider
