Improving Production Efficiency
According To GMP Requirements
PLC Control System

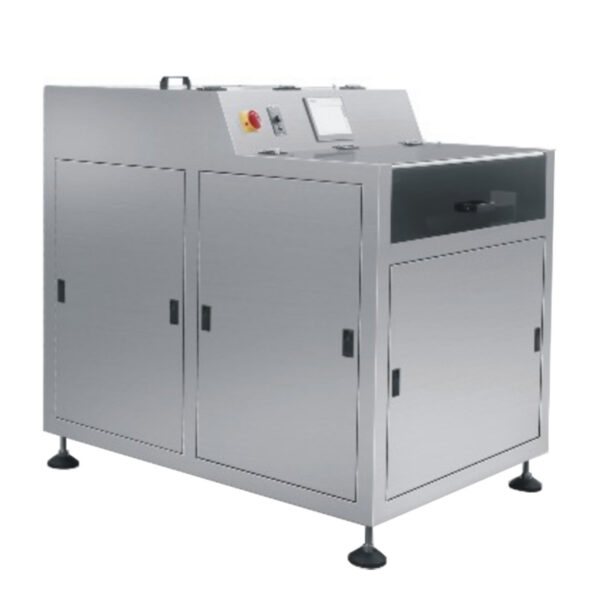

APC-A160B Automatic Bottle Unscrambler

APC-A160B Automatic bottle unscrambler its motor runs by the gear then it makes the neatening flower plate work.The bottles in the bottle container rotate from the under part to the upper part of the bottle neatening plate by the semicircle groove of the bottle neatening flower plate.The bottles in the semicircle groove neaten by the bottle turning board of the bottle neatening system.It can turn the bottles which are upside down automatically.

FEATURE

1.With a bottle of quantitative detection and control excessive overload protection device.

2.Frame and material barrel is made of high quality stainless steel material, beautiful appearance, in line with the GMP

requirements.

3.Don't need to use air bottle blowing, the use of automatic bottle body, and is equipped with a set bottle device, greatly improve production efficiency.

4.Simple operation：With intelligent design, various operating parameters can be set in advance.

5.Easy maintenance：The operator only requires simple training as the disassemble, cleaning and replacement of parts are easy to carry out with little of tools.

6.Sealed and dustproof：It is equipped with machine cover to reduce dust pollution.

7.The bottle arranging distance can be adjusted according to the bottle size.

8.The machine is equipped with a power supply voltage stabilizing system, so it can still work normally in areas with unstable power supply.

DATA SHEET

Model	APC-160B
Rate of production	40-120 bottles/min
Common type	round, some special square, flat square, special-shaped plastic bottles
Bottle specifications	15-300ml
Bottle diameter	φ20~φ100mm
Bottle height	40~180mm
Power supply	AC220V50/60Hz
Air pressure and consumption	0.6~0.8 MPa, 3.5 L/min
Power	0.6 Kw
Overall dimension(LWH)	1050mm1150mm1250mm
Machine weight	About 300 Kg
