• Added automatic defrosting function

  • Support to store 17 custom recipes

  • Small overall dimension

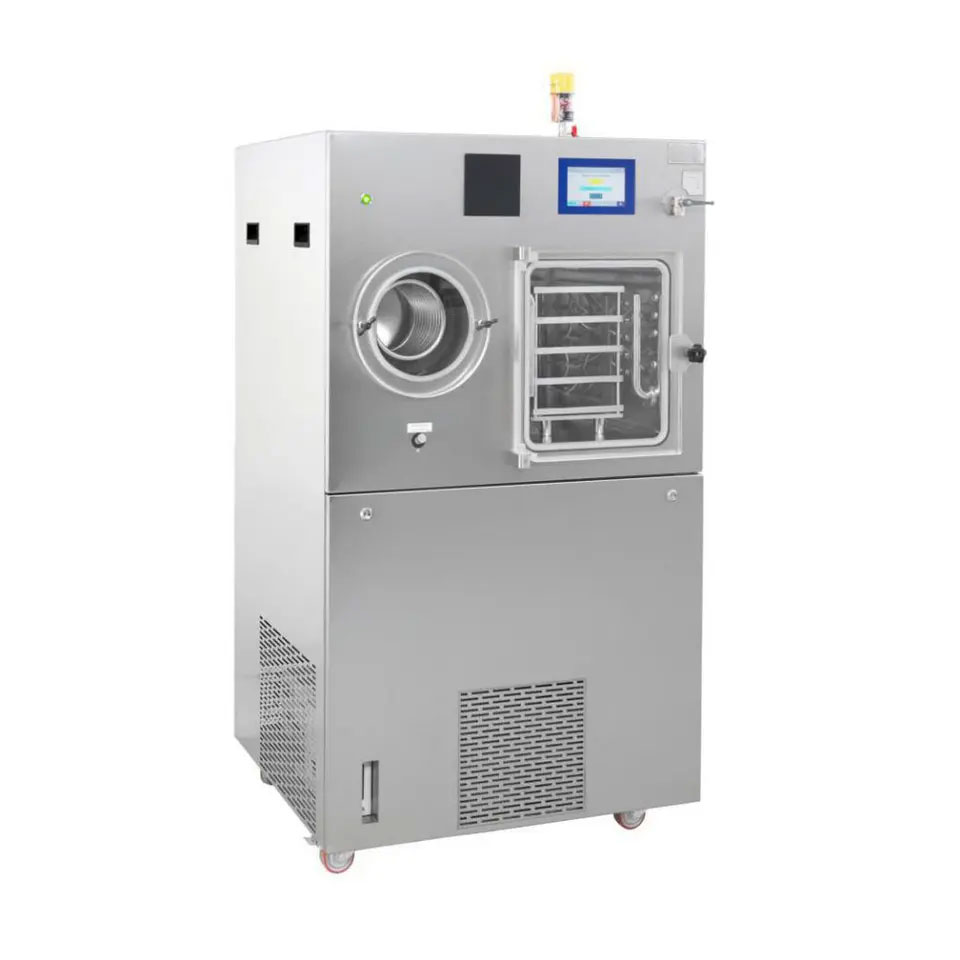

Small Mini Freeze Dryer Commercial Freeze Drying Machine Food Household Home Freeze Dryer

AIPAK small mini freeze dryer is an advanced method for the material de-watering. It has been very famous for its good results and special capturing water alternatively. It freezes the moisture material in the low temperature and makes the water inside sublimate directly in the vacuum condition. Then it collects the sublimated vapor by means of the condensing way so as to dewater and dry the material.

Being processed by the vacuum freeze drying, the physical, chemical and biological states of the material are basically unchanged. The volatile and nutritious contents in the material, which are easy to be denatured in a warm condition, will be lost a little. When the material is freezing dried, it will be formed into a porous one and its volume be basically the same to that before drying. Therefore, the processed material can be recovered quickly if being watered again, because of its large contacting area and it can be stored for a long period in a sealed vessel.

AIPAK Mini Freeze Dryer Sample:

Mini Freeze Dryer Sample

FEATURE

1.Advanced technology& structure, adopts a solid construction with a small occupied area and convenient installation and transportation.

2.Its operation can be controlled by hand, automatic program or computer. It will be more reliable if being equipped with the unit.

DATA SHEET

Freeze-dried area
0.4m2
Condenser temperature
≤-45 ℃ (no load)
Water catching capacity
≥ 4 kg/24h
Evacuation rate
2L/S
Ultimate vacuum
≤ 10 Pa (no load)
Number of partitions
4 +1
Diaphragm size
540*200mm
Partition spacing
40mm
Fresh material treatment capacity
4-5L (liquid)
Power supply
AC220V, 50Hz
Whole machine power
2kw
Overall dimensions
510x700x670mm
Main engine weight
About 80Kg
