Small for damaging the surface of raw material
Adopts full sealed structure
Effective to prevent from cross pollution
Want A Free Consultation

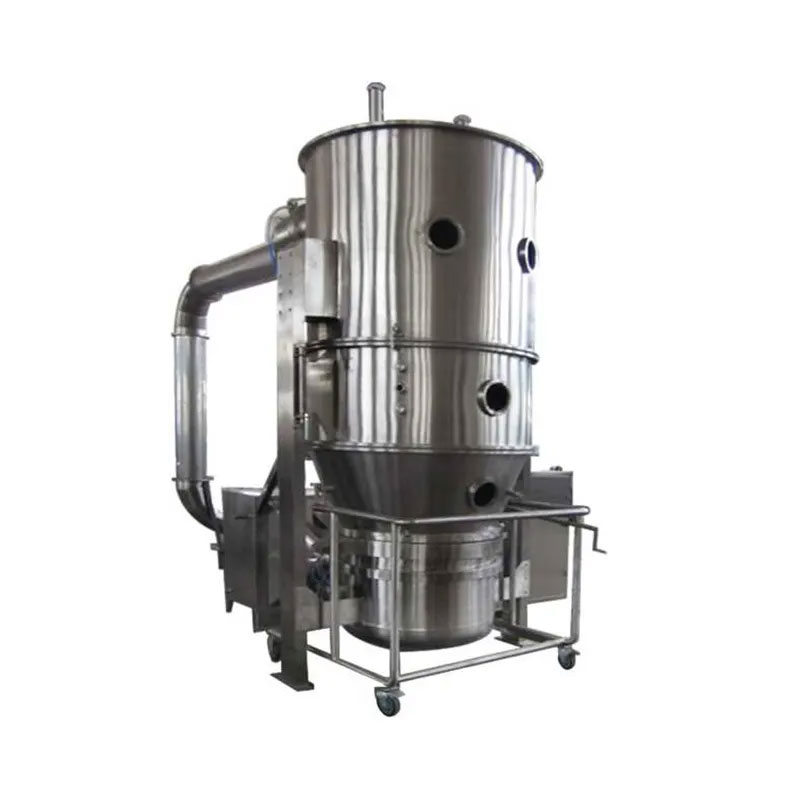

FL-120 Vertical Continuous Vibrating Fluid Bed Dryer Drying Machine For Sugar Salt Detergent Powder
AIPAK FL-120 vibrating fluid bed dryer is mainly used for the operations of mixing, granulating, drying and coating of granule “Top Spraying”, etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.The vibrating fluid bed dryer for pharmaceutical rests with maintaining evenness and recurrence of product quality, which reflects an ideal balance between production efficiency and product quality. In the process of fluidization, the materials floats above the air, with surface in full contact with the heated air,and the materials therefore is evenly eated and reaches an ideal state for heat exchange thus to have a high efficiency.Configurated with proper spraying system and through further structural improvement, the vibrating fluid bed dryer then becomes a multi-purpose processing facility in combined functions of drying, granulating, solution coating, and powder dressing.
FL-120 Vibrating Fluid Bed Dryer Application:
FEATURE
- Mixing-granulator-dryer in one-step.
- Adopting double chamber filtering bags system, removing dust completely.
- Adopting multi-fluid nozzle, it gurantees that the formed granule is uniform and the content of powder is very low.
- Can choose two bars explosion-proof design.
- Designed, manufactured and laid out.
DATA SHEET
|
Model
|
5
|
30
|
60
|
120
|
200
|
300
|
500
|
|
Capacity(kg/batch)
|
5
|
30
|
30
|
120
|
200
|
300
|
500
|
|
Material yield rate(%)
|
>/=99%
|
||||||
|
Qualified rate(%)
|
<=85%
|
||||||
|
Container Volume(L)
|
22
|
100
|
220
|
420
|
670
|
1000
|
500
|
|
Diameter(mm)
|
500
|
700
|
1000
|
1200
|
1400
|
1600
|
1800
|
|
Power of Fan(Kw)
|
3
|
7.5
|
11
|
18.5
|
22
|
30
|
45
|
|
Liquid Feed Power(Kw)
|
0.37
|
||||||
|
Pressure of Steam(MPa)
|
0.4~0.6
|
||||||
|
Consumption Steam(Kg/h)
|
18
|
60
|
120
|
140
|
180
|
310
|
400
|
|
Compress Air Pressure( MPa)
|
0.4~0.6
|
||||||
|
Consumption of Air(m3/min)
|
0.3
|
0.9
|
0.9
|
0.9
|
1.1
|
1.1
|
1.5
|
|
Working Temperature C
|
Room temperature~120C adjustable
|
||||||
|
Noisy(dB)
|
Installed separated with fan
|
||||||
